Setting Jumpers A-5
A.4
Remove the Floppy Disk Enclosure
To access the jumpers, remove the floppy disk drive enclosure.

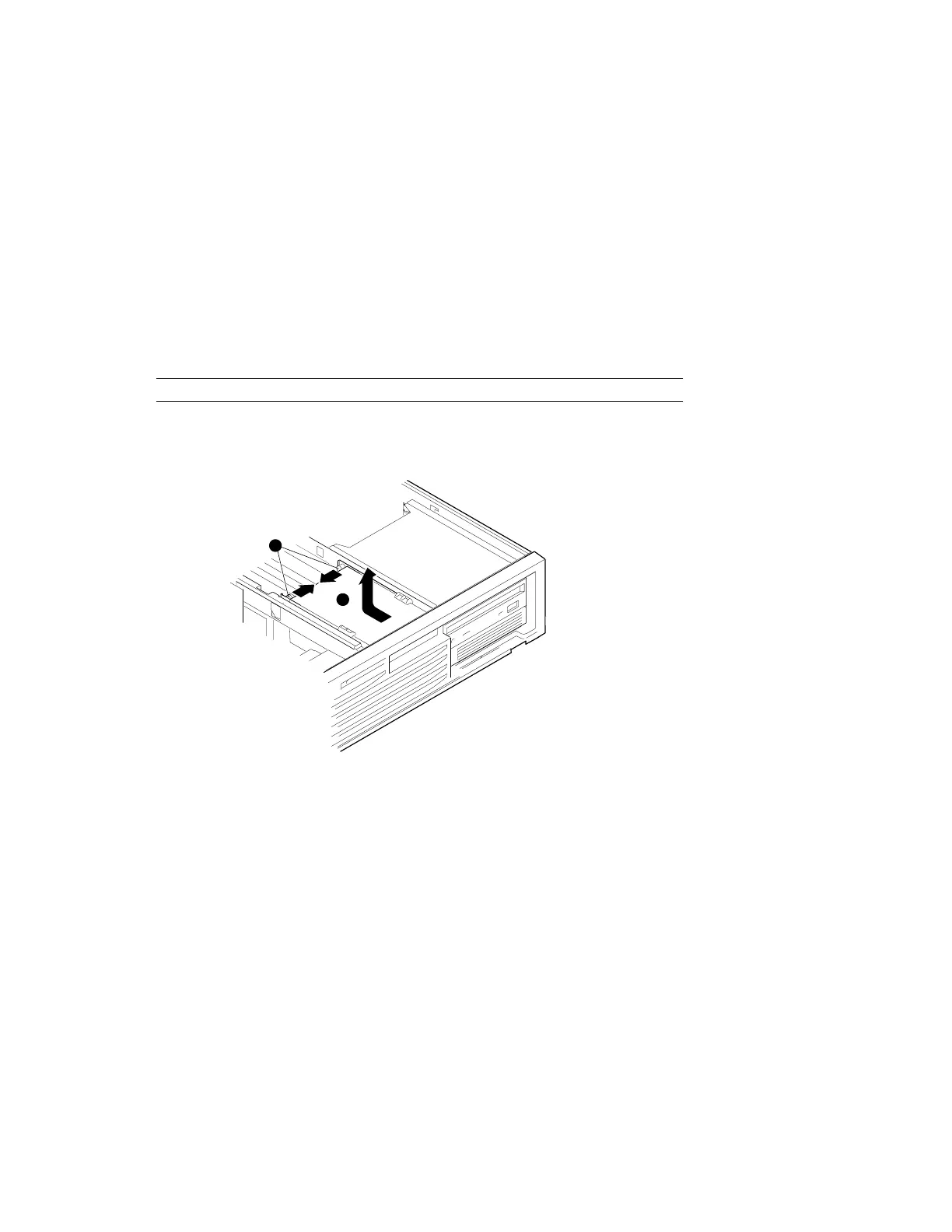

Figure A–3 Removing the Floppy Disk Enclosure
1
2
PK1018-99
1.
Hold on to the cylinder pins, which secure the floppy disk enclosure. Pull
the pins toward the center (see Figure A–3
➊).
2.
Pull the floppy drive unit back and up
➋.
3.
Place the unit on top of the CD-ROM drive. You do not need to remove the
cables. Cable lengths have been designed to move the unit out of the way
without disconnecting.
