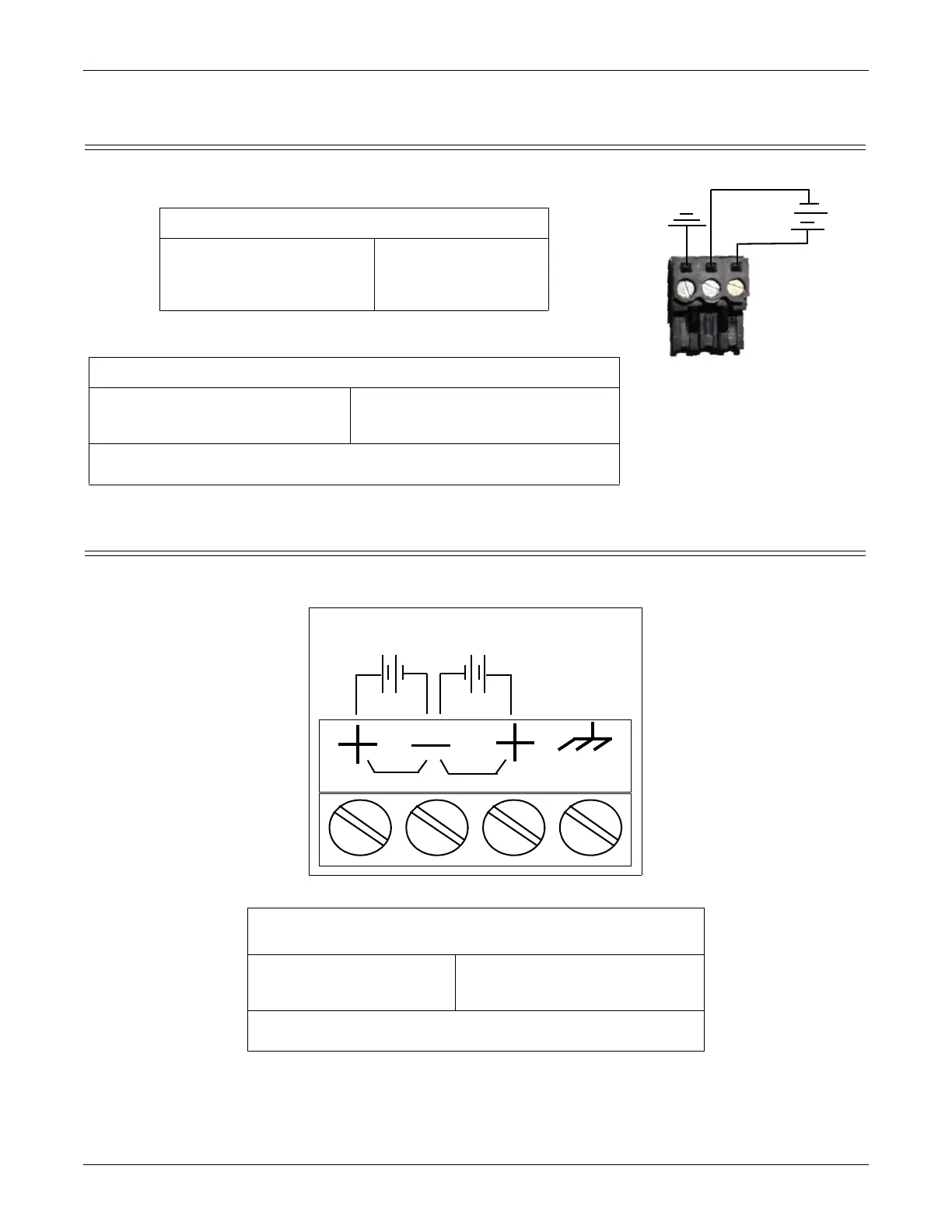

External Power Supply Specifications
1-Port Panel Mount 5-30VDC Power Supply
This table provides specifications for the optional power supply from
Comtrol.
This table provides the specifications, if you intend on using your own
power supply.
DM-2101 and DM-2201: 1-Port DIN Rail Power Supply
This table provides the specifications to purchase a power supply for a DeviceMaster DM-2101 and DM-2201
1-port DIN rail.
This table provides the specifications, if you intend on using your own power supply.
Comtrol Power Supply: 1-Port 5-30VDC
Input line frequency
Input line voltage
Output voltage
Output current
43-63 Hz
90-260 VAC
24VDC
500 mA @ 24VDC
Comtrol device 1-Port 5-30VDC External Power Supply
Output voltage†
Current†
Power
5-30VDC
100 mA (Min) @ 24VDC
2.5 W
† Any power supply that meets current consumption, voltage, power, and
connector pin outs requirements can be used.
DeviceMaster DM-2101 and DM-2201
1-Port DIN Rail External Power Supply
Output voltage†
Current†
Power
5-30VDC
100 mA (Min) @ 24VDC
2.5 W
† Any power supply that meets current consumption, voltage,
power, and connector pin outs requirements can be used.
Earth Gnd
Return
Positive
5-30VDC
+
-
Wire gauge:
AWG 12-22
Screw Terminal Connector
† Wire gauge: AWG 12-22
PW1
PW2
Chassis
Ground†
Return†
Positive†Positive†
5-30VDC 5-30VDC
