External Power Supply Specifications
DM-2102 and DM-2302: 2-Port DB9 Power Supply (Top)
This table provides the specifications to purchase a power supply for a DeviceMaster DM-2102 and DM-2302
2-port DB9 DIN rail.
Note: The power supply for this model is on the top of the unit. The product serial numbers are above xxxx-
030000, where xxxx is the first four digits of the serial number.
This table provides specifications if you intend on using your own power supply.
DM-2102 and DM-2302: 2-Port DIN Rail
External Power Supply
Output voltage†
Current†
Power
5-30VDC
100 mA (Min) @ 24VDC
2.5 W
† Any power supply that meets current consumption, voltage,
power, and connector pin outs requirements can be used.
† Wire gauge: AWG 12-22

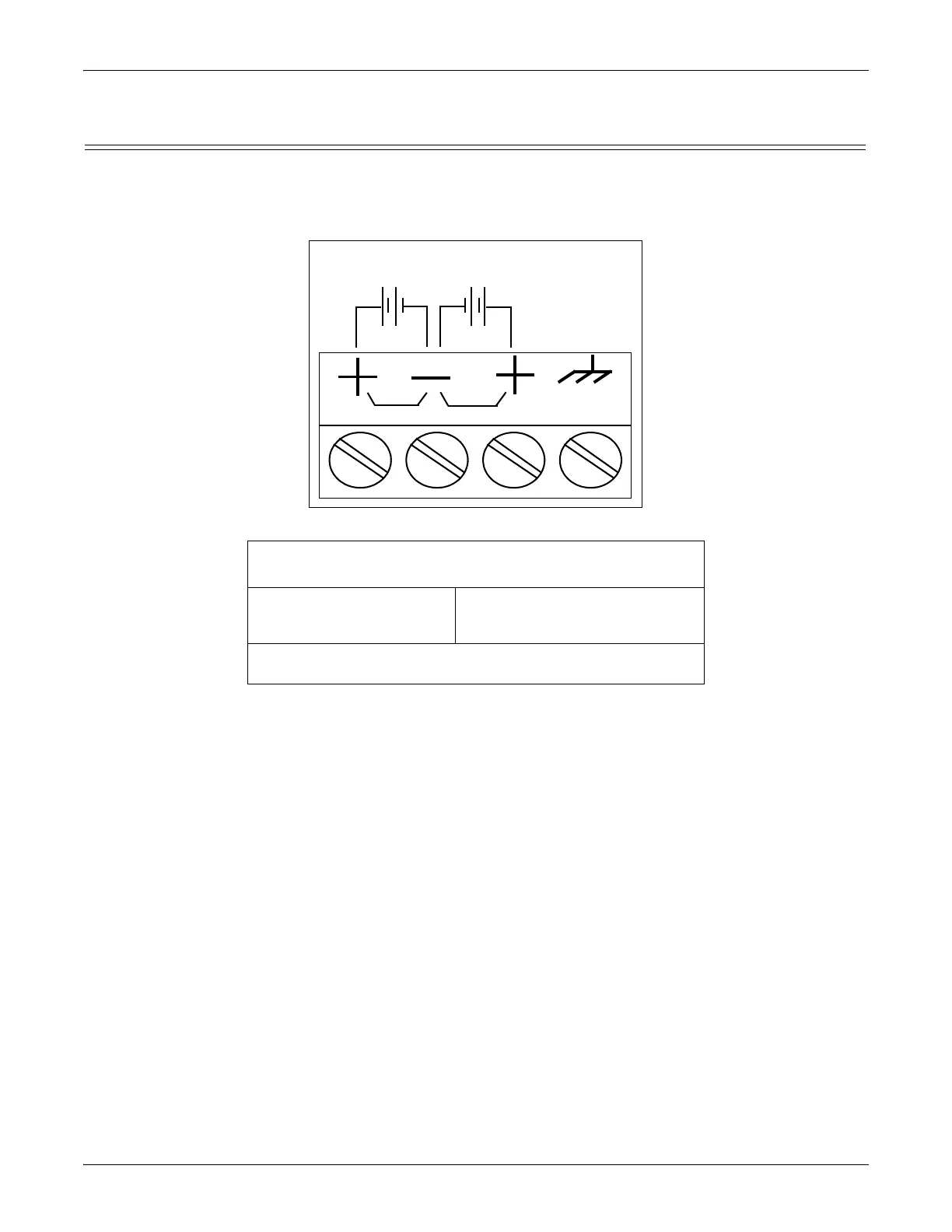

PW1
PW2
Chassis
Ground†
Return†
Positive†Positive†
5-30VDC 5-30VDC
