24 - Hardware Installation DeviceMaster Installation and Configuration Guide: 2000594 Rev. F
Hardware Installation
4. Verify that the PWR LED has completed the boot cycle and the network connection for the DeviceMaster
is functioning properly.
Do not connect RS-422/485 devices until the IP address is configured and an appropriate
port interface type has been configured. The default port setting is RS-232.
5. Go to Initial Configuration on Page 33 to configure the DeviceMaster for use.

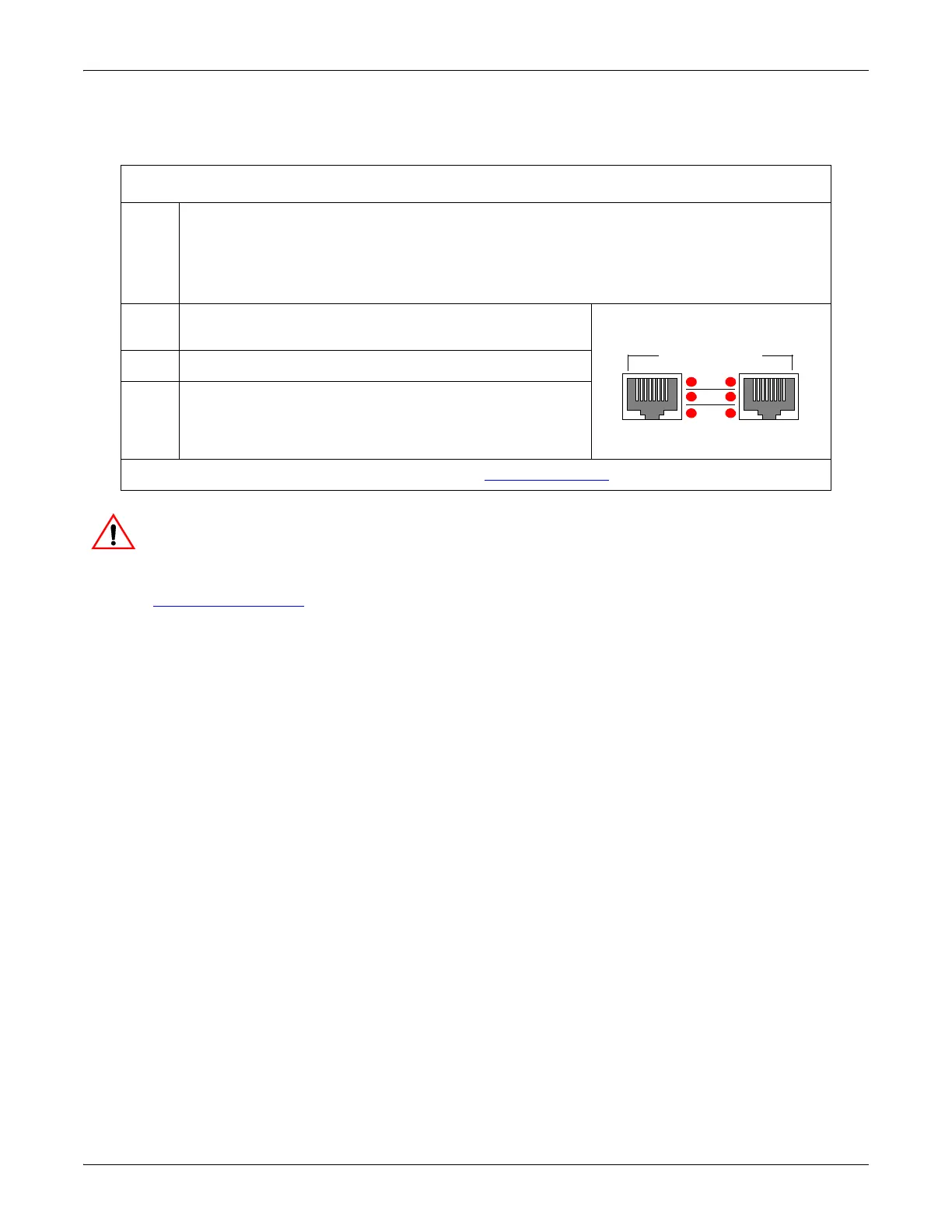

4-Port and 8-Port LED Descriptions
PWR
LED on the front panel of the DeviceMaster is lit, indicating you have power and it has
completed the boot cycle.
Note: The PWR LED flashes while booting and it takes approximately 15 seconds for the
Bootloader to complete the cycle. When the Bootloader completes the cycle, the LED
has a solid, steady light that blinks approximately every 10 seconds.
LNK
ACT
The red LNK ACT LED is lit, indicating that you have
a working Ethernet connection.
COL If the red COL LED is lit, there is a network collision.
100
If the red 100 LED is lit, it indicates a working 100 MB
Ethernet connection (100 MB network, only). If the
LED is not lit, it indicates a 10 MB Ethernet
connection.
Note: For additional LED information, go to the Status LED table on Page 148.
LNK
ACT
COL
100
10/100 NETWORK
UP DOWN
