Maintenance 7-16
Replacing the Scanner Lamp-unit:
On Scanners:
1.
Turn the scanner power off and disconnect the power plug.
2. The lamp cover is on the top right edge of the scanner.
3. Grasp the cover on each side with both hands and pull back to detach.
4. Lift the cover upwards to free it from the scanner.
5. You must replace the whole lamp-unit. A lamp-unit consists of a lamp mounted in a reflector
brace and fixed power connectors.
6. Grasp the edge of the lamp-unit and carefully pull it out of the scanner.
7. Reinsert the new lamp-unit. Rest the power-connector side on the slider and carefully push
the lamp-unit into the scanner.
8. Insert the lamp-unit all the way so the internal power connections engage with the
connections on the lamp-unit.
9.
Replace the lamp cover on the scanner - fit the bottom notches in the holes and snap
the cover shut. The cover must always be closed before turning scanner power ON.
10. Test the replacement by turning power and scanner on to see if the lamp lights.
11. Reset the part replacement counter that triggers the warning flag – Go to Menu button >
Advanced > Options > Service.
Press the arrow down button to reach Reset Lamp Cnt., press
Enter
and use the arrow
down to select Yes. Confirm with Enter.

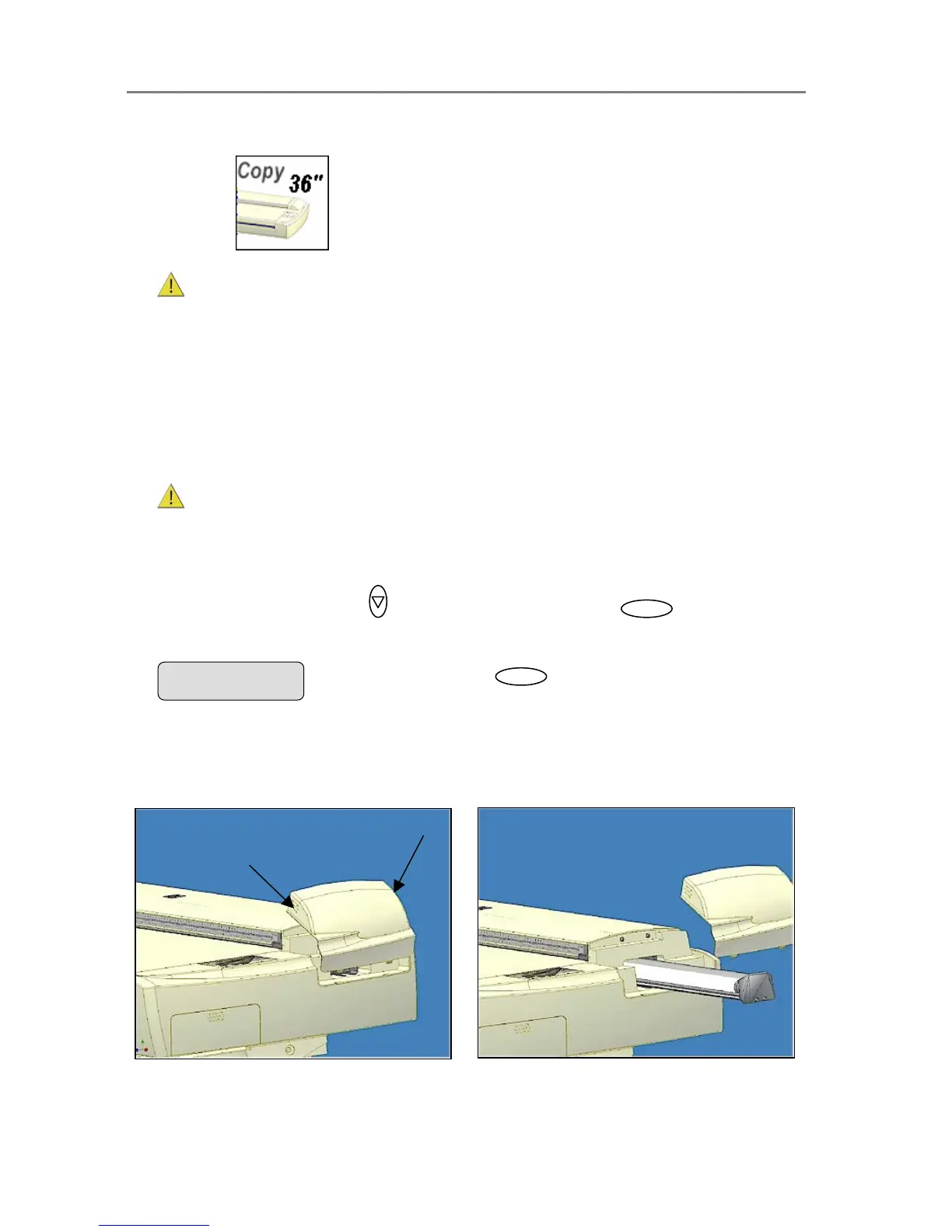

To replace the lamp-unit:
The lamp cover is on the right side of the scanner.
Grasp the cover on both sides, pull back and then
up to detach.
Free the cover from the scanner. Pull out the lamp-unit
and insert the new one.
Press
Enter
to confirm reseting
the lamp part replacement counter
Reset Lamp Cnt.
