9.1 COTI machines
There are three sizes of pipe used of which 1 & 3 can be replaced by the Operator:
 CoEx® Espresso Brewer = 4mm white silicone
 Hot water = 8mm grey silicone
 Mixing bowls = 6mm grey silicone
To replace pipes
1. Open cabinet door and extend the delivery head by pressing 8 on the service keypad.

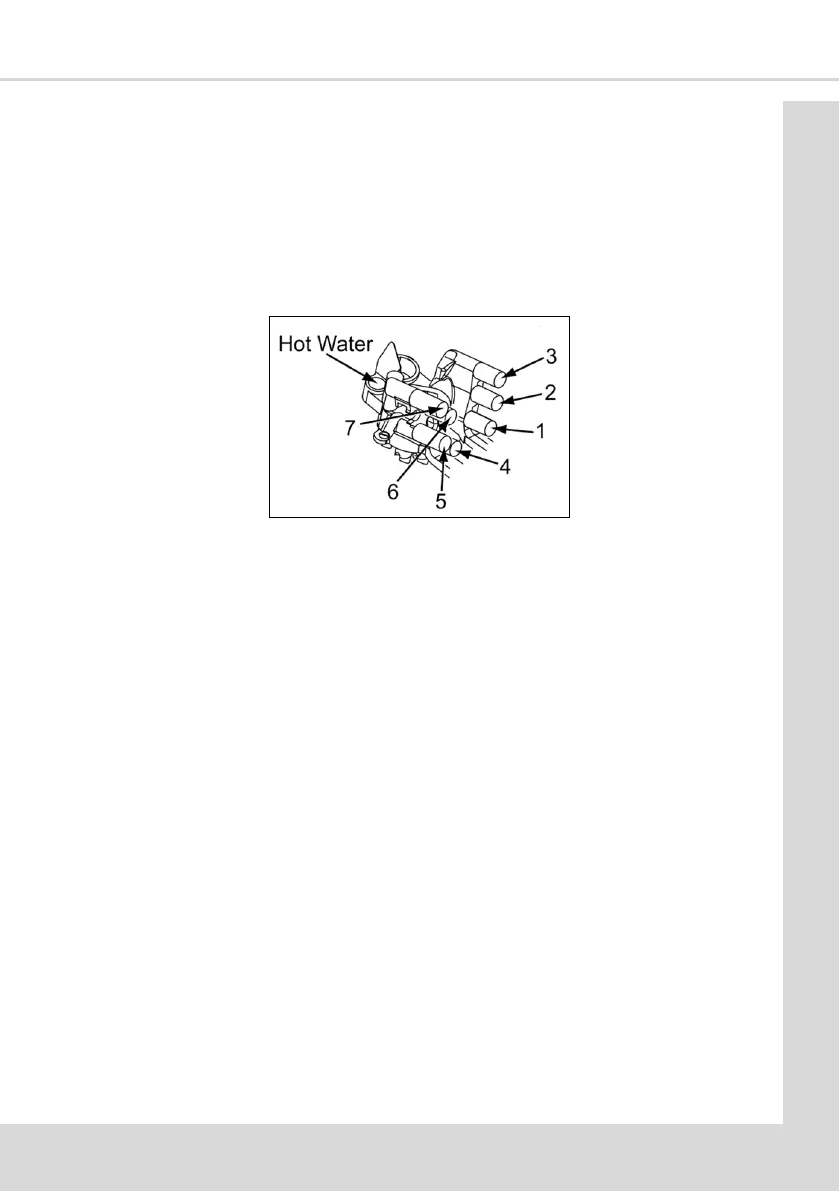

2. Using the above informaon about pipe size, connect the pipes to the dispense head.
3. The pipes should be cut to such lengths that when the head is in it’s extended posion
they are not too taut and the pipe doesn’t sag below the delivery head
Note: Soup must always be connected to posion 1 or 4
