CPI COTI - Diagnostics

Secon 5 - Engineer’s Program
Technical Manual
3. Details of when the Last Data Clear, Last Vend, Last Clock Set and the Last Price
Change were performed are display directly on this screen.
5.3.5 SureVend
TM
This screen displays details of SureVend
TM
acvies.
1. The totals of Cup Drop Failures and SV Assisted vends are displayed directly on the
screen.
2. An opon to Clear Data is available to reset the totals, to prevent errors a conrmaon
is required before the data is reset.
5.4 Diagnoscs
Should a fault occur within the machine the error is logged and a message is displayed. Some
errors may cause the machine to be inoperable.
5.4.1 Acve Errors
This details all the acve errors, lisng them in a table under the headings: a descripon of
the error Event and the Time and Date,
Note: refer to Secon 10.1 Diagnoscs for the complete list of error messages.
5.4.2 Errors History
This displays a table of all the acve errors.
1. Any currently Acve Errors are displayed on screen with the ability to view the fault
details (Event Id, Time and Date) in a table.
2. Any corrected errors will be shown in Errors History. There is the opon to Clear
History from the table, to prevent them being cleared accidentally a conrmaon is
required before the data is reset.
Note: Refer to Secon 10.1 Diagnoscs for a list of error messages.
5.4.3 MDB Logging
When enabled this feature allows a log to be taken of some of the MDB data which can
then be sent to the Chippenham oce for an in depth analysis.
A log is taken by inserng a USB (on which you have created a folder named “logs” in the
root menu) into the USB3 socket on the atlas board. When the log has been downloaded

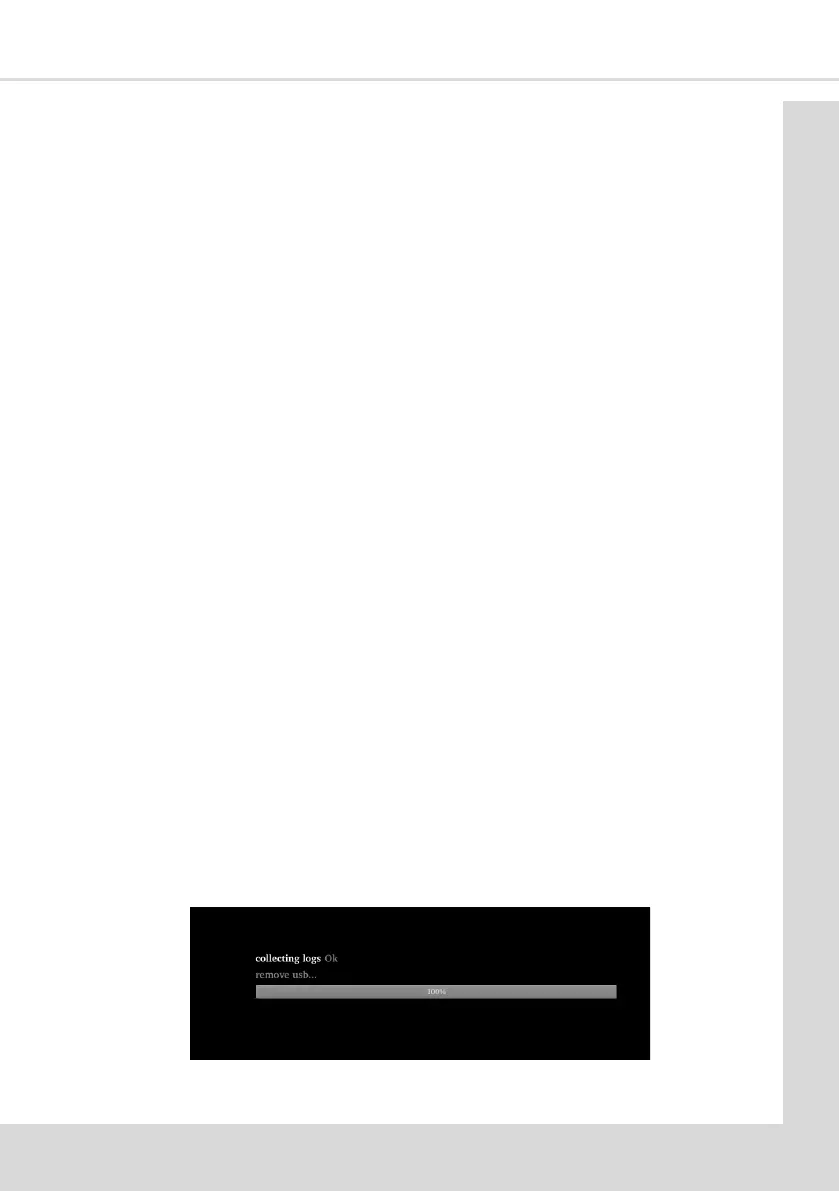

onto the sck you will see the screen below and should remove the USB sck.
Note: THE DEBUG LOG ENABLE OPTION IN THE SERVICE MENU MUST ALSO BE ENABLED
FOR AN MDB LOG TO BE TAKEN.
