Secon 1 - Machine Specicaons
Technical Manual

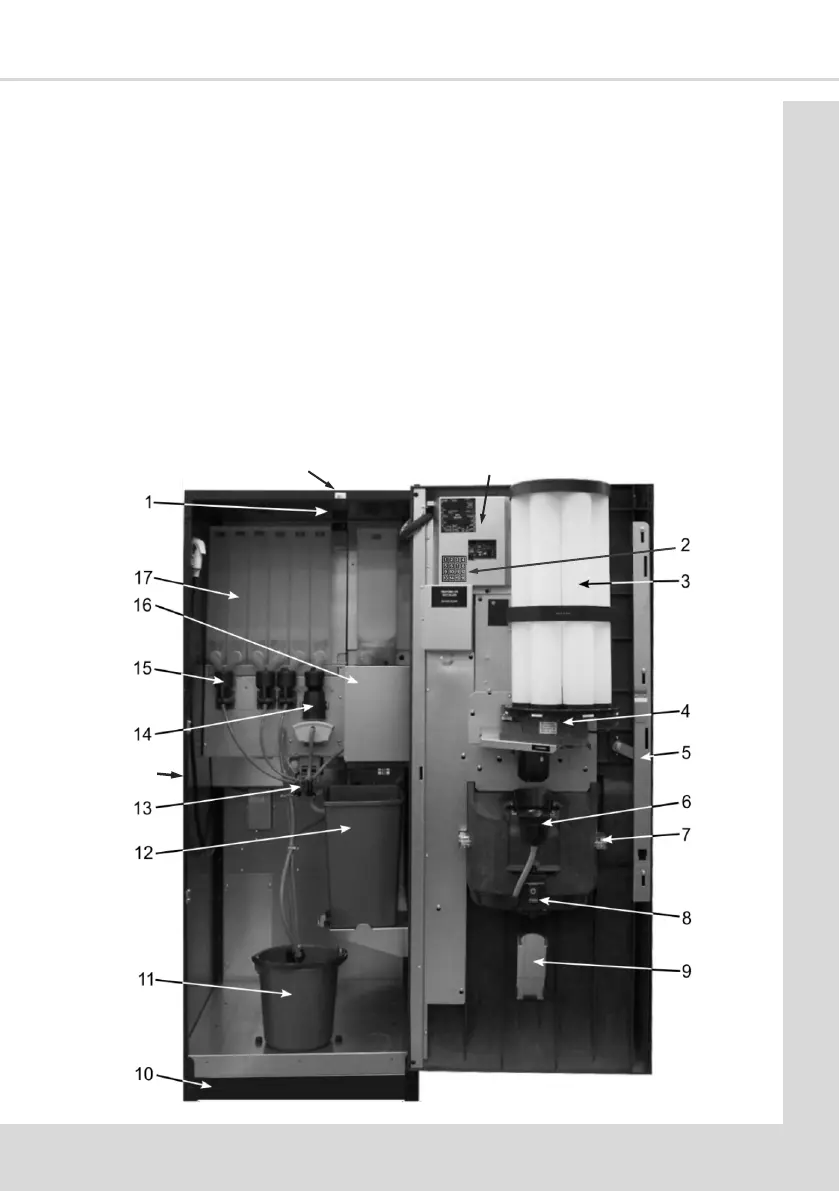

Key:
1 Main Power Switch 11 Waste Bucket (liquids)
2 Service Keypad 12 Waste Bucket (solids)
3 Cup Turret
13
Dispense Head
4 Cup Drop Unit
14
Oltre Brewer Unit
5 Door Locking Mechanism
15
Mixer
6 Cup Catcher
16
CoEx® Brewer Unit
7 Surevend
TM
Sensor
17
Ingredient Canisters
8 Drip Tray 18 Door Switch
9 Drip Catcher 19 Control Board
10 Kick Plate 20 Canister Fill Bracket
1.6 Internal Features - COTI
18
19
20
5
