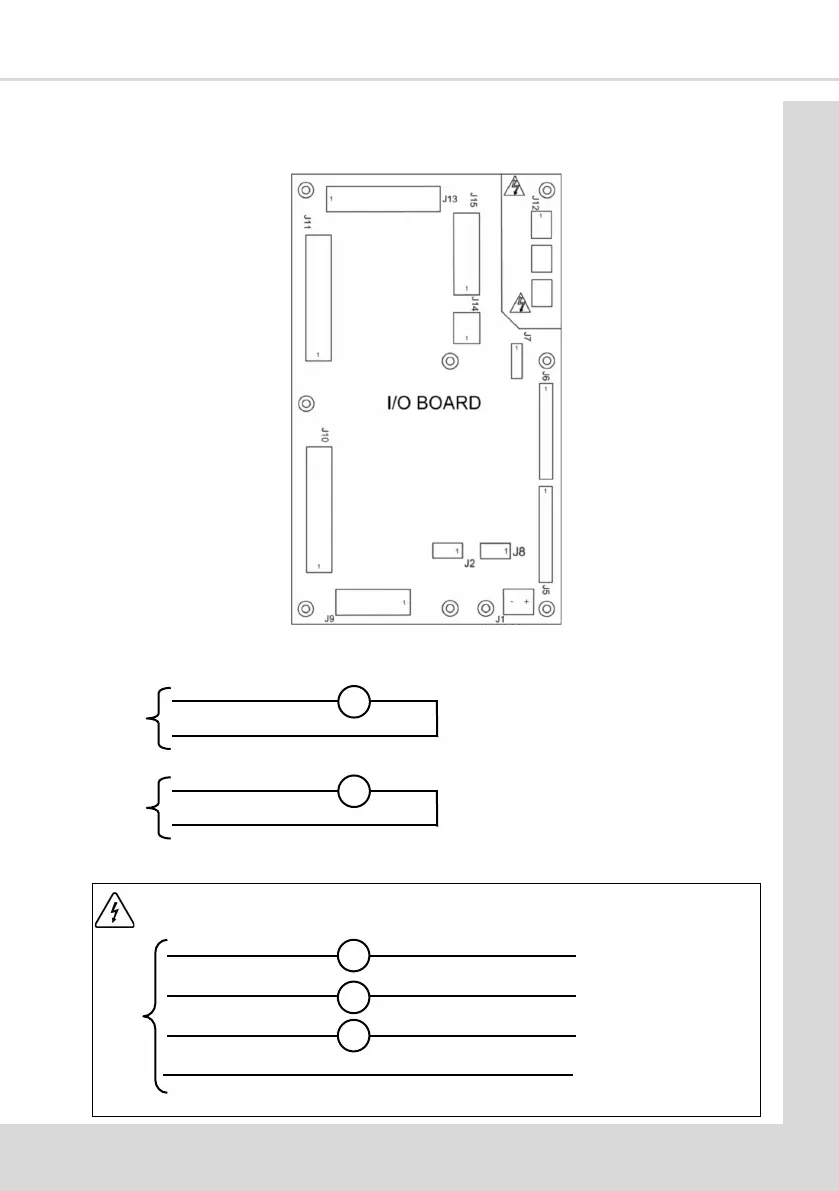

11.13 Output Circuit 2 - COTI

J14

8 RED / ORANGE

ORANGE / BLACK

B2C (CoEx®) MOTOR

J15

8 ORANGE / PINK

WHITE

B2C (CoEx®) MOTOR

J12

7 BLUE / WHITE

3 BLUE / VIOLET

B2C (CoEx®) PUMP 1

RED (LIVE, HIGH VOLTAGE)

B2C (CoEx®) GRINDER MOTOR

RED (LIVE, HIGH VOLTAGE)

BLUE / YELLOW 11

NEUTRAL

3 BLUE / GREY

B2C (CoEx®) PUMP 2

RED (LIVE, HIGH VOLTAGE)

MAINS VOLTAGE
