Secon 11 - Electrical / Electronic Diagrams

Technical Manual

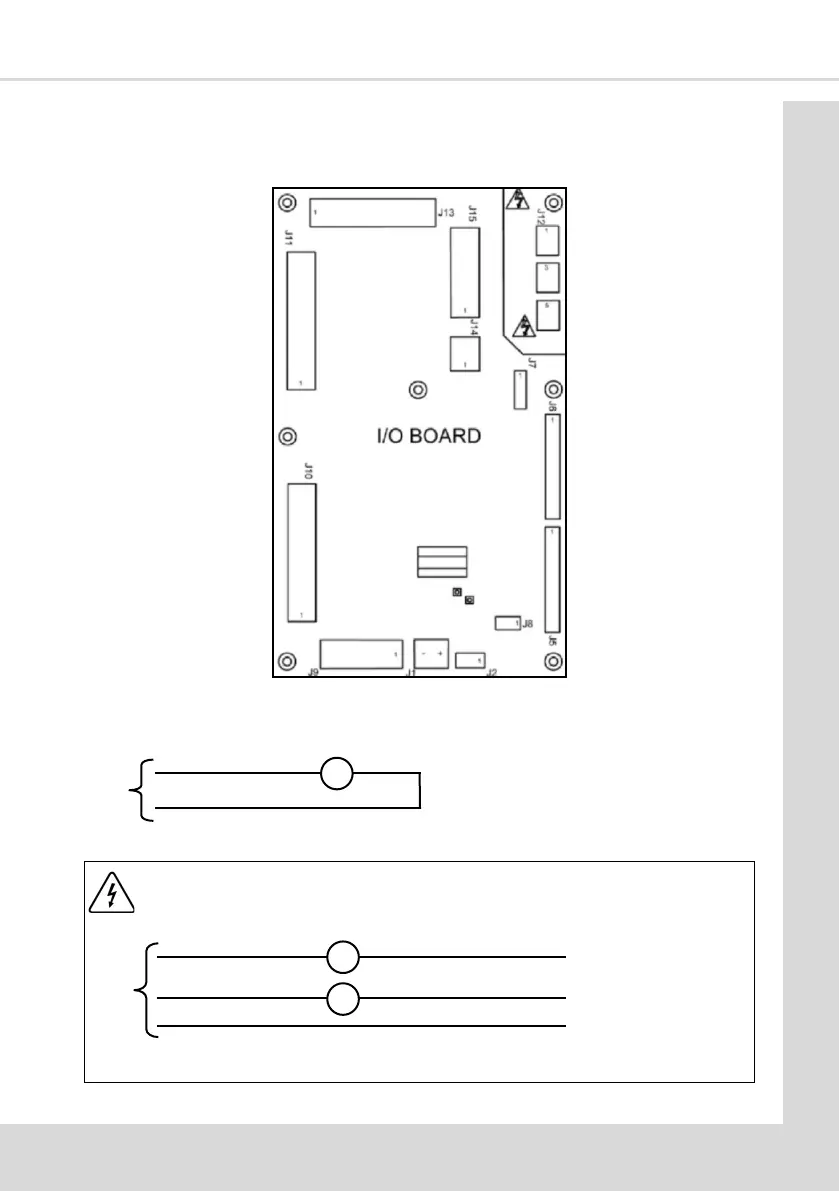

11.15 Output Circuit 2 - LINEA

J15

8 ORANGE/BLACK

M

ORANGE/RED

B2C (CoEx®) MOTOR

7

MAINS VOLTAGE

J12

3 BLUE / VIOLET

P

BLUE / YELLOW

B2C (CoEx®) PUMP 1

11

7 BLUE / GREY

RED (LIVE, HIGH VOLTAGE)

NEUTRAL

B2C (CoEx®) GRINDER MOTOR

RED (LIVE, HIGH VOLTAGE)

M

149

Table of Contents

Table of Contents7
Section 1 - Machine Specifications11
- Specifications - COTI11
- Specifications - LINEA12
- Water Filter12
- External Features - COTI13
- External Features - LINEA14
- Internal Features - COTI15
- Internal Features - LINEA16
Section 2 - Installation17
- Siting Your Machine17
- Connecting the Water Supply18
- Connecting the Electrical Supply19
- Commissioning Procedure21
- Cup Drop Unit Set up24
Section 3 - Navigation and Programming Mode25
- Service Menu Entry: COTI25
- Service Menu Entry: LINEA26
- Program Entry27
- Navigating through the Menu Display27
- Entering or Updating Parameters28
Section 4 - Customising the User Interface31
- Images31
- Image Locations / Screens - COTI32
- Image Locations / Screens - LINEA34
- USB Stick Content36
- Copy USB Stick Content37
- Select the Images for Display38
- Remove Content from Machine40
- Edit Product Name and Description41
- Configure Generic Content43
- Standby Screen43
- Monetary Advert49
- Allergens49
- Nutrition Info53
- ADA Mode - COTI54
- Menu Setup56
- Language56
- Currency Setup56
- Low Change Message56
- Custom Selection Names56
- Price56
- Screen Brightness56
Section 5 - Engineer's Program57
- Menu Overview57
- Main Menu63
- Data Recall63
- Diagnostics69
- Test70
- Price75
- Product Configuration79
- Menu Setup94
- Free Vend96
- Money96
- System Settings102
- Security Codes109
- Timed Events110
- Telemetry113
- Leave Service Application116
- Machine Reboot116
Section 6 - Service Keypad Functions117
- Key Functions - COTI117
- Service Menu Touch Screen - LINEA120
Section 7 - Technical Information121
- Water Services121
- Hot Water System121
- Ingredient Dispense121
- Mixing System122
- Moving Dispense Head: COTI122
- Cup Dispense Unit: COTI122
- Waste Level Probes123
- Coex® Brewer123
- Oltre Brewer123
- Power Supply Units124
- Mains Filter124
- Coin Mechanism Transformer (Optional Extra)124
- Coin Mechanism / Bill Validator125
- Card/Key System125
Section 8 - Espresso System126
- Example Vend126
- System Overview126
Section 9- Dispense Pipes129
- Freestanding Machines129
- Linea130
Section 10 - Diagnostics and Maintenance Procedures131
- Diagnostic Messages131
- Gravity Heater Tank De-Scale Procedure137
- Espresso System Drain down137
- Coex® Brewer/Bean Grinder Maintenance138
Section 11 - Electrical/Electronics Information144
- Touch Screen - COTI144
- Touch Screen - LINEA145
- Control Board - Atlas H146
- Atlas H Board Connections - COTI147
- Atlas H Board Connections - LINEA149
- I/O Board - COTI151
- I/O Board - LINEA151
- Input Circuit 1- COTI152
Input Circuit 2 - COTI153
Input Circuit 1- LINEA154
Input Circuit 2 - LINEA155
Output Circuit 1 - COTI156
Output Circuit 2 - COTI157
Output Circuit 1 - LINEA158
Output Circuit 2 - LINEA159
Power Circuit - COTI Instant & Freshbrew160
Power Circuit - COTI Espresso161
Power Circuit - LINEA Instant & Freshbrew162
Power Circuit - LINEA Espresso163
Heater Circuit - COTI164
Heater Circuit - LINEA165
FCC Statement166
