CPI COTI - Cup Drop Unit Set up

Secon 2 - Installaon
2.5 COTI - Cup Drop Unit Set up:
Follow these instrucons to correctly set up the cup drop unit to deliver the cup size used.

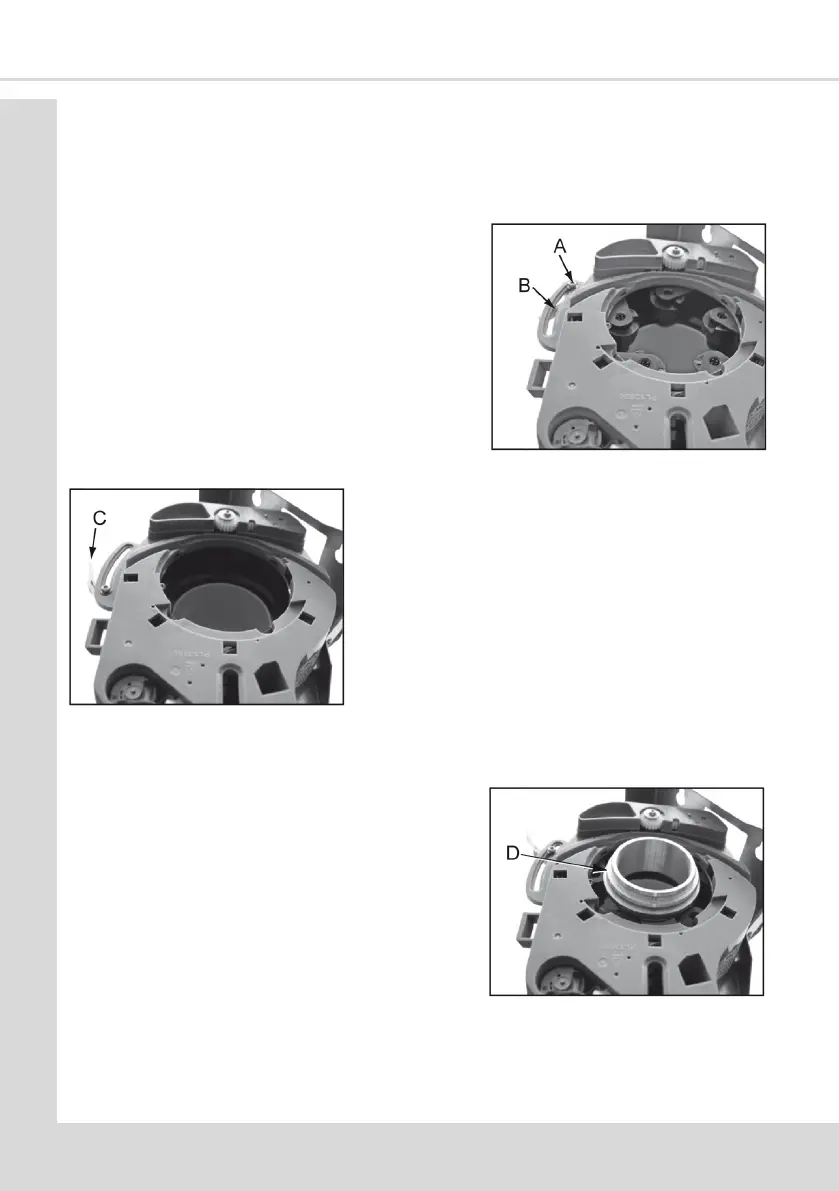

Using a T20 driver loosen locking screw (A) and
rotate green locking lever (B) clockwise.
Slide the locking lever (C) unl the scrolls are in their
widest posion.
Select the correct step on seng tool (D) and using
the locking lever, close the scrolls unl they rmly
grip the seng tool. Rotate locking lever an-
clockwise and ghten locking screw ensuring lever
does not move.
Remove seng tool, place cup in throat and ensure
that it is supported evenly on its rim.
