CPI COTI - Control Board - Atlas H

Secon 11 - Electrical / Electronic Diagrams

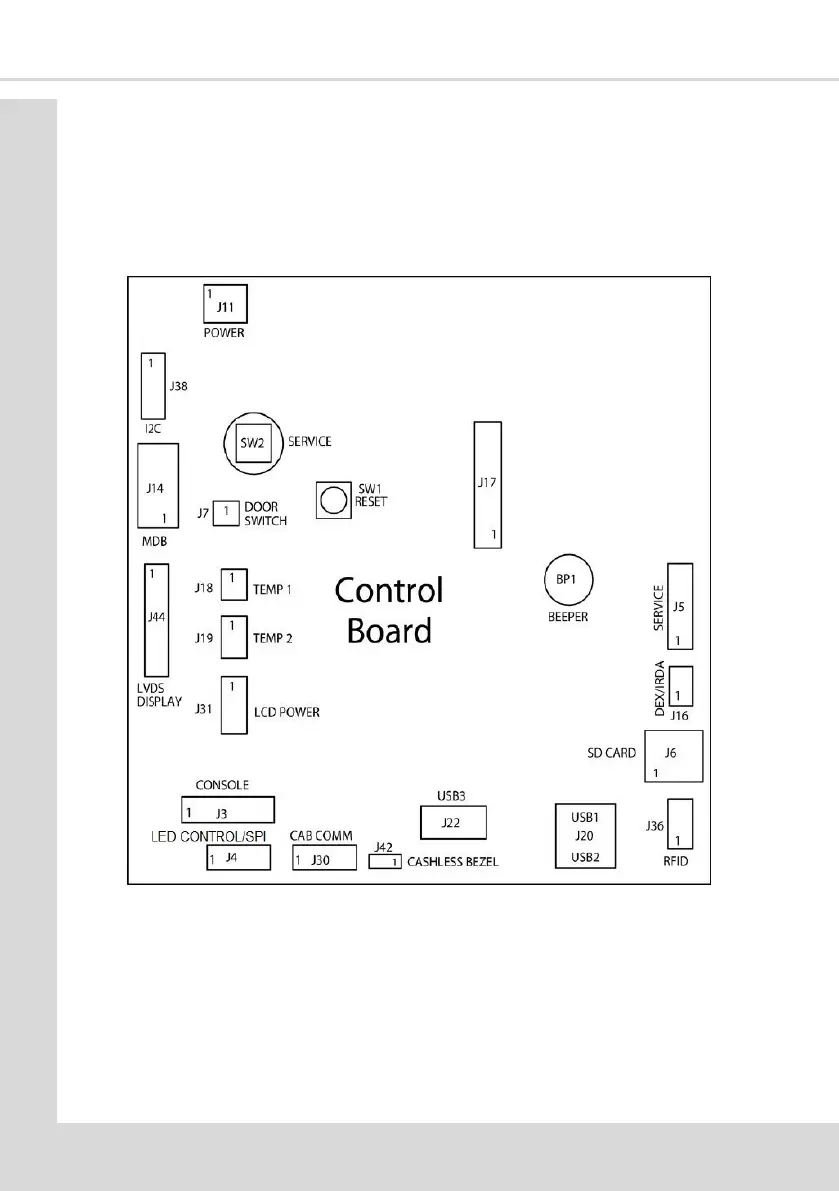

11.3 Control Board - Atlas H
The Control Board is the main controller for all of the machines funcons. The board is
located inside the door. To gain access to the board:-
1. To access switch o the power to the machine and open the front door. Loosen the
securing screws and remove the cover.
