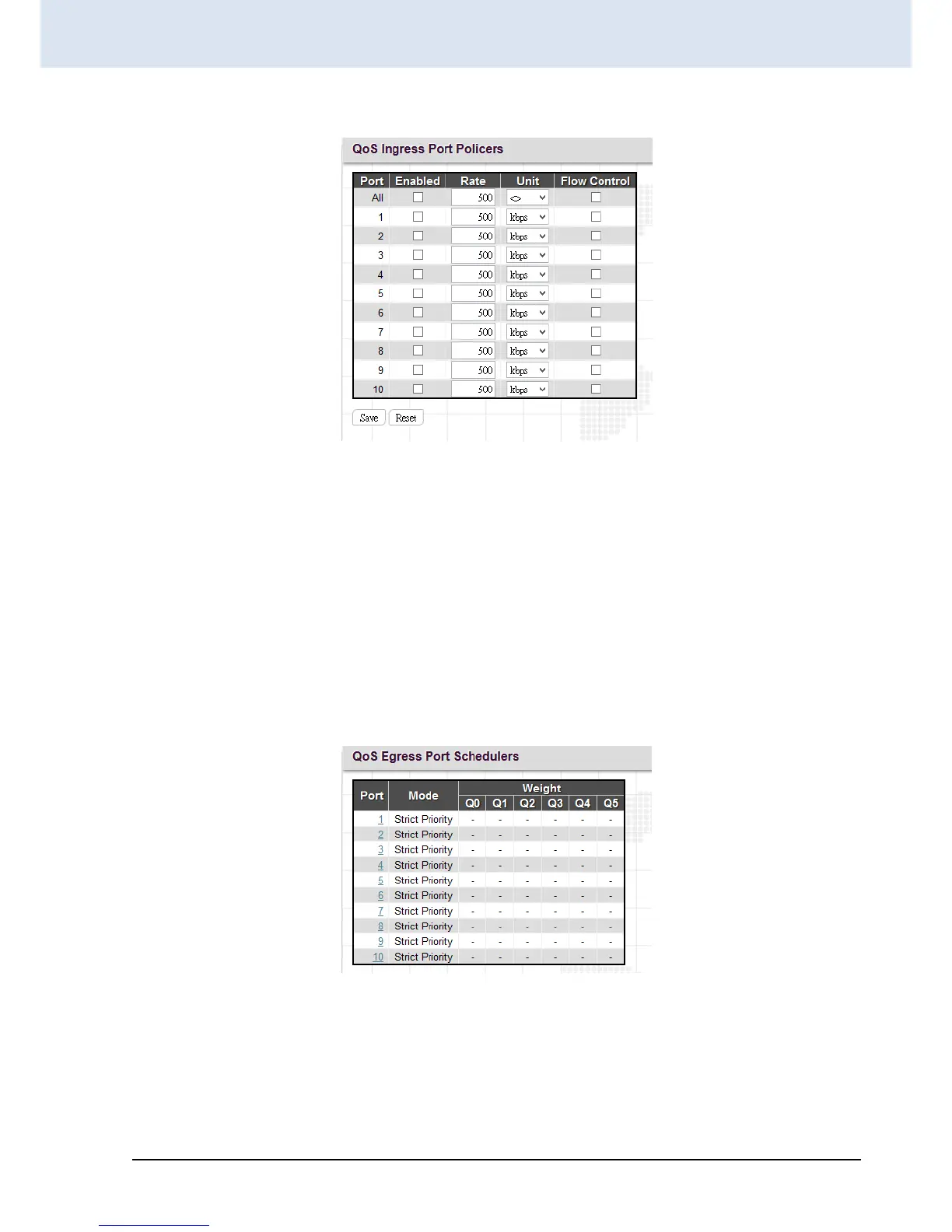

4.19.2 Port Policing
This page allows users to set each port’s allowed bandwidth.
Port: The port number. “All” settings apply to all ports.
Enabled: Select the checkbox to enable port policing function on a port.
Rate: Indicate the rate for the policer. By default, 500kbps is used. The allowed range for kbps and fps is 100 to 1000000.
The allowed range for Mbps and kfps is 1 to 3300Mbps.
Unit: Select the unit of measure for the policer.
Flow Control: If flow control is enabled and the port is in flow control mode, then pause frames are sent instead of
discarding frames.
4.19.3 Port Scheduler
Port: Click the port to set up detailed settings for port scheduler.
Mode: Display scheduler mode selected.
Weight: Display the weight in percentage assigned to Q0~Q5.
