Chapter 4
Web Configuration & Operation
Cross A: Abnormal cross-pair coupling with pair A
Cross B: Abnormal cross-pair coupling with pair B
Cross C: Abnormal cross-pair coupling with pair C
Cross D: Abnormal cross-pair coupling with pair D
Length A/B/C/D: The length (in meters) of the cable pair.
Note:
1. If a specific port is selected, the test will take approximately 5 seconds. If all ports are selected, it can run
approximately 15 seconds. When completed, the page refreshes automatically, and you can view the cable
diagnostics results in the cable status table.
2. VeriPHY is only accurate for cables of length 7 - 140 meters.
3. 10 and 100 Mbps ports will be linked down while running VeriPHY. Therefore, running VeriPHY on a 10 or 100 Mbps
management port will cause the switch to stop responding until VeriPHY is complete.
4. The EEE must be disabled at link partner.

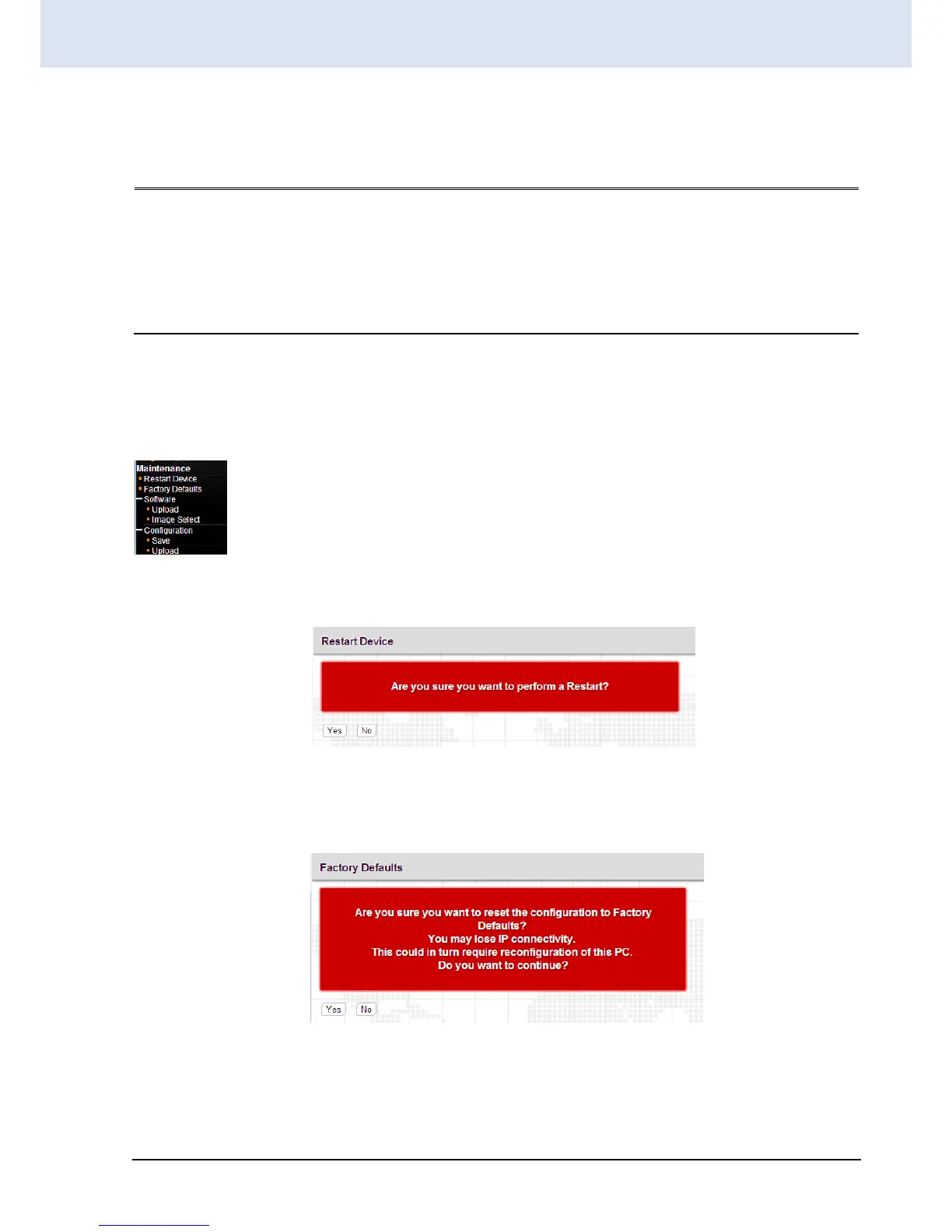

4.23 Maintenance
The “Maintenance” menu contains several sub menus. Select the appropriate sub menu to restart the device, set the
device to the factory default or upgrade firmware image.
4.23.1 Restart Device
Click “Yes” button to reboot the switch.
4.23.2 Factory Defaults
Click “Yes” button to reset your device to factory defaults settings. Please note that all changed settings will be lost. It is
recommended that a copy of the current configuration is saved to your local device.
