30
Chapter 4
Web Configuration & Operation
Vendor PN: The part number provided by SFP vendor.
Vendor SN: The serial number provided by SFP vendor.
Fiber Type: The type of fiber channel transmission media (multi-mode or single mode).
Tx Power: The TX output power in dBm.
Rx Power: The RX received optical power in dBm.
Tx Bias: The TX bias current in mA.
Supply Voltage: The transceiver supply voltage in mV.
Temperature: The transceiver temperature in degree C.

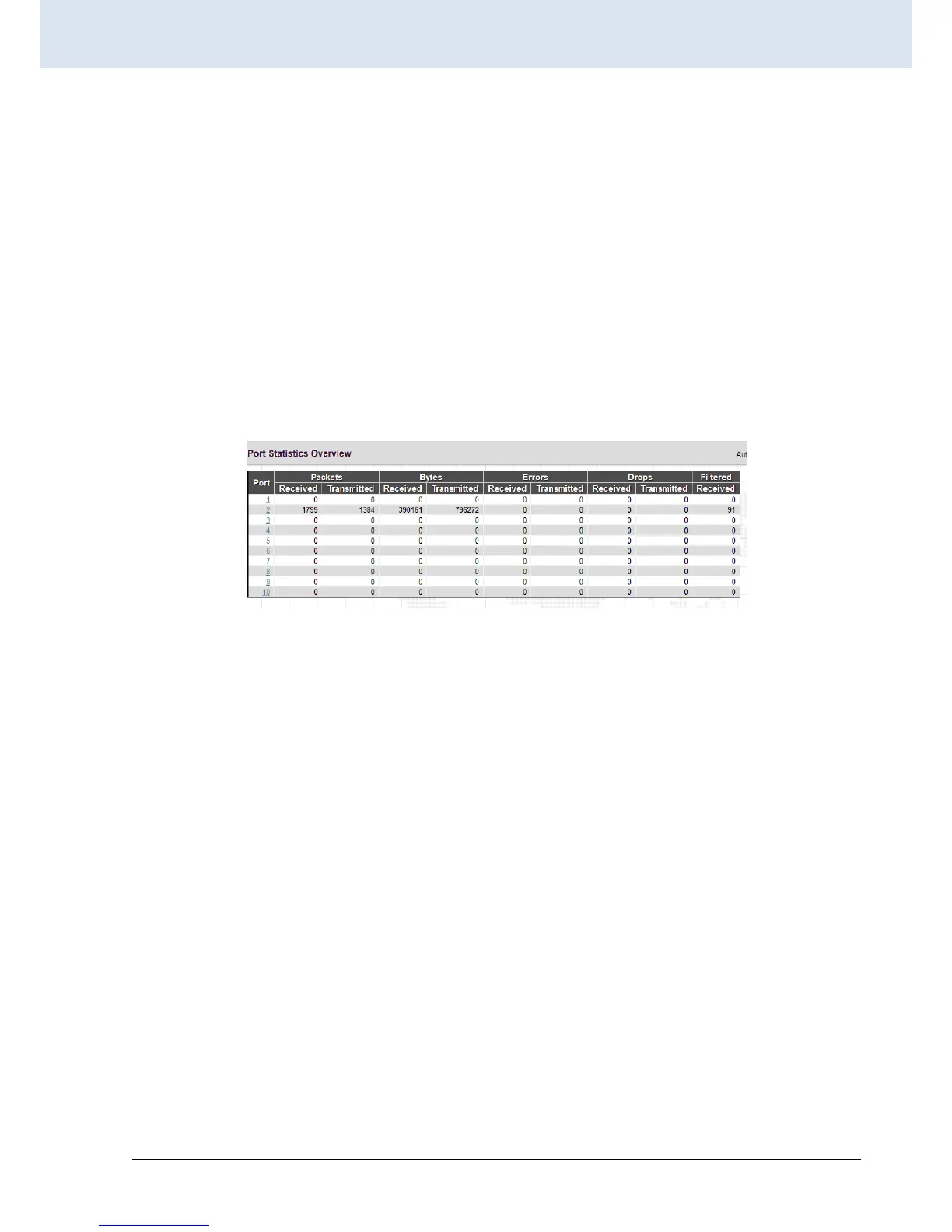

4.5.5 Ports Traffic Overview
Displays a comprehensive overview of traffic on all ports.
Port: The logical port (1~10) for the data contained in the same row.
Packets: The number of received and transmitted packets per port.
Bytes: The number of received and transmitted bytes per port.
Errors: The number of frames received in error and the number of incomplete transmissions per port.
Drops: The number of frames discarded due to ingress or egress congestion.
Filtered: The number of received frames filtered by the forwarding process.
The counter display can be updated by clicking the "Refresh" button. When "Auto-refresh" is checked, the display will be
updated every 3 seconds. Clicking the "Clear" button will zero all counters and start counting again.
