General Settings
Enable Loop Protection: Enable or disable loop protection function.
Transmission Time: The interval between each loop protection PDU sent on each port. Valid values are 1 to 10 seconds.
Shutdown Time: The period for which a port will be kept disabled. Valid values are 0 to 604800 seconds. 0 means that a
port is kept disabled until next device restart.
Port Configuration
Port: List the number of each port. “All” settings apply to all ports.
Enable: Enable or disable the selected ports’ loop protection function.
Action: When a loop is detected on a port, the loop protection will immediately take appropriate actions. Actions will be
taken include “Shutdown Port”, “Shutdown Port and Log” or “Log Only”.
Shutdown Port: A loop-detected port is shutdown for a period of time configured in “Shutdown Time”.
Shutdown Port and Log: A loop-detected port is shutdown for a period of time configured in “Shutdown Time” and
the event is logged.
Log Only: The event is logged and the port remains enable.
Tx Mode: Enable or disable a port to actively generate loop protection PDUs or to passively look for looped PDUs.

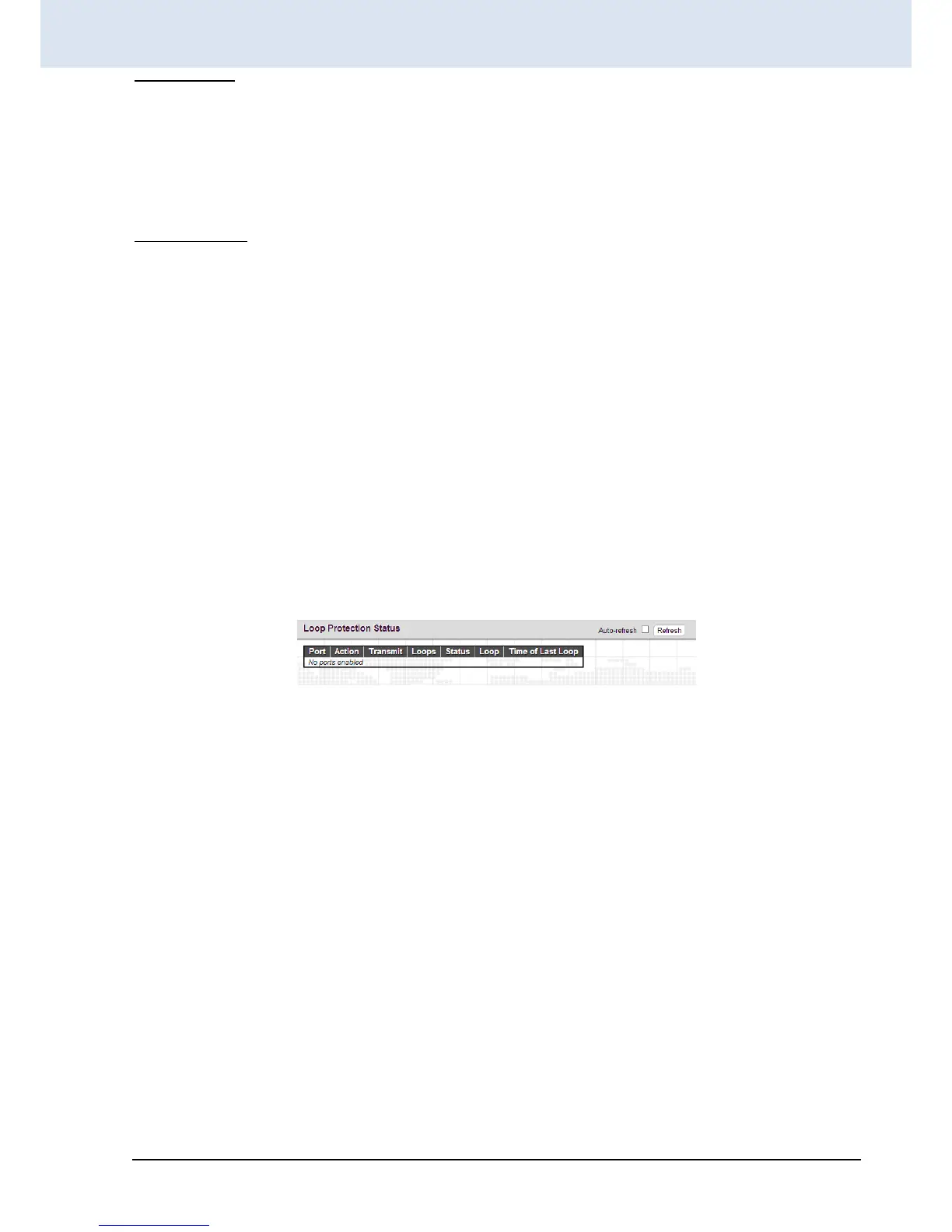

4.8.2 Status
Port: The port number.
Action: Display the configured action that the switch will react when loops occur.
Transmit: Display the configured transmit (Tx) mode.
Loops: The number of loops detected on a port.
Status: The current loop status detected on a port.
Loop: Loops detected on a port or not.
Time of Last Loop: The time of the last loop event detected.
