Chapter 4
Web Configuration & Operation

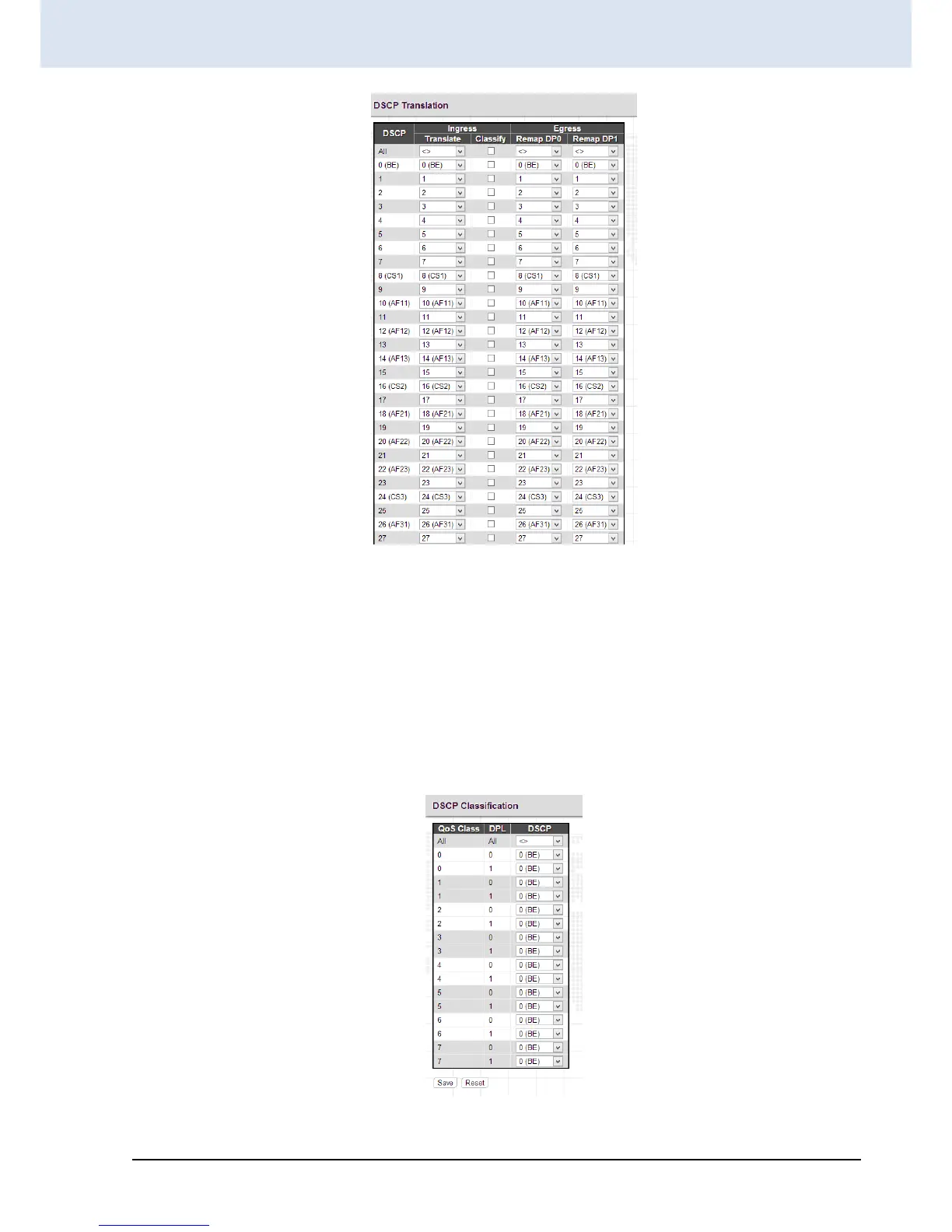

4.19.8 DSCP Translation
DSCP: DSCP value in ingress packet. DSCP range is from 0 to 63.
Ingress Translate: Enable Ingress Translation of DSCP values based on the specified classification method.
Ingress Classify: Enable classification at ingress side as defined in the QoS port DSCP Configuration Table.
Egress Remap DP0: Remap DP0 value to the selected DSCP value. DP0 indicates a drop precedence with a low priority.
Egress Remap DP1: Remap DP1 value to the selected DSCP value. DP1 indicates a drop precedence with a high priority.
4.19.9 DSCP Classification
Map DSCP values to QoS class and DPL value.
