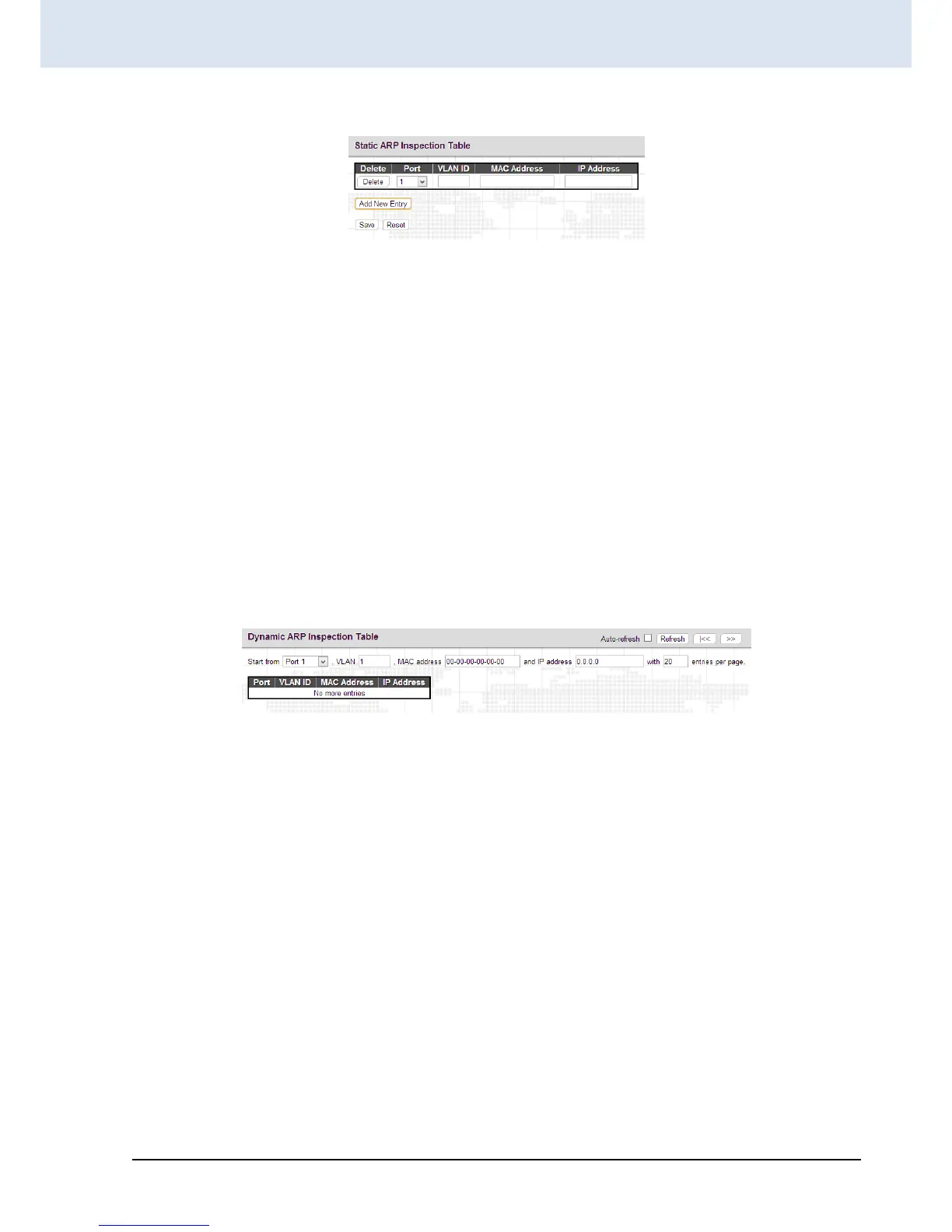

4.6.2.6.2 Static Table
Port: Select a port to which a static entry is bound.
VLAN ID: Specify a configured VLAN ID.
MAC Address: Specify an allowed source MAC address in ARP request packets.
IP Address: Specify an allowed source IP address in ARP request packets.
Click the “Add New Entry” button to insert a new entry to the list.
Click the “Delete” button to remove a newly-inserted entry or select the checkbox to remove a saved entry during the
next save.
Click the “Save” button to save settings or changes.
Click the “Reset” button to restore changed settings to the default settings.
4.6.2.6.3 Dynamic Table
Port: The port number of this entry.
VLAN ID: VLAN ID in which the ARP traffic is permitted.
MAC Address: User MAC address of this entry.
IP Address: User IP address of this entry.
