Chapter 4
Web Configuration & Operation
4.15.2 Ports Configuration
Ethertype for Custom S-ports: Specify ether type used for customer s-ports.

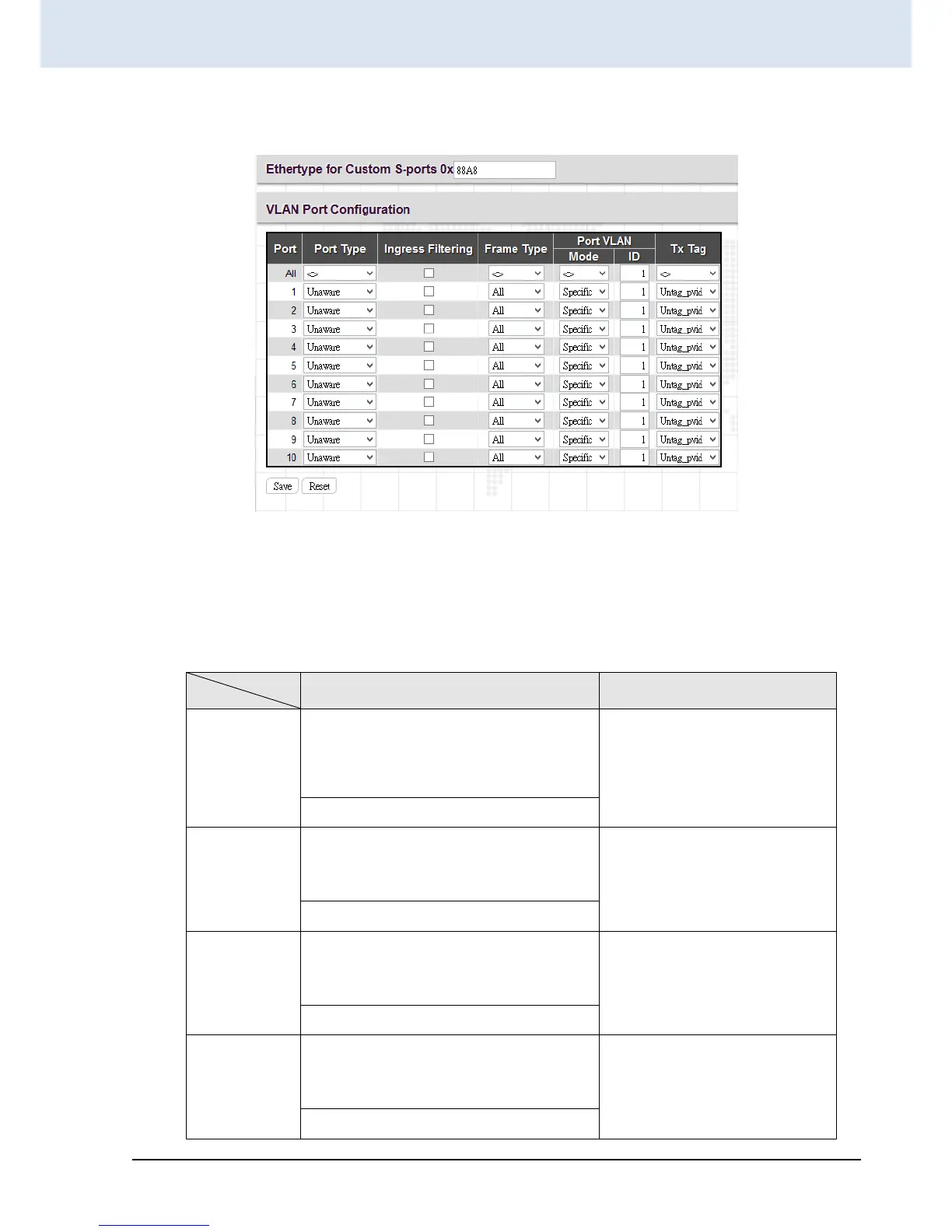

VLAN Port Configuration
Port: The port number. “All” settings apply to all ports.
Port Type: There are four port types available. Each port type’s ingress and egress action is described in the following
table.
When a tagged frame is received on a port,
1. If the tagged frame with TPID=0x8100, it
becomes a double-tag frame and is
forwarded.
2. If the TPID of tagged frame is not 0x8100
(ex. 0x88A8), it will be discarded.
The TPID of frame transmitted by
Unaware port will be set to 0x8100.
The final status of the frame after
egressing are also affected by egress
rule.
When an untagged frame is received on a port,
a tag (PVID) is attached and then forwarded.
When a tagged frame is received on a port,
1. If a tagged frame with TIPID=0x8100, it is
forwarded.
2. If the TPID of tagged frame is not 0x8100
(ex. 0x88A8), it will be discarded.
The TPID of frame transmitted by C-
port will be set to 0x8100.
When an untagged frame is received on a port,
a tag (PVID) is attached and then forwarded.
When a tagged frame is received on a port,
1. If a tagged frame with TPID=0x88AA, it is
forwarded.
2. If the TPID of tagged frame is not 0x88A8
(ex. 0x8810), it will be discarded.
The TPID of frame transmitted by S-
port will be set to 0x88A8
When an untagged frame is received on a port,
a tag (PVID) is attached and then forwarded.
When a tagged frame is received on a port,
1. If a tagged frame with TPID=0x88AA, it is
forwarded.
2. If the TPID of tagged frame is not 0x88A8
(ex. 0x8810), it will be discarded.
The TIPID of frame transmitted by S-
custom-port will be set to an self-
customized value, which can be set
by the user using the column of
Ethertype for Custom S-ports.
When an untagged frame is received on a port,
a tag (PVID) is attached and then forwarded.
To Next Page
