4.6.2.5 IP Source Guard
4.6.2.5.1 Configuration

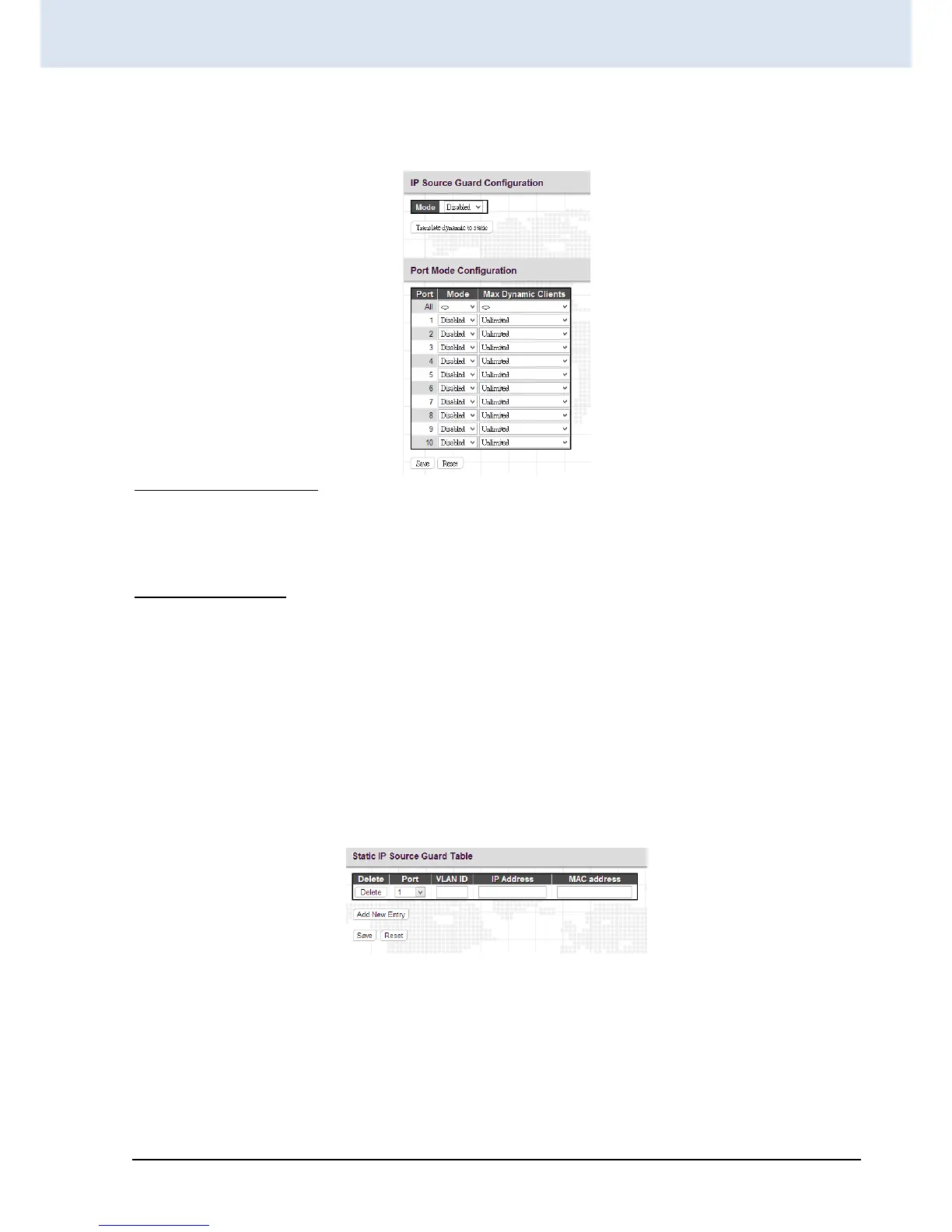

IP Source Guard Configuration
Mode: Enable or disable IP source guard globally.
Translate dynamic to static: Click this button to translate dynamic entries to static ones.
Port Mode Configuration
Port: The port number. “Port *” rules apply to all ports.
Mode: Enable or disable IP source guard on a port. Please note that to make IP source guard work, both global mode and
port mode must be enabled.
Max Dynamic Clients: Select the maximum number of dynamic clients that can be learned on a port. The available
options are 0, 1, 2, unlimited. If the port mode is enabled and the maximum number of dynamic clients is equal 0, the
switch will only forward IP packets that are matched in static entries for a given port.
4.6.2.5.2 Static Table
Port: Select a port to which a static entry is bound.
VLAN ID: Enter VLAN ID that has been configured.
IP Address: Enter a valid IP address.
MAC Address: Enter a valid MAC address.
Click the “Add New Entry” button to insert a new entry to the list.
