Rx CRC/Alignment: The number of frames received with CRC or alignment errors.
Rx Undersize: The number of short
1
frames received with valid CRC.
Rx Oversize: The number of long
2
frames received with valid CRC.
Rx Fragments: The number of short
1
frames received with invalid CRC.
Rx Jabber: The number of long
2
frames received with invalid CRC.
Rx Filtered: The number of received frames filtered by the forwarding process.
1
Short frames are frames that are smaller than 64 bytes.
2
Long frames are frames that are longer than the configured maximum frame length for this port.
Transmit Error Counters
Tx Drops: The number of frames dropped due to output buffer congestion.
Tx Late/Exc. Coll.: The number of frames dropped due to excessive or late collisions.

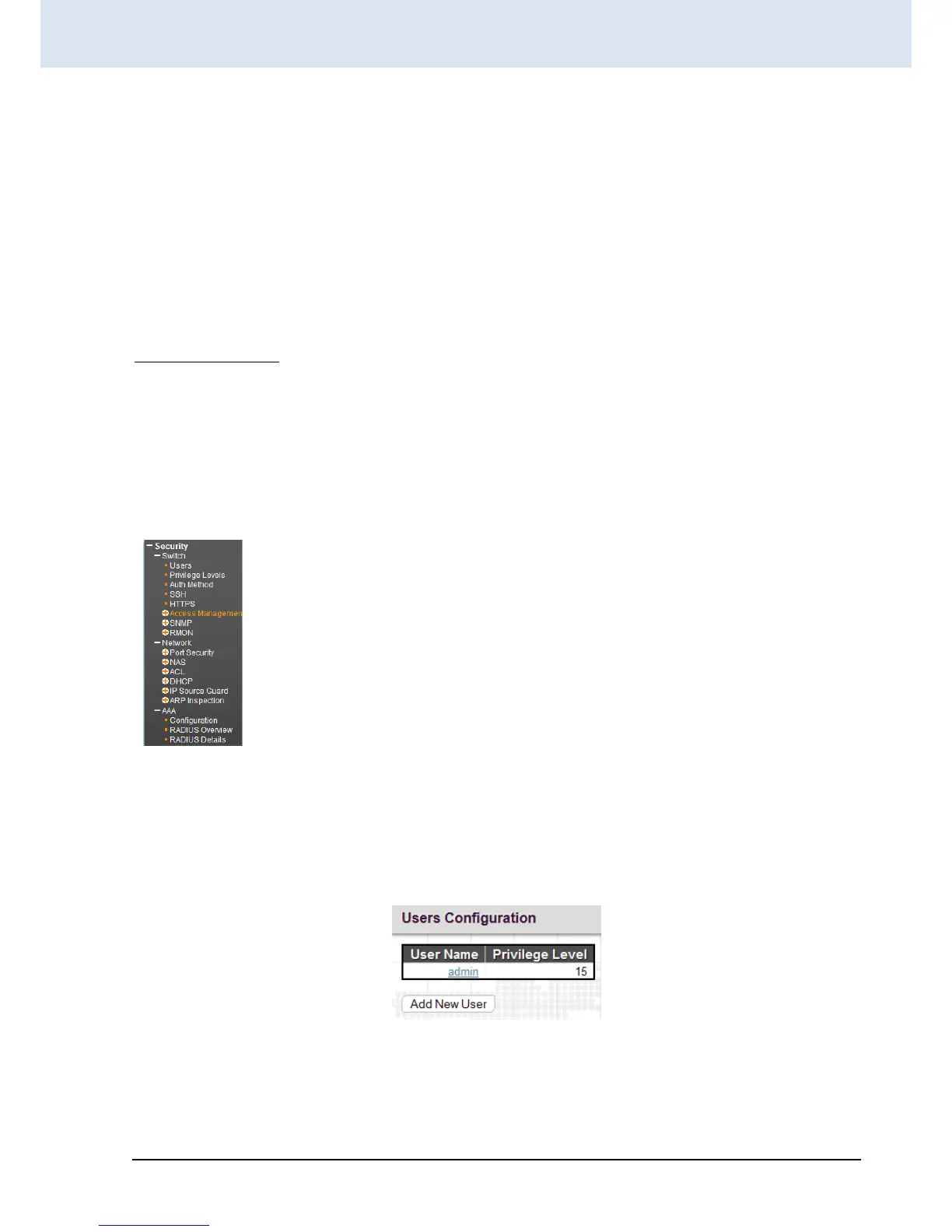

4.6 Security
Under the security heading are three major icons, switch, network and AAA (Authentication and Accounting).
4.6.1 Switch
4.6.1.1 Users
This page provides an overview of the current users. Currently the only way to login as another user on the web server is
to close and reopen the browser.
By default, there is only one user, 'admin', assigned the highest privilege level of 15.
User Name: The name identifying the user. Click the entries in User Name column to edit the existing users. Or click the
“Add New User” button to insert a new user entry.
Privilege Level: The privilege level of the user.
