Click the “Add New Static Entry” button to insert a new entry to the list.
Click the “Delete” button to remove a newly-inserted entry or select the checkbox to remove a saved entry during the
next save.
Click the “Save” button to save settings or changes.
Click the “Reset” button to restore changed settings to the default settings.
4.13.2 MAC Address Table

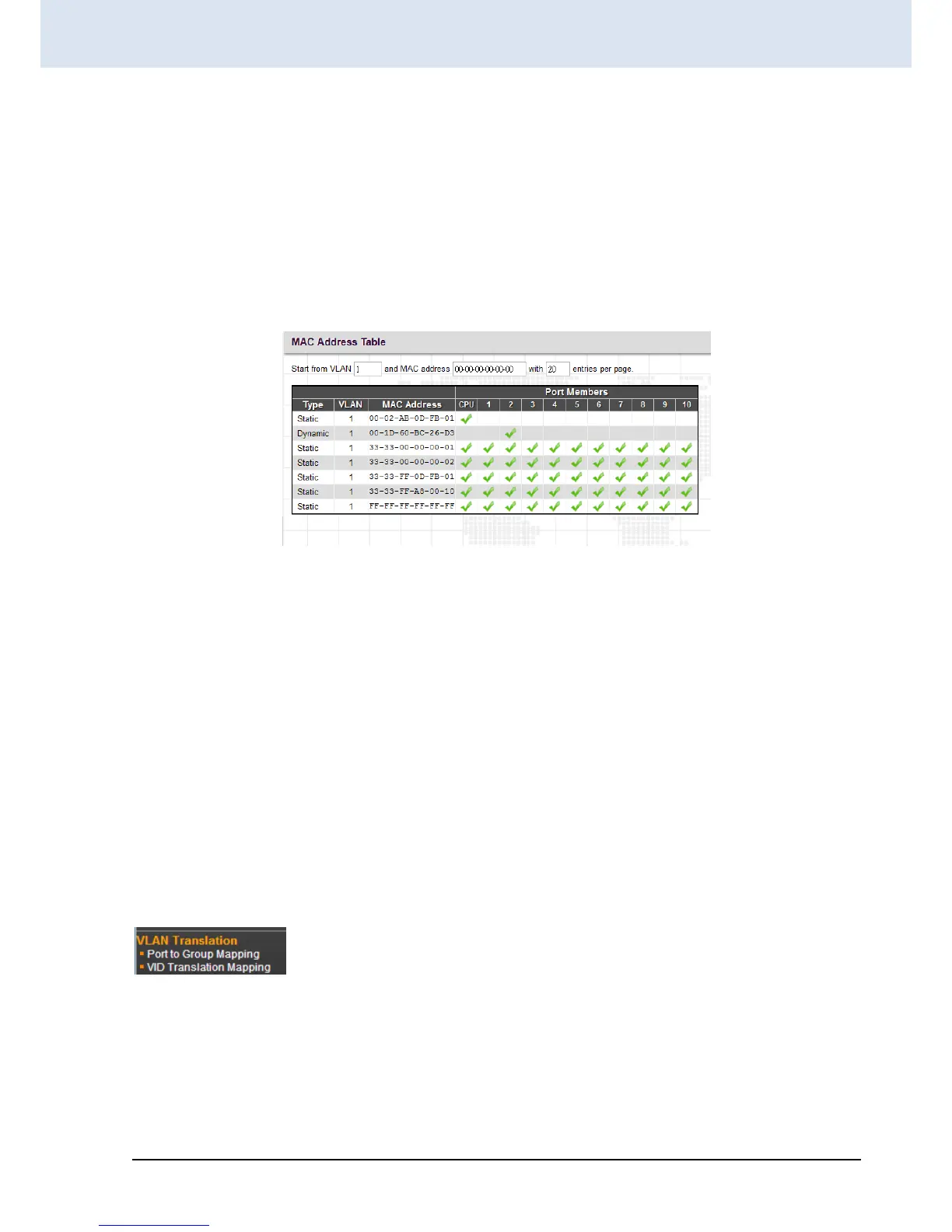

The MAC Address Table shows both static and dynamic MAC addresses learned from CPU or switch ports. You can enter
the starting VLAN ID and MAC addresses to view the desired entries.
Type: Display whether the learned MAC address is static or dynamic.
VLAN ID: The VLAN ID associated with this entry.
MAC Address: The MAC address learned on CPU or certain ports.
Port Members: Ports associated with this entry.
4.14 VLAN Translation
VLAN Translation is especially useful for users who want to translate the original VLAN ID to a new VLAN ID so as to
exchange data across different VLANs and improve VLAN scaling. VLAN translation replaces an incoming C-VLAN tag with
an S-VLAN tag instead of adding an additional tag. When configuring VLAN Translation, both ends of the link normally
must be able to replace tags appropriately. In other words, both ends must be configured to translate the C-VLAN tag to
S-VLAN tag and S-VLAN tag to C-VLAN tag appropriately in a network. Note that only access ports support VLAN
translation. It is not recommended to configure VLAN Translation on trunk ports.
The “VLAN Translation” menu contains the following sub menus. Select the appropriate one to configure settings or view
its status.
4.14.1 Port to Group Mapping
To Next Page
