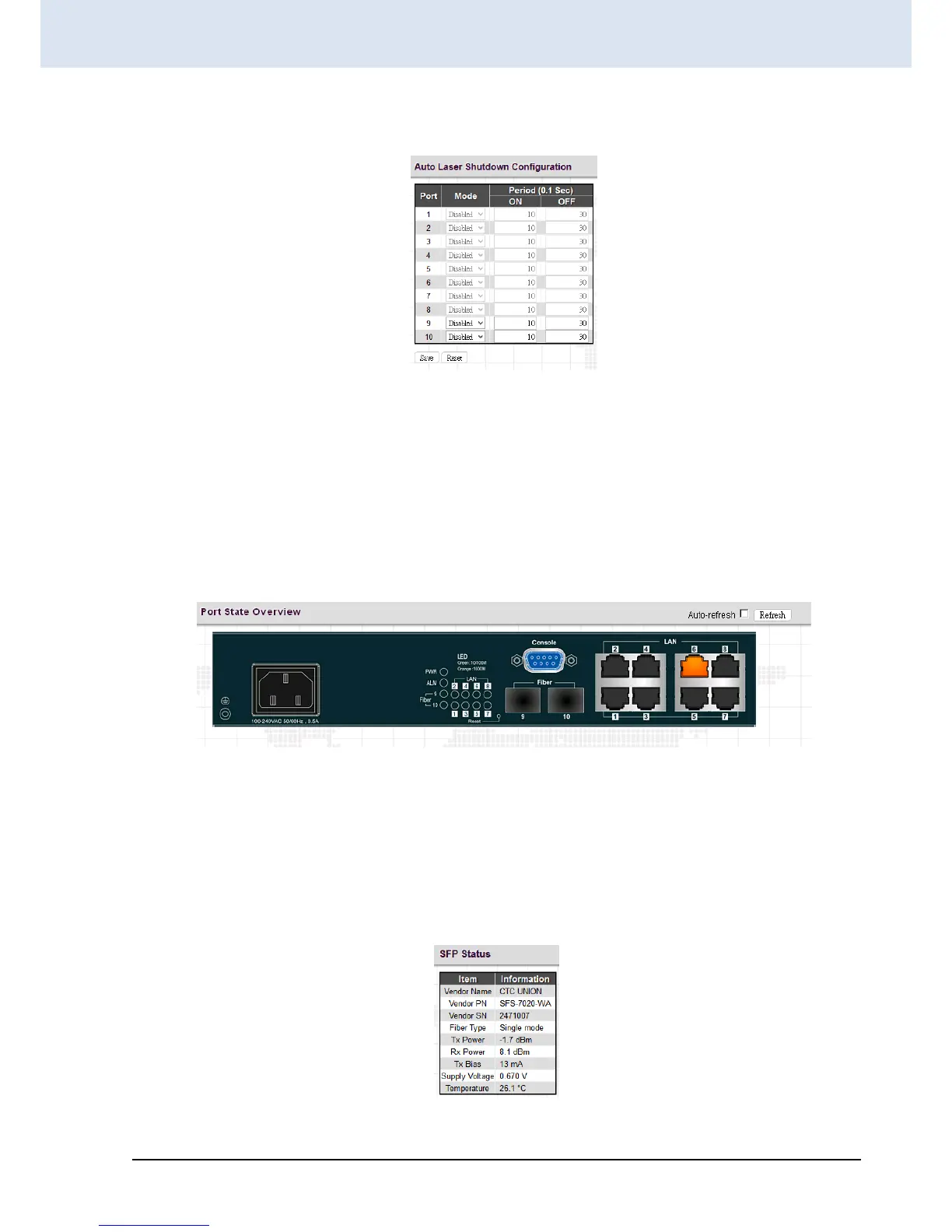

4.5.2 Ports Auto Laser Shutdown
This page allows the user to inspect and configure the current setting for transceiver module Tx power.
(ALS) Mode: Enable or disable the laser power of transceiver module shutdown automatically.
Laser ON Period: The period is Tx laser power turn ON. The allowed range is 2 to 30 in tenths of a second. The default
period is 10 in tenths of a second (1 second).
Laser OFF Period: The period is Tx laser power turn OFF. The allowed range is 10 to 50 in tenths of a second. The default
period is 30 in tenths of a second (3 second).
4.5.3 Ports State
Display an overview graphic of the switch.
This is the same graphic overview shown when first logging into the switch for management. "Green" colored ports
indicate a 10M or 100M linked state, while "Orange" colored ports indicate a 1000M linked state. "Grey" ports have no
link. The link status display can be updated by clicking the "Refresh" button. When "Auto-refresh" is checked, the display
will be updated every 3 seconds.
4.5.4 Ports SFP
This page provides status of SFP.
Vendor Name: The SFP vendor’s (company) name.
