Part Name Description
9
Paddles Paddle attachments to the syringe pushers come in
co
ntact with the syringe pistons .
10
Rotating block A block where the cartridge, syringes, and optional
heating block are connected to the instrument. The
block rotates from the default (down) position into the
loading (up) position.
11
Cartridge
adapter
Cartridge adapters that are required for use with two-
inlet cartridges.

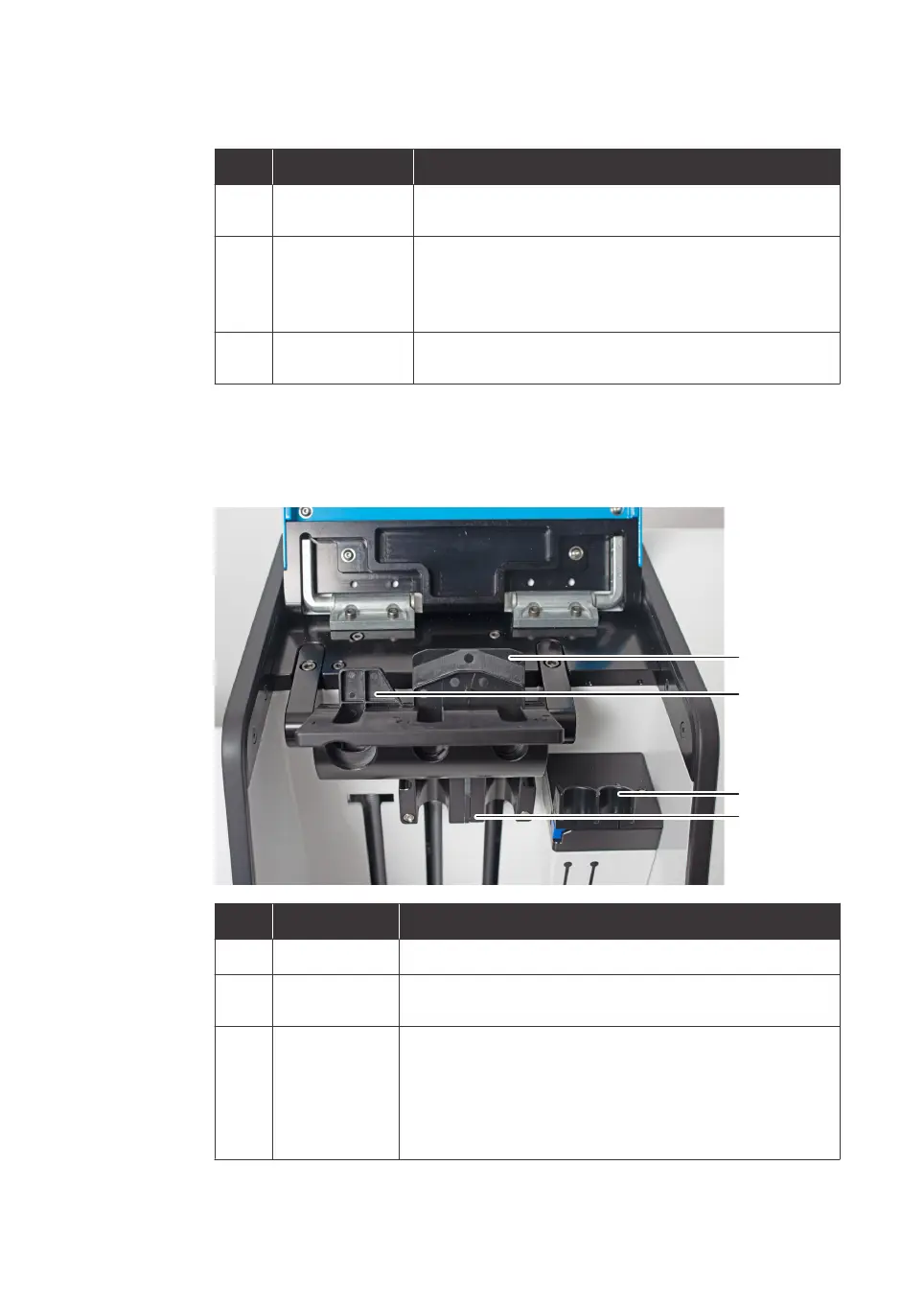

Detailed view of the rotating block
The illustration below shows a detailed view of the locations of the components on the
instrument. The rotating block is in the loading position, rotated up.
3
4
1
2
Part Name Description
1
Cartridge See above section
2
Cartridge
a
d
apter
See above section
3
Sample arm Sample arms with different sized holders to hold the
collection tubes.
Note:
The sample arms supplied with the system differ between
the Ignite and Ignite+ systems.
3 System description
3.
2 Instrument
NanoAssemblr Ignite and Ignite+ Operating Instructions NIN1134 AA 20
