3.5.1 Heating insert
In
troduction
The Ignite and Ignite+ systems can be operated with metal sleeves called heating
inserts, which are placed around the syringe. The heating inserts ensure good thermal
contact between the syringe heaters of the instrument and differently sized syringes.
Heating inserts are specific to the instrument. See Section 9.5 Ordering information,

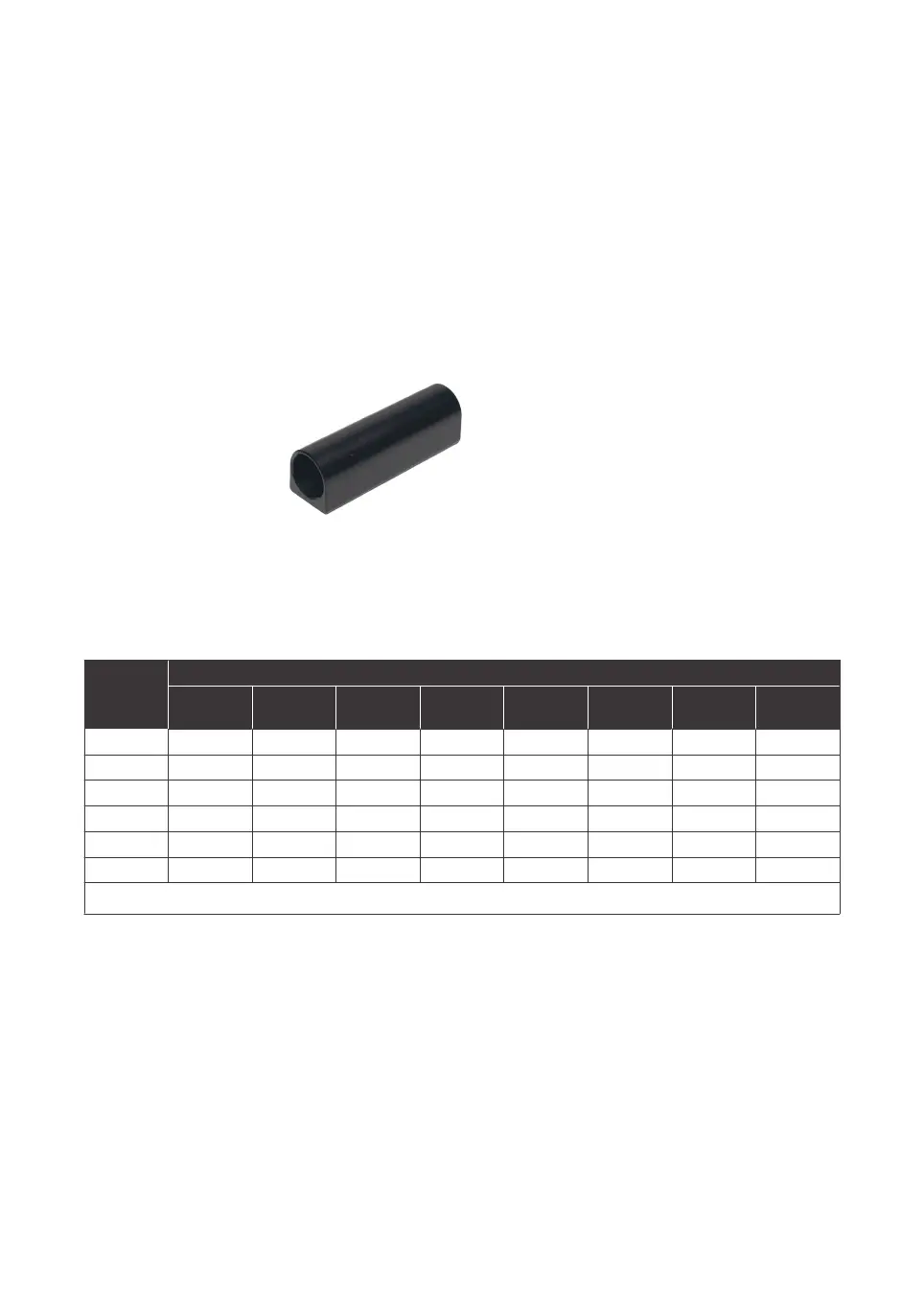

on page 130 for more information. The image below shows an Ignite heating insert.
Ignite heating insert compatibility
Ea
ch Ignite heating insert is labeled with a size. The table below shows which heating
insert size is appropriate for each compatible syringe manufacturer.
Syringe
si
ze
Heating insert size
BD B Braun
In
jekt
B Braun
Omnifix
Terumo Shinva
Ande
KDL WEGO KOVAX
1 mL 1 mL 1 mL 1 mL 1 mL 3 mL 1 mL X 3 mL
2 mL X X X X 3 mL 3 mL 3 mL X
2.5 mL X X X X X X X X
3 mL 3 mL X 3 mL - O 3 mL 3 mL X X X
5 mL 5 mL 5 mL 5 mL 5 mL - T 5 mL 5 mL 5 mL X
10 mL 10 mL 10 mL 10 mL 10 mL 10 mL 10 mL 10 mL X
X: Syringe not supported by Ignite instrument
3 System description
3.
5 Accessories
3.5.1 Heating insert
NanoAssemblr Ignite and Ignite+ Operating Instructions NIN1134 AA 38
