3.2 Instrument
I
l
lustration of the instrument

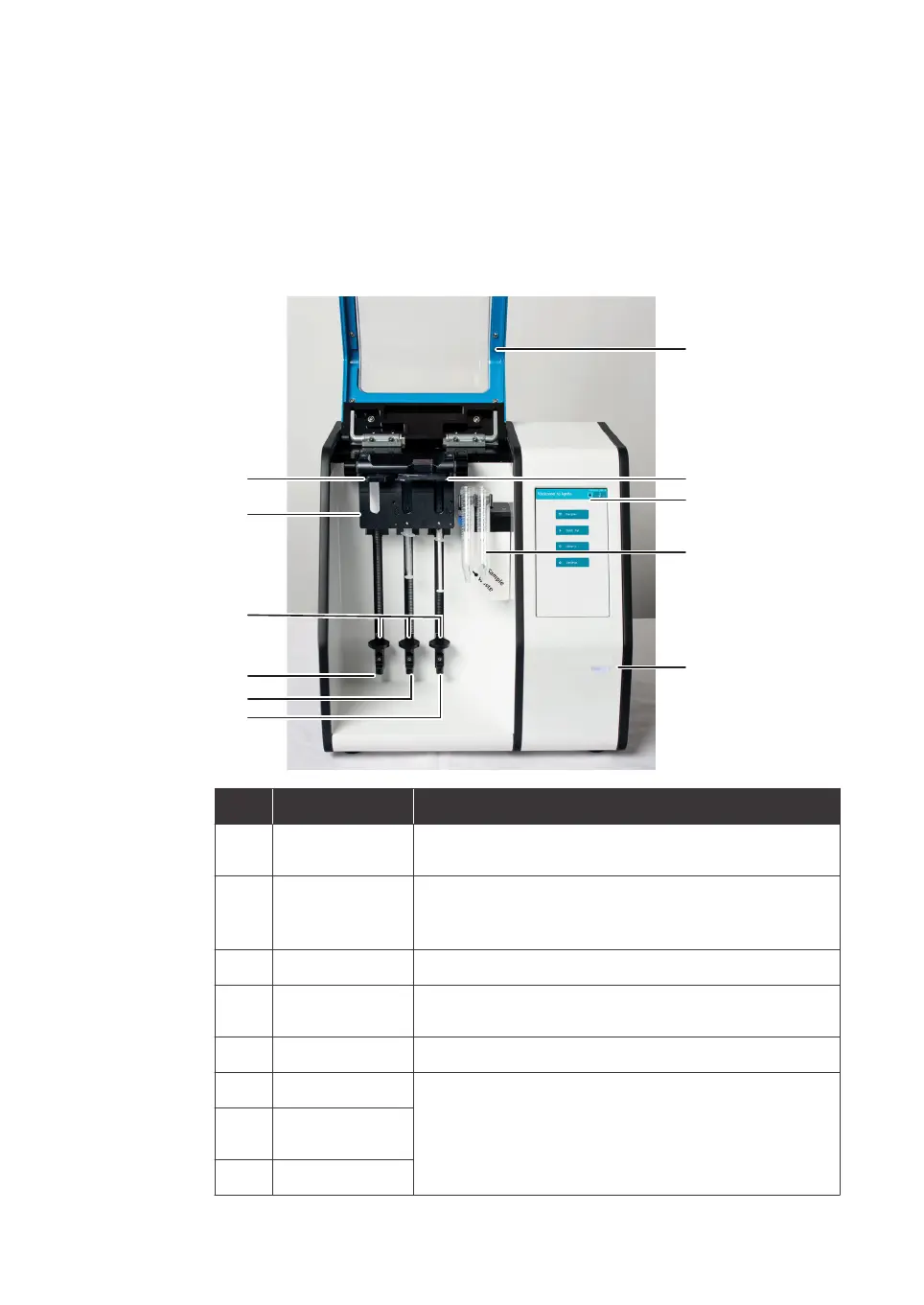

The illustration below shows the locations and gives descriptions of the components
on the instrument. The rotating block is in the default position, rotated down.
3
4
5
6
7
8
10
11
1
2
9
Part Name Description
1
Lid Main instrument lid that must be closed during formu-
la
tion.
2
Cartridge Single-use cartridges with built-in mixer geometries to
combine reagents and deliver the mixed fluid to the
collection tubes.
3
User interface A user interface with touch screen display.
4
Collection
tu
bes
Tubes for collecting the sample and the waste from the
formulation.
5
Status indicator When lit, the instrument is powered on.
6
Right (R) pusher Syringe pushers press the syringe pistons at independ-
en
tly controlled rates.
7
Center (C)
pu
sher
8
Left (L) pusher
