3.3.3 Three-inlet cartridges
Int
roduction
NxGen Dilution and NxGen 500D cartridges have three inlets to enable in-channel dilu-
tion. The cartridges combine reagents from the C and R channels through the mixer,
and introduce the reagent from the L channel in the T-junction at the output of the
mixer.
Illustration of three-inlet cartridge
front

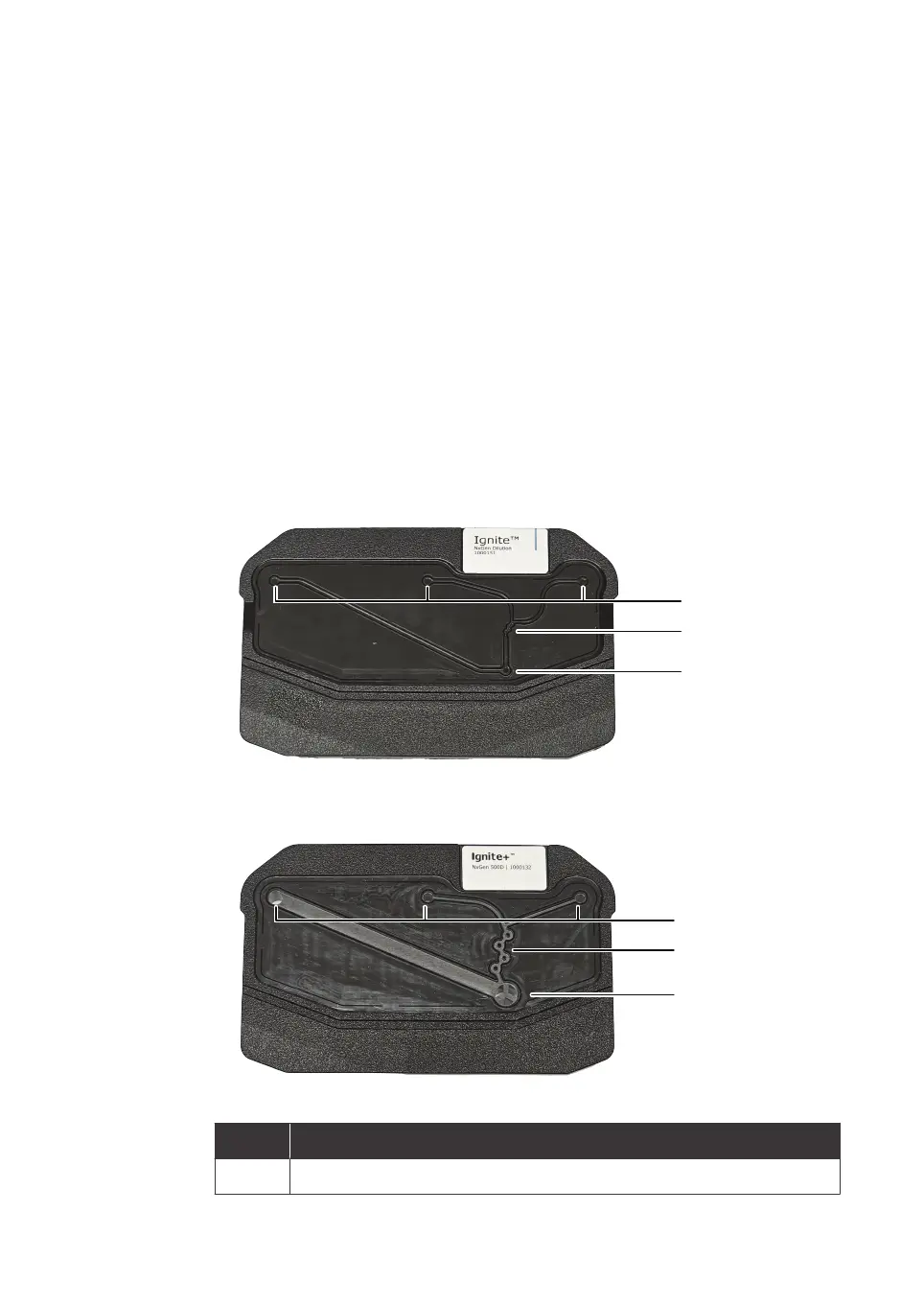

The illustrations below show the locations and gives brief descriptions of the parts on
the front of each cartridge.
NxGen Dilution
1
2
3
NxGen 500D
1
2
3
Part Description
1 Cartridge inlets
3 System description
3.3
Microfluidic cartridges
3.3.3 Three-inlet cartridges
