Section 5 - Advanced Network Conguration
MAC Based VLANs
Path: Network > VLAN > Advanced VLAN > MAC Based VLAN
If a packet is untagged or priority tagged, the device shall associate it with the VLAN which corresponds to the
source MAC address in its MAC‐based VLAN tables. If there is no matching entry in the table, then the packet is
subject to normal VLAN classication rules of the device.

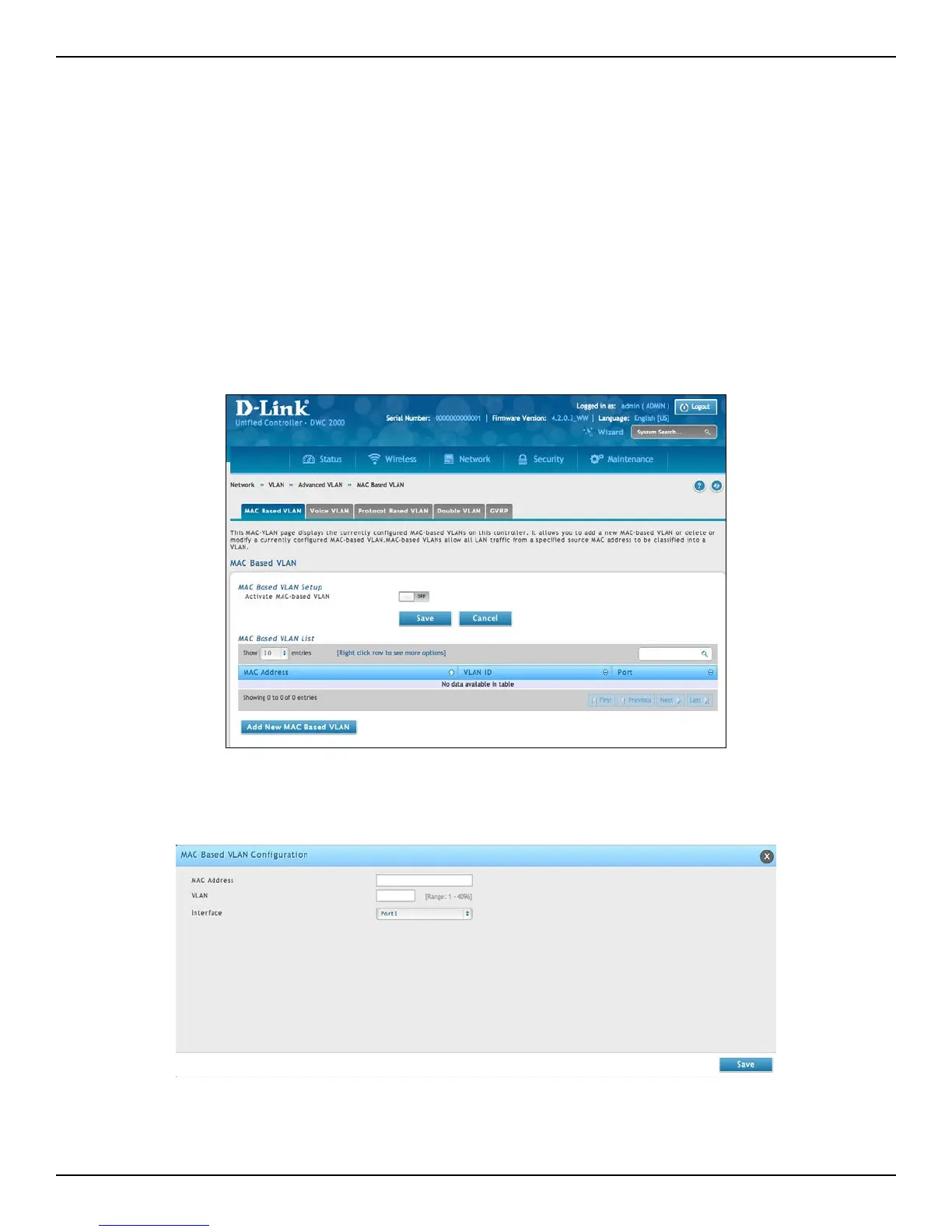

Use the MAC‐based VLAN Conguration page to map a MAC entry to the VLAN table. After the source MAC address
and the VLAN ID are specied, the MAC‐to‐VLAN congurations are shared across all ports of the controller.
1. Go to Network > VLAN > Advanced VLAN > MAC Based VLAN tab.
2. Toggle Activate MAC-based VLAN to ON and click Save.
3. Click Add New MAC Based VLAN.
