D-Link DWC-2000

D-Link DWC-2000 User Manual 151
Section 5 - Advanced Network Conguration
Conguring 802.1p Priority
Path: Network > QoS > QoS Priority > 802.1P Priority
If you selected CoS for your QoS conguration, use the following procedure to congure and assign priority to
the CoS elds in the IP packets.

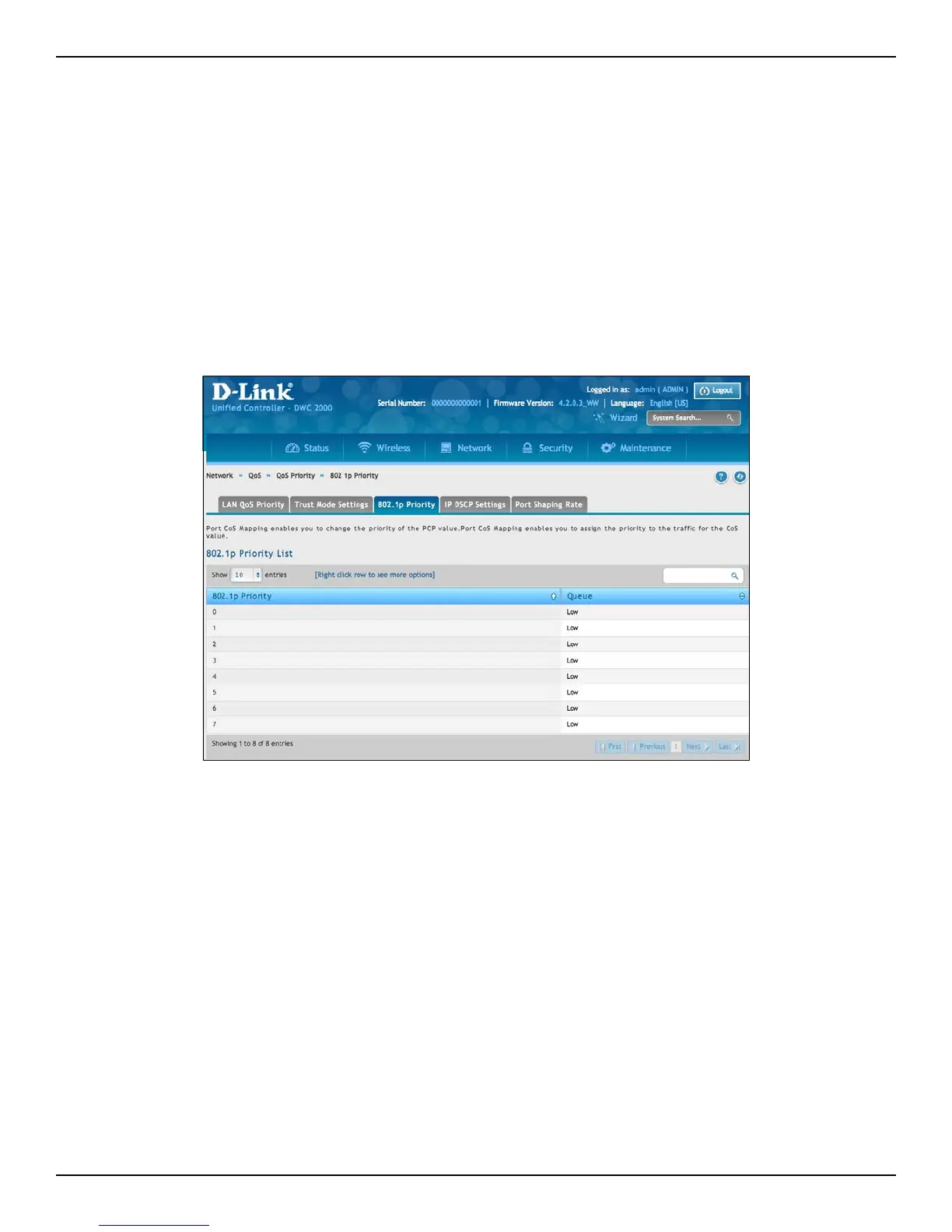

1. Go to Network > QoS > QoS Priority. On the middle menu on the QoS Priority page, click the 802.1P
Priority tab. In the 802.1p Priority List, each row corresponds to a CoS eld in an IP packet. Select a
CoS eld by right-clicking on it and clicking Edit. This brings up a popup box called 802.1P Priority
Conguration.
2. On the Queue drop-down list, select one of the following priorities:
– Highest
– Medium
– Low
– Lowest
3. Repeat step 2 for each additional CoS eld you want to prioritize.
4. When you nish, click Save.
