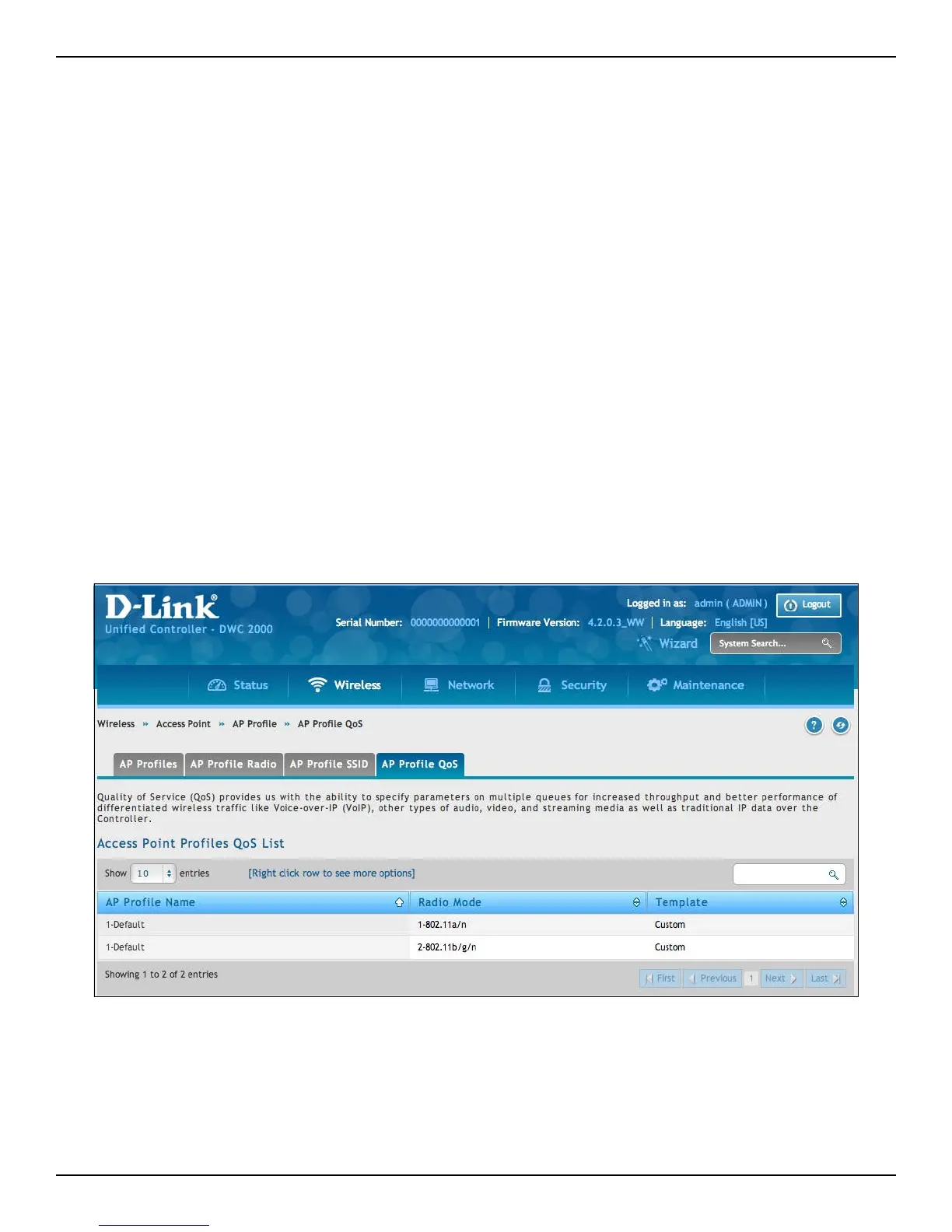

D-Link DWC-2000 User Manual 94
Section 4 - Advanced WLAN Conguration
Congure AP Prole QoS
Path: Wireless > Access Point > AP Prole > AP Prole QoS
Quality of Service (QoS) provides you with the ability to specify parameters on multiple queues for increased
throughput and better performance of dierentiated wireless trac like Voice‐over‐IP (VoIP), other types of
audio, video, and streaming media as well as traditional IP data over the wireless controller.
Conguring Quality of Service (QoS) on the wireless controller consists of setting parameters on existing queues
for dierent types of wireless trac, and eectively specifying minimum and maximum wait times (through
Contention Windows) for transmission. The settings described here apply to data transmission behavior on the
access point only, not to that of the client stations.
AP Enhanced Distributed Channel Access (EDCA) Parameters aect trac owing from the access point to the
client station. Station Enhanced Distributed Channel Access (EDCA) Parameters aect trac owing from the
client station to the access point.
You can specify custom QoS settings, or you can select a template that congures the AP prole with pre‐dened
settings that are optimized for data trac or voice trac.
1. Click Wireless > Access Point > AP Proles > AP Proles QoS tab.
2. Right-click the AP Prole and select Edit.
