D-Link DWC-2000 User Manual 126
Section 5 - Advanced Network Conguration

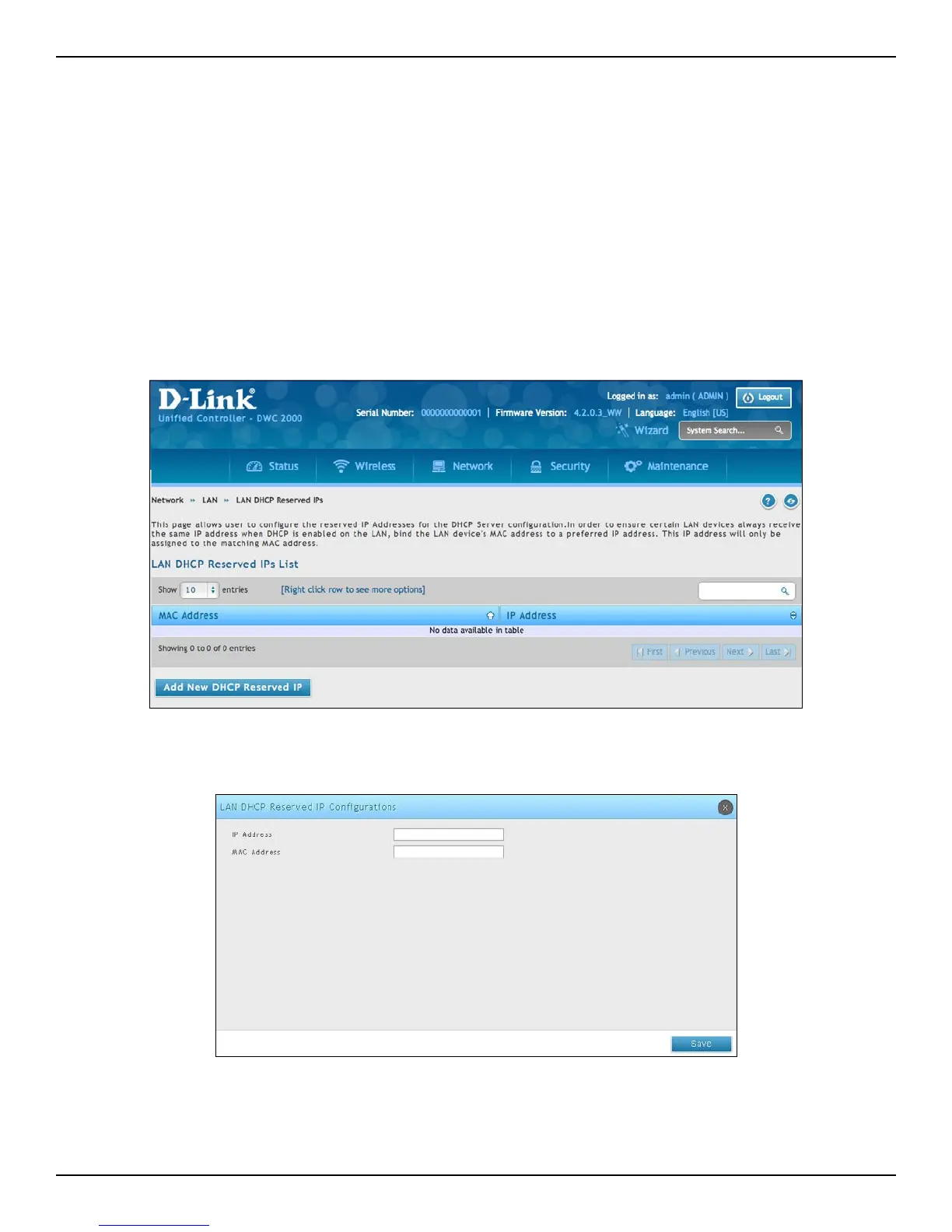

LAN DHCP Reserved IPs
Path: Network > LAN > LAN DHCP Reserved IPs
The controller’s DHCP server can assign TCP/IP congurations to computers in the LAN explicitly by adding
client's network interface hardware address and the IP address to be assigned to that client in DHCP server's
database. Whenever DHCP server receives a request from client, hardware address of that client is compared
with the hardware address list present in the database, if an IP address is already assigned to that computer or
device in the database , the customized IP address is congured otherwise an IP address is assigned to the client
automatically from the DHCP pool.
1. Click Network > LAN > LAN DHCP Reserved IPs.
2. Click Add New DHCP Reserved IP.
3. Enter the IP address you want to reserve and the MAC Address of the client you want to assign the IP
address to.
4. Click Save
