D-Link DWC-2000 User Manual 152
Section 5 - Advanced Network Conguration
Conguring DSCP Priority

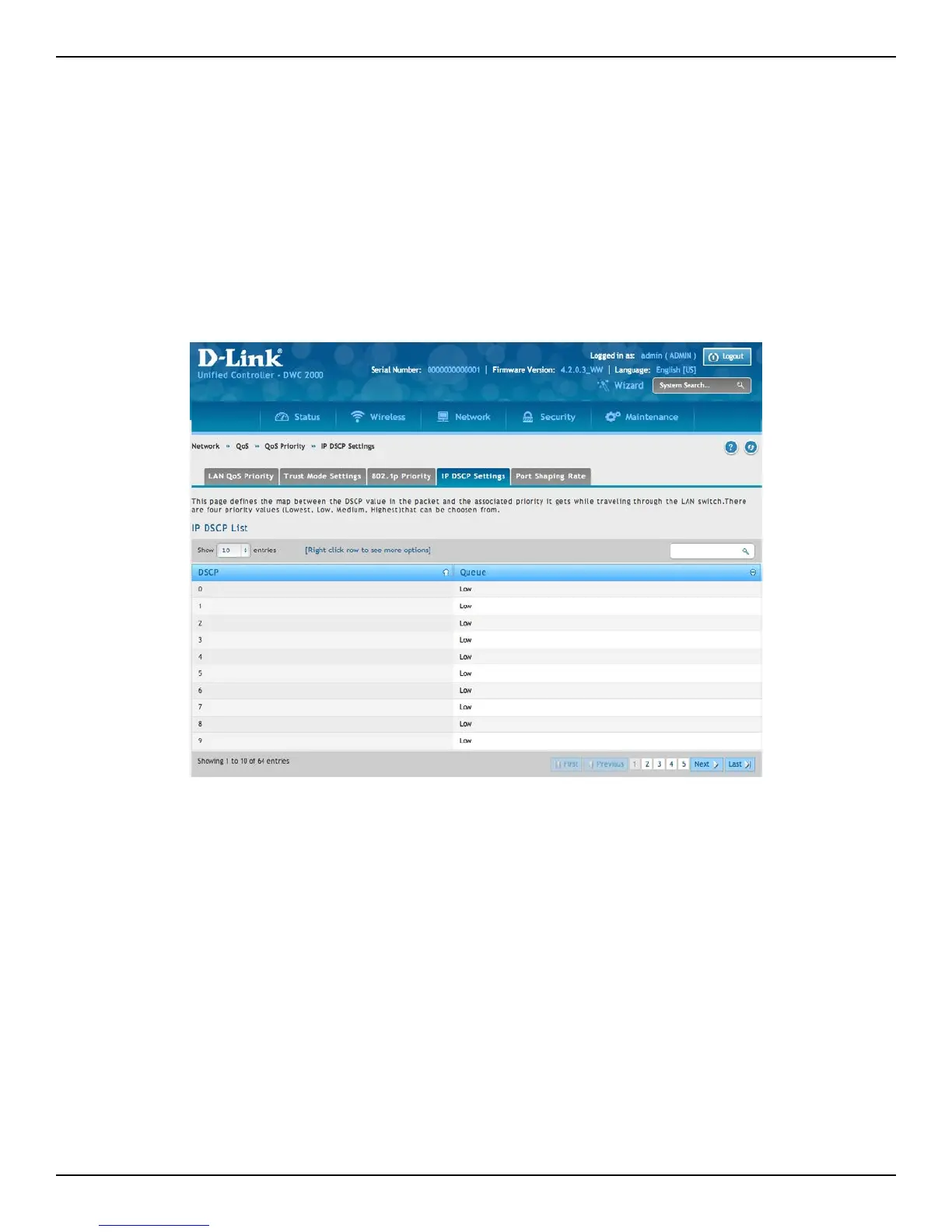

Path: Network > QoS > QoS Priority > IP DSCP Settings
If you selected DSCP for your QoS conguration, use the following procedure to congure and assign priority to
the DSCP elds in IP packets.
1 Go to Network > QoS > QoS Priority. On the middle menu on the QoS Priority page, click the IP DSCP
Settings tab. In the IP DSCP List, select a DSCP by right-clicking it and clicking Edit. This brings up a
popup box called IP DSCP Conguration.
2. From the Queue drop-down list, select one of the following priorities:
– Highest
– Medium
– Low
– Lowest
3. Repeat step 2 for each additional DSCP eld you want to prioritize.
4. When you nish, click Save.
