D-Link DWC-2000

D-Link DWC-2000 User Manual 64
Section 4 - Advanced WLAN Conguration
Channel Plan and Power Settings
The wireless controller software contains a channel plan algorithm that automatically determines which RF
channels each AP should use to minimize RF interference. When you enable the channel plan algorithm, the
wireless controller periodically evaluates the operational channel on every AP it manages and changes the
channel if the current channel is noisy.
Congure Channel Plan
Path: Wireless > General > Channel Algorithm
To congure Channel Algorithm setting:

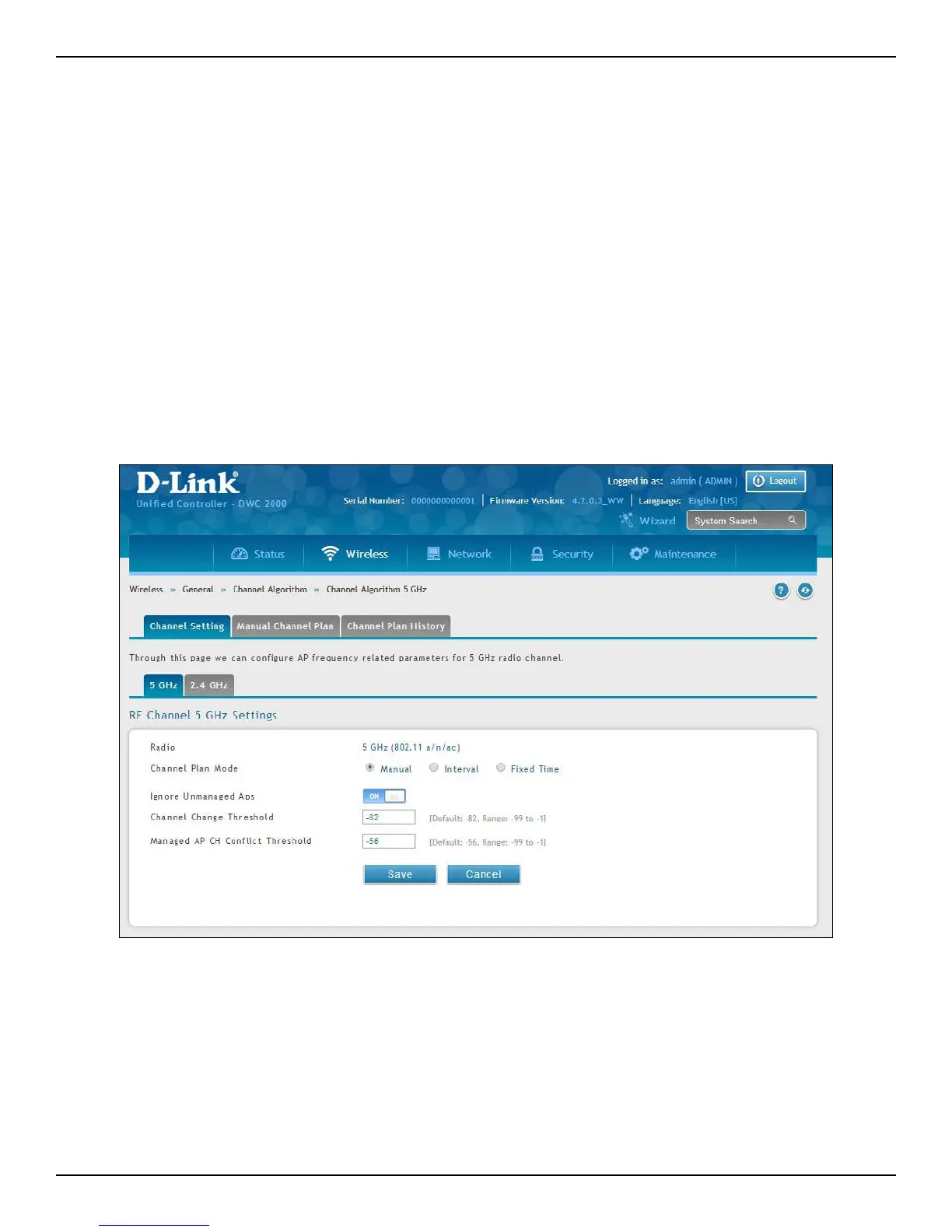

1. Click Wireless > General > Channel Algorithm > Channel Setting tab. The Channel Setting page will
appear.
2. Each AP is dual‐band capable of operating in the 2.4GHz and 5GHz frequencies. The 802.11a/n and
802.11b/g/n modes use dierent channel plans. Before you congure channel plan settings, select the
mode to congure. Click either the 5GHz or 2.4GHz tab.
