Section 7 - Viewing Status and Statistics
Path: Status > Wireless Information > WDS Groups Status > WDS Link Statistics

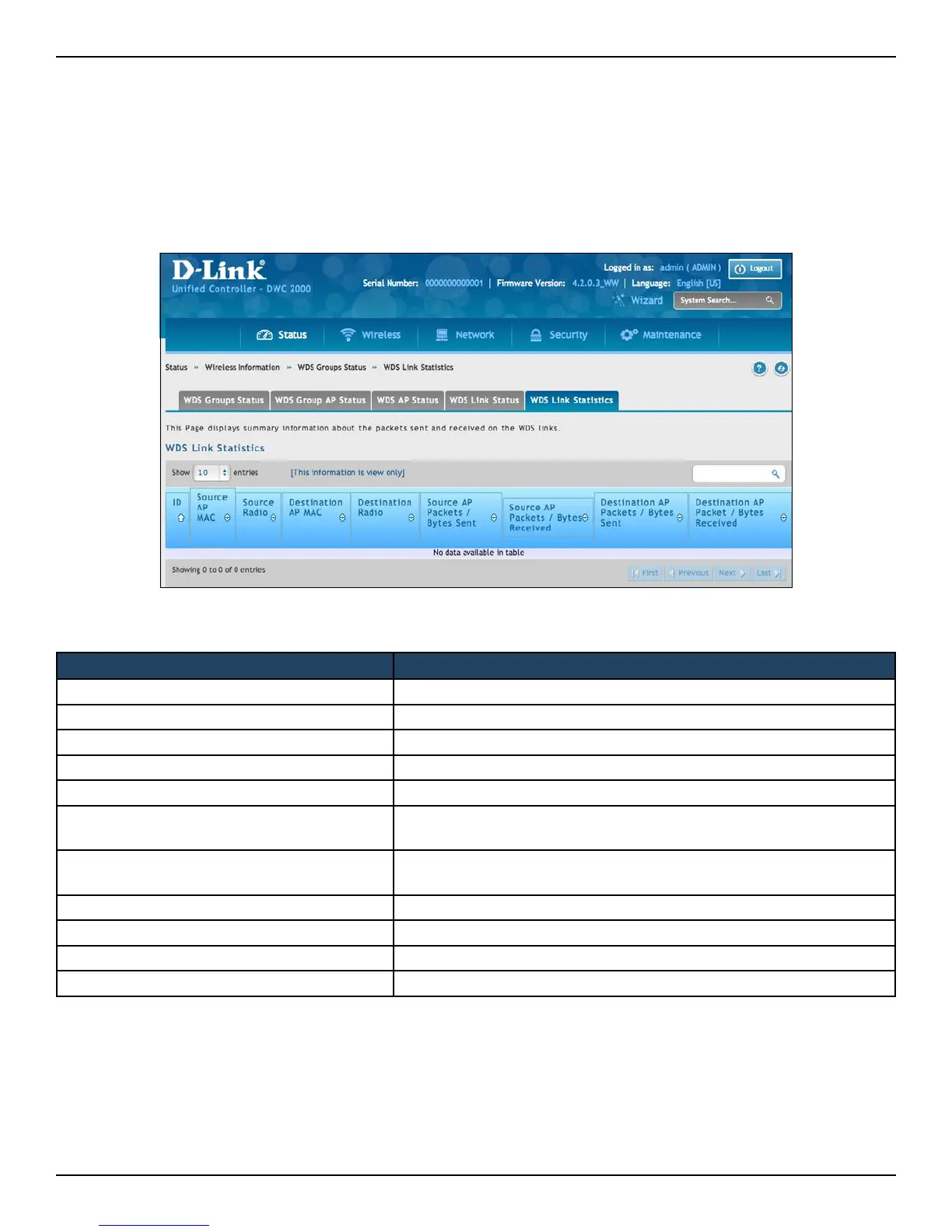

The WDS Group Link Statistics page displays summary information about the packets sent and received on the
WDS links.
Field Description
ID The group number that identies the congured WDS AP group.
Source AP MAC The MAC address of one end-point of the WDS link.
Source AP Radio The radio number of the WDS link endpoint on the source AP.
Destination AP MAC The MAC address of the Source AP in the group.
Destination AP Radio The radio number of the WDS link endpoint on the destination AP.
Source AP End-Point
Indicates whether the AP specied by the destination MAC detected
the AP specied by the source MAC.
Destination AP End-Point
Indicates whether the AP specied by the source MAC detected the AP
specied by the destination MAC.
Source AP Packets/ Bytes Sent Number of packets/bytes sent by the source AP.
Source AP Packets/Bytes Received Number of packets/bytes received by the source AP.
Destination AP Packets/Bytes Sent Number of packets/bytes sent by the destination AP.
Destination AP Packets/Bytes Received Number of packets/bytes received by the destination AP.
Viewing WDS Link Statistics
