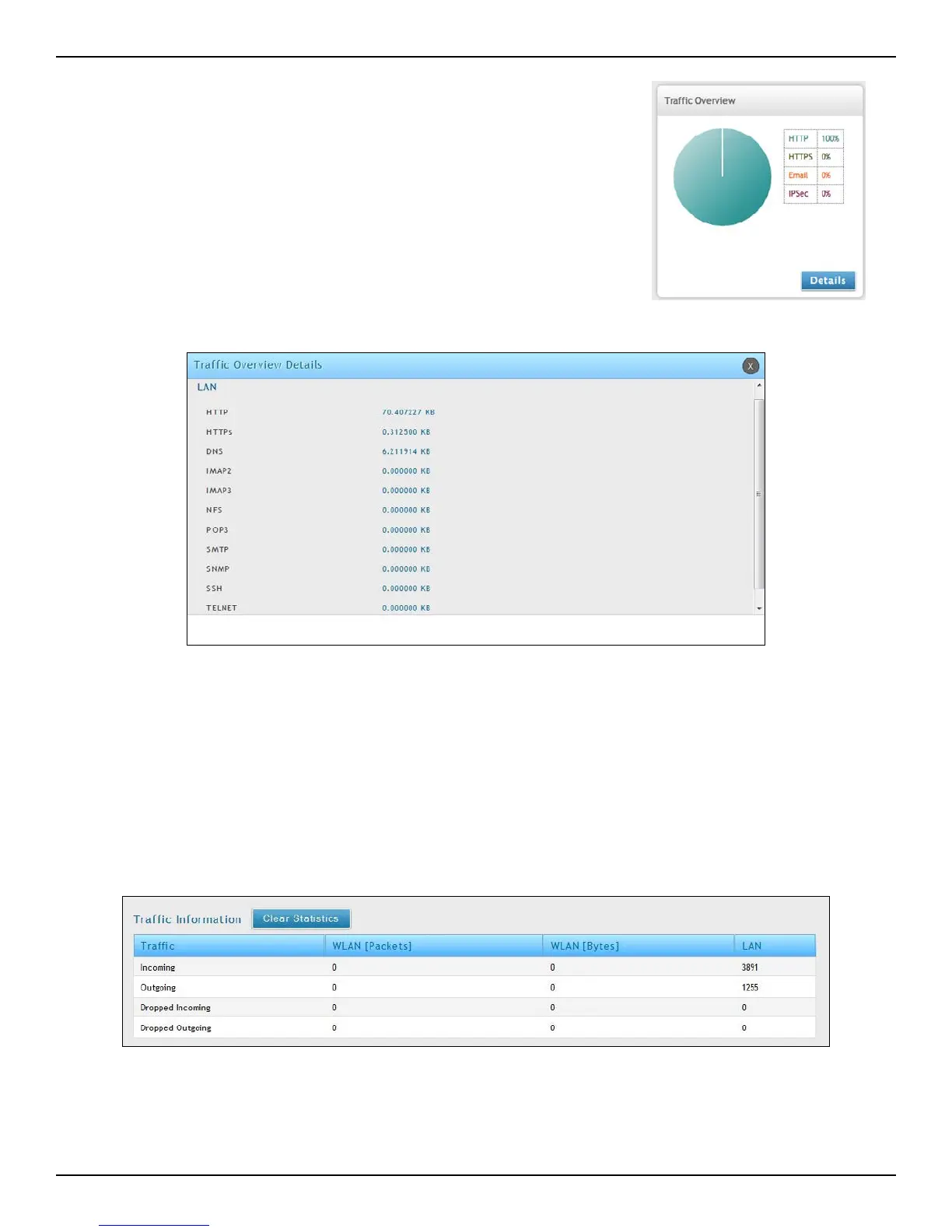

D-Link DWC-2000 User Manual 197
Section 7 - Viewing Status and Statistics
The Trac Information table shows detailed transmit and receive statistics for each physical port. This includes:
Port-specic packet-level information for each interface (LAN and VLANs)
Transmitted and received packets
Cumulating bytes/sec for transmit/receive directions for each interface
If you suspect issues with any of the wired ports, use this table to identify uptime or transmit level issues with the
port. The statistics table has an auto-refresh control for displaying the most current port level data at each page
refresh. The default auto-refresh for this page is 10 seconds. Click Clear Statistics to reset the trac information.
Detail Information
You can review detail information or statistic by click Detail on each
widget.
