OPERATION

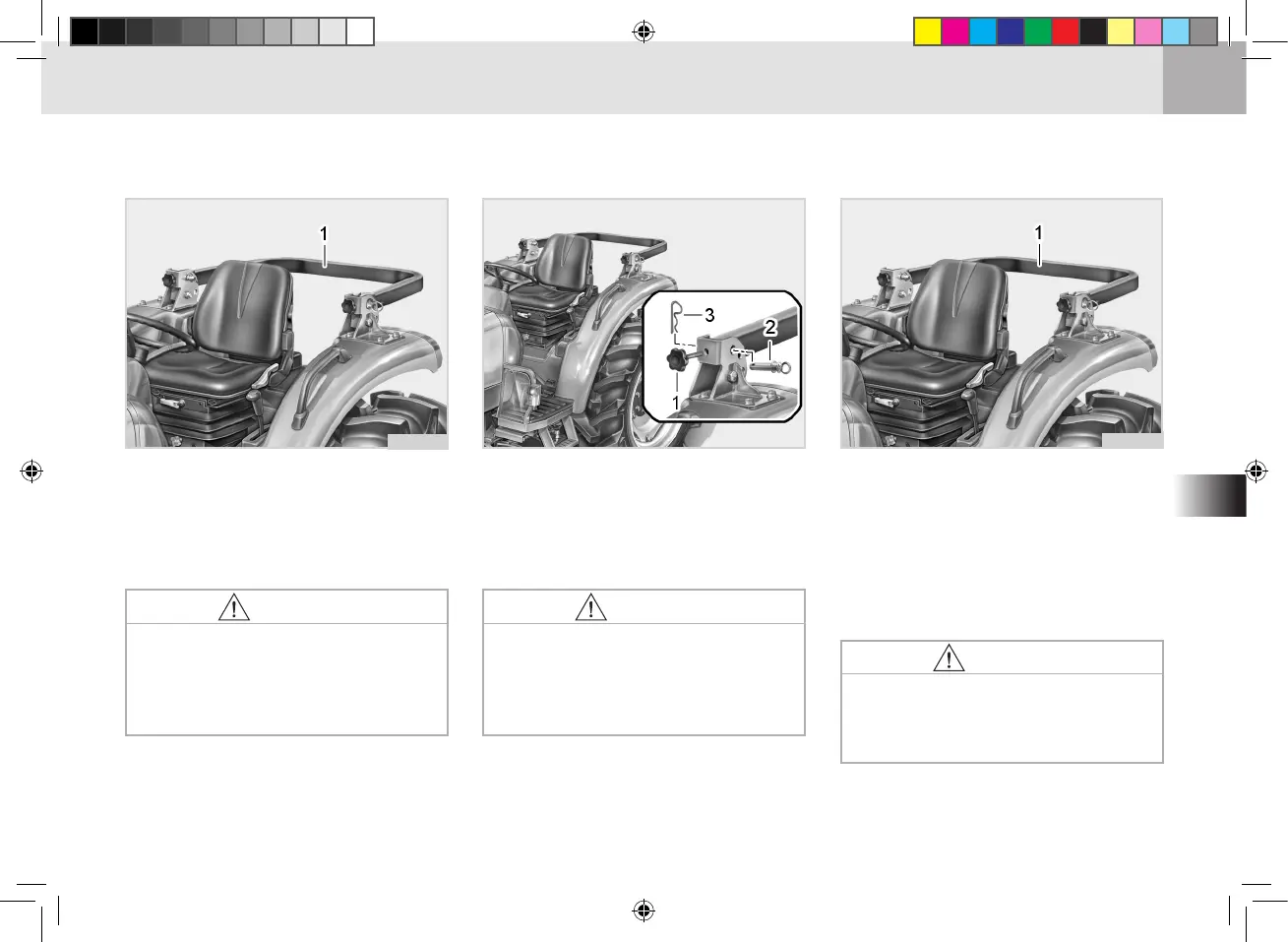

(1) ROPS (1) Grip Bolt (2) Set Pin
(3) Clip Pin
2. Loosen the grip bolt and fold the
ROPS.
3. Align pin holes, insert set pin, and
secure them with the clip pin.
T46O513A
T46O514A
CAUTION
To avoid accidents:
•
Hold the ROPS tightly with
both hands and fold the ROPS
slowly and carefully.
CAUTION
To avoid accidents:
•
Fix the mounting bolt firmly
and secure the frame with the
knock bolt.
(1) ROPS
1. Remove both the grip bolt, clip pin
and set pin.
2. Raise ROPS to the upright posi-
tion.
HOW TO RAISE THE ROPS TO
UPRIGHT POSITION
T46O513A
CAUTION
To avoid accidents:
•
The ROPS must be raised slow-
ly and carefully.
