3-POINT HITCH IMPLEMENT OPERATION

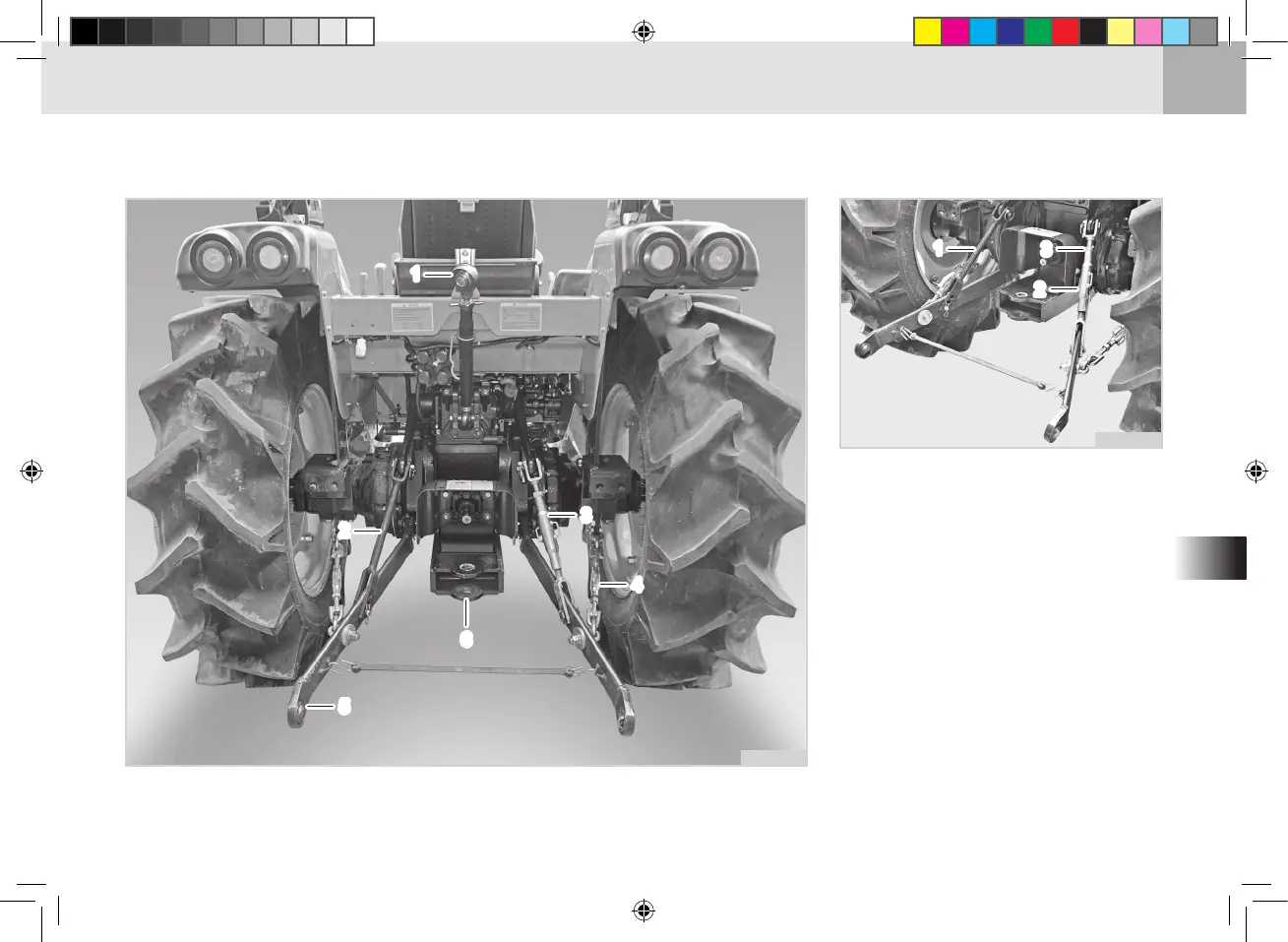

OPERATION TIP FOR 3-POINT HITCH ELEMENTS
(1) Top Link
(2) Crank Lifting Rod
(3) Lifting Rod
(4) Telescopic Stabilizers
(5) Lower Link
(6) Draft Hitch
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
1
2
3
TE1O620A
ADJUSTMENT OF LIFT ROD
(1) Lift Rod
(3) Lock Nut
(2) Turnbuckle
1. Adjust the implement level bal-
anced by turning the turnbuckle.
2. After adjustment, x it with the lock
nut.
