MAINTENANCE CODE

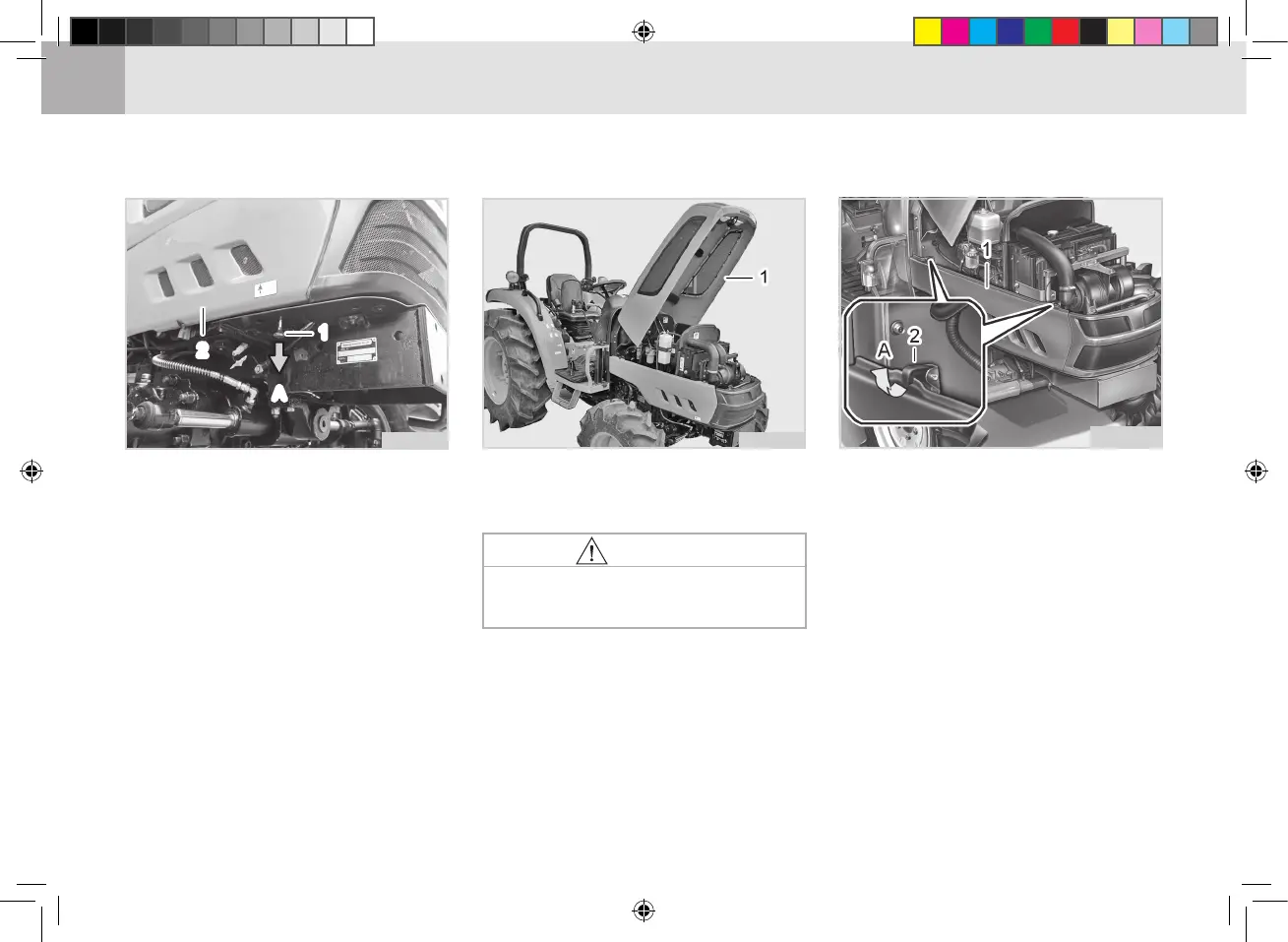

HOW TO OPEN THE HOOD(A)
(1) Opening Knob (2) Hood
(A) Pull
(1) Hood
1. To open the hood, pull the lever on
the lower right side from the hood
to the side with the front section of
the hood pressed down. Then, the
front of the hood is opened.
2. To close the hood, press down the
front section of the hood until it is
locked into its original position.
3. Do not apply excessive force to
the lever to x the hood. The hood
can be damaged.
TE5O702A
•
Never open the hood while the
engine is running.
CAUTION
TE5O701A
OPENING SIDE COVER (B)
H11O603A
(1) Side Cover (2) Hook
(A) Pull
1. The side covers (LH/RH) should
be removed in order to access the
engine components.
2. Open the hood and disassemble
the rubber clips fixed on the left
and right of the side covers.
3. Remove each side cover by pulling
it forward gently while lifting it up.
4. When installing them, align their
pins to the groove on the tractor
body and press them down. Then,
x them with the rubber clips.
