DESCRIPTION OF OPERATING SYSTEM
4
-
35
H11O4D2A

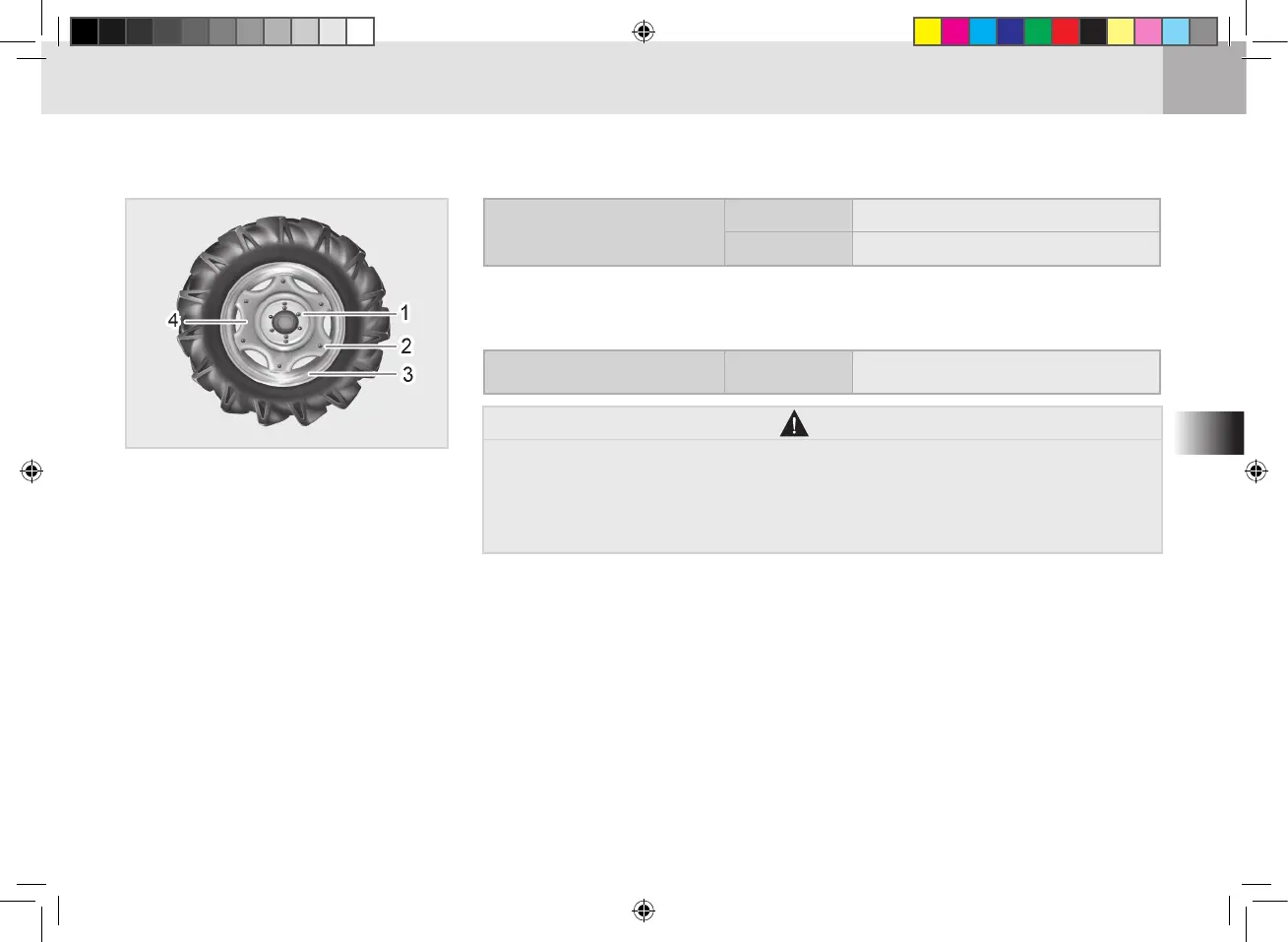

(1) Wheel Nut (2) Rim Bolt
(3) Rim (4) Disc
The front and rear axle tread width
are adjustable by changing the in-
stallation of the tire (together with
rim) to the disk, to suit the type or
condition of work. Ref to “TREAD” in
prior page.
Tightening torque of wheel
bolt and nut
Front 196.1~225.6 N · m (20~23 kgf · m)
Rear 274.6~318.7 N · m (28~32.5 kgf · m)
WHEEL TORQUE AND DIRECTION
FRONT/REAR WHEEL INSTALLATION PATTERN
•
Use tires approved by KIOTI only.
•
Assemble the tire as shown in the gure.
•
Contact your local KIOTI Dealer if it is necessary to change the tire
specication or installation method.
WARNING
FRONT AND REAR WHEEL BOLT AND NUT TORQUE
RIM BOLT AND NUT TORQUE
Tightening torque of rim
bolt and nut
Front & Rear 259.9~304 N · m (26.5~31 kgf · m)
