Daedong EX50-SA - Changing Front Axle Case Oil(N); Adjusting Brake Pedal(O)

EX50-SA / EX55-SA / EX5310-AU / EX5810-AU
7
-
18
1. To drain the used oil, remove the
right and left drain plugs and fill-
ing plug at the front axle case and
drain the oil completely into the oil
pan.
2. After draining, reinstall the drain
plugs.
3. Remove the oil level checking plug
on the left of the front axle.
CHANGING FRONT AXLE CASE OIL(N)
4. Add new oil to the specied level
through the oil ller.
5. Wait at least 15 minutes to allow
the oil flow to the bevel case be-
fore checking the oil level.
6. Add oil as necessary and tighten
the oil filler plugs and oil level
checking plug.

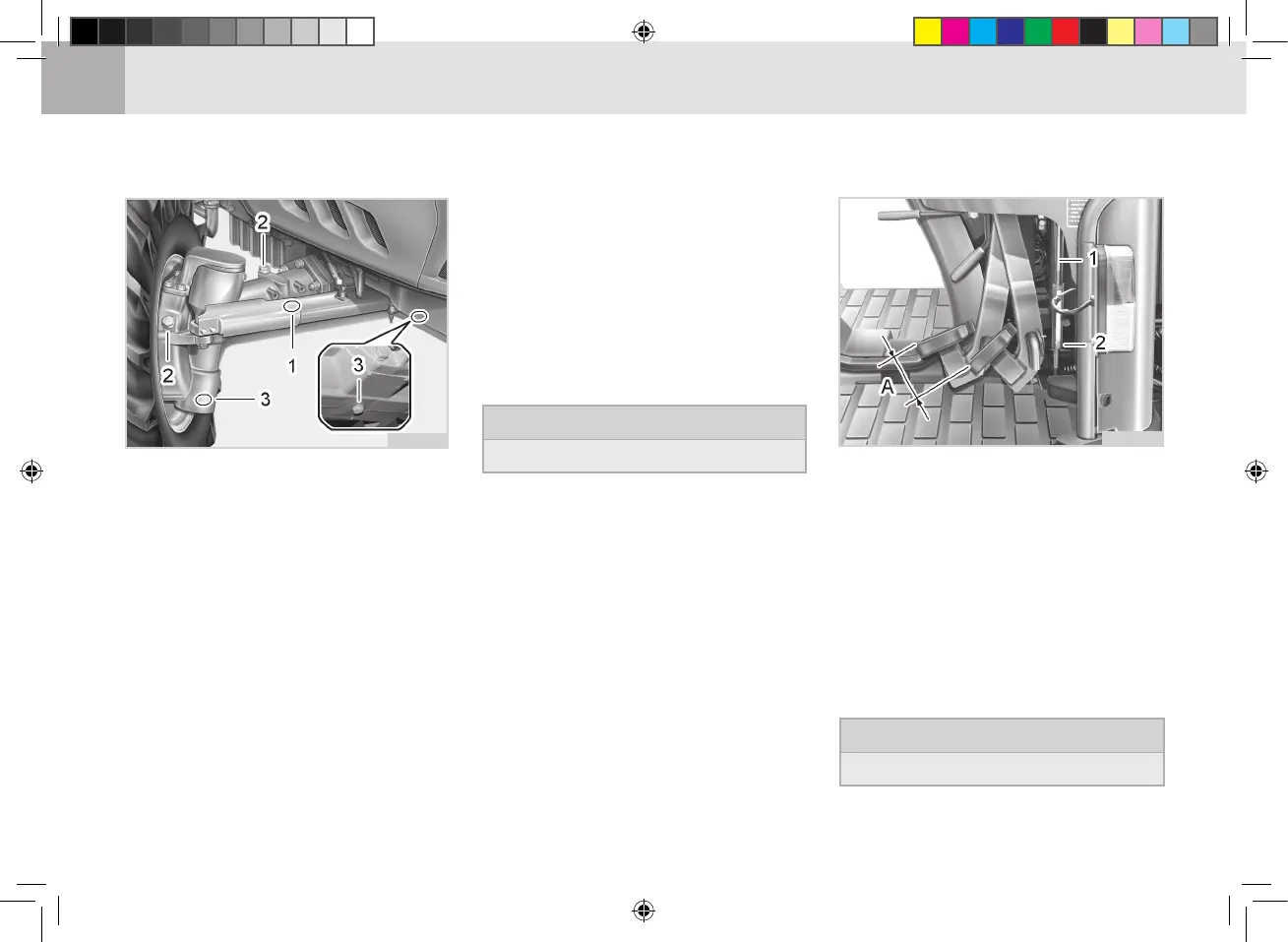

(1) Check Plug (2) Filling Plug
(3) Drain Plug
Front Axle Oil Capacity
7.0 L (1.85 U.S.gal.)
T46OA19A
(1) Brake Pedal (2) Push Rod
(3) Lock Nut (4) Master Cylinder
(A) Free Play
ADJUSTING BRAKE PEDAL(O)
BRAKE PEDAL FREE PLAY
1. Slightly depress the brake pedal
and measure its free play.
2. If the free play is out of the speci-
fication, adjust the length of the
push rod.
3. Tighten the lock nut rmly after ad-
justment.
Pedal Free Travel (A)
20~30 mm (0.787 ~ 1.181 in.)
T46OA12A
