Daedong EX50-SA - Combination Switch

4
DESCRIPTION OF OPERATING SYSTEM
4
-
7
•
The ignition key is not directional
and can be inserted in any direc-
tion. Also, be careful not to leave
the tractor unattended as the
same key is used for all
KIOTI
tractors. It can be stolen.
•
The horn, turn signal lamp, and
hazard lamp can be operated
without the key inserted.
NOTE
•
Stop the engine immediately
if the oil pressure warning
lamp does not go off after the
engine is started. The engine
may be severely damaged.
•
If the battery charge warning
lamp does not go off after the
engine is started, check the
electrical systems, such as
the alternator, for damage.
Continuing to use the engine
under this condition can dis-
charge the battery or damage
other electrical devices.
CAUTION

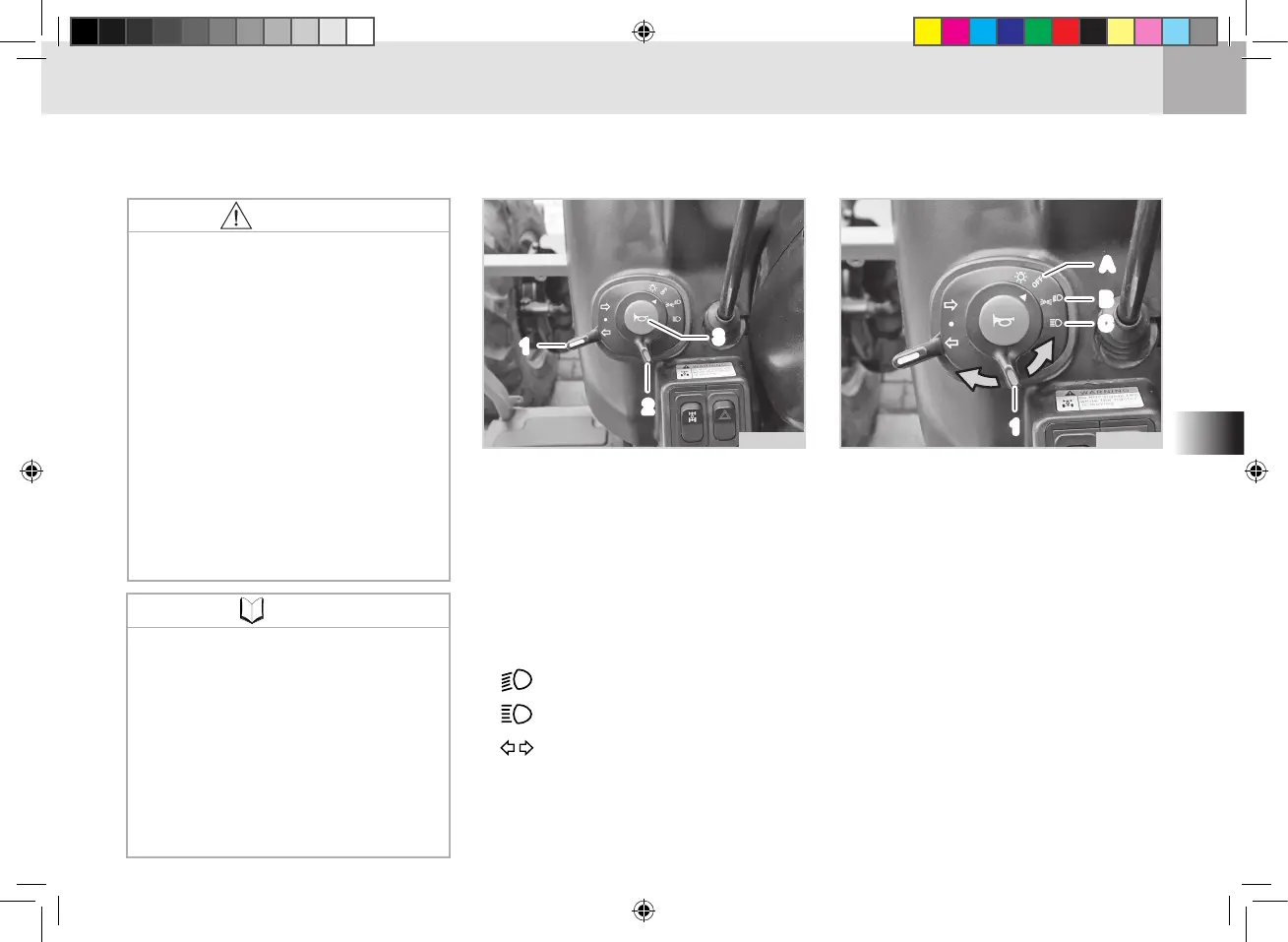

COMBINATION SWITCH
The combination switch consists of
the head light, turn signal light, and
horn switches. Its function by its po-
sition is as follows:
(1) Turn Signal Light Switch
(2) Head Light Switch
(3) Horn Switch
OFF : Head light and tail light OFF
: Low beam and tail light ON
: High beam and tail light ON
: Turn signal light ON
2
3
2
111
3
TE5O401A
(1) Head Light Switch
(A) “OFF” (B) Low Beam “ON”
(C) High Beam “ON”
HEAD LIGHT SWITCH
The head light switch can be operat-
ed only while the key switch is turned
to the “ON” position. Turning the head
light switch clockwise one click will
illuminate the low beam head lights
while turning it one more click will illu-
minate the high beam head lights.
111
A
B
C
A
B
C
TE5O402A
