KEY SWITCH
(A)
The position "A" indicates the
"manual preheat". This position is a
self-return type, so the key should
be held there while pre-heating. The
pre-heating indication lamp on the
dash board will turn on at the same
time.
Pre-heating more than 30
seconds consecutively can re-
duce the preheat system’s life.
•
The pre-heating operation will
automatically be activated in this
position "C" (ON).
The automatic
preheat operation is indicated
by the glow plug indicator. Make
sure to preheat the engine un-
til the glow plug indicator goes
off (approx. 9 seconds) in cold
weather.
NOTE
(B)
When the key switch is in position
"B", the engine and all electrical
devices in the vehicle are turned
off.
However flasher lights and turn
signal lights can be operated along
with their indication lamps on the
dash board.
(C)
The position "C" indicates the "ON"
position.
As soon as the key switch
is turned to this position, the oil
pressure warning lamp and battery
charge warning lamp comes on
(These turn off after the engine is
started).
(D)
The position "E" indicates "Start".
In order to start the engine, de-
press the clutch pedal and turn the
PTO switch off.
As soon as the engine is started,
release the key then the key will
return to the position "C".

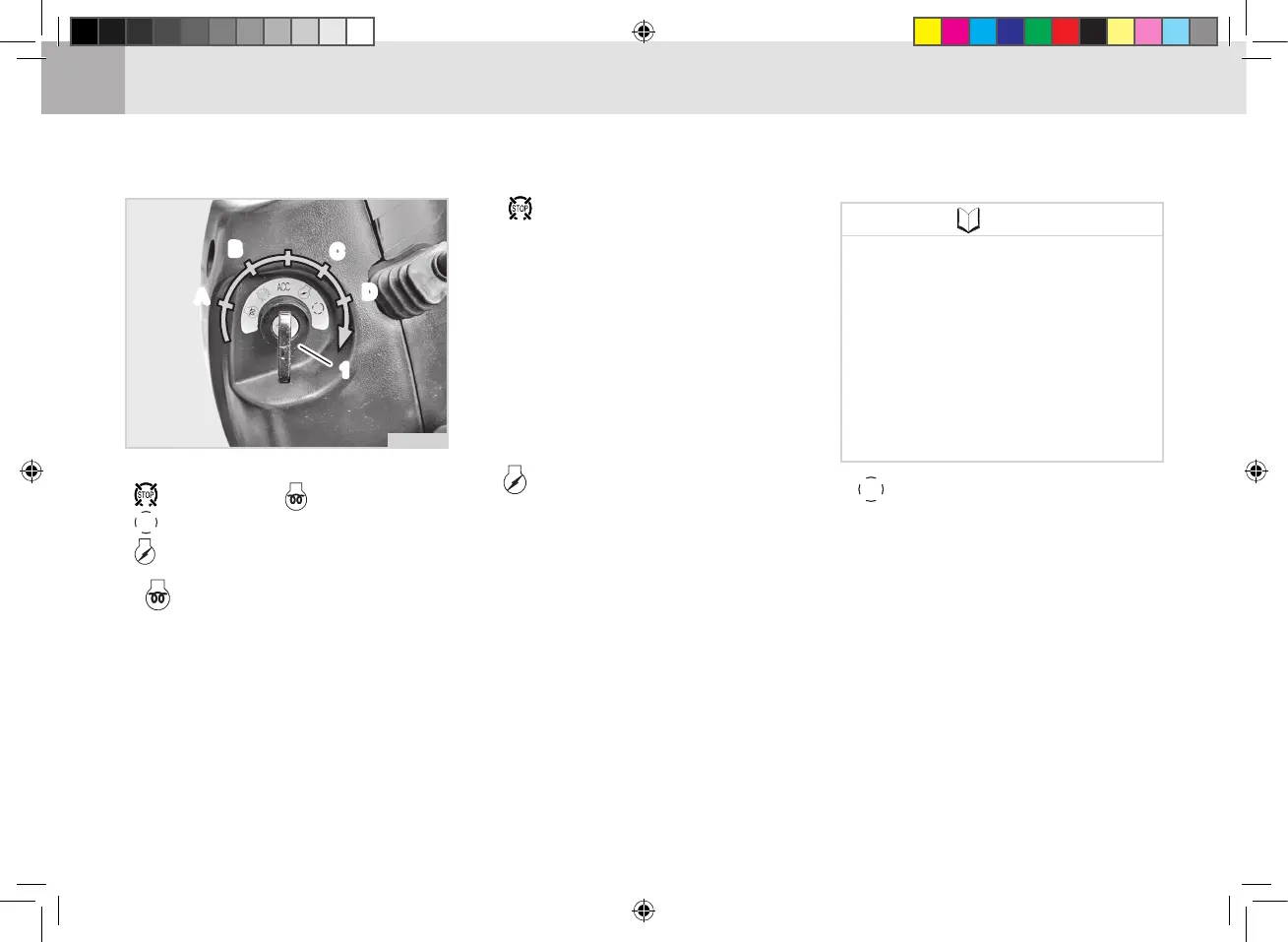

(1) Key Switch
( ) Off ( ) Manual Pre-Heat
( ) Start
( ) On(Auto Pre-Heat)
