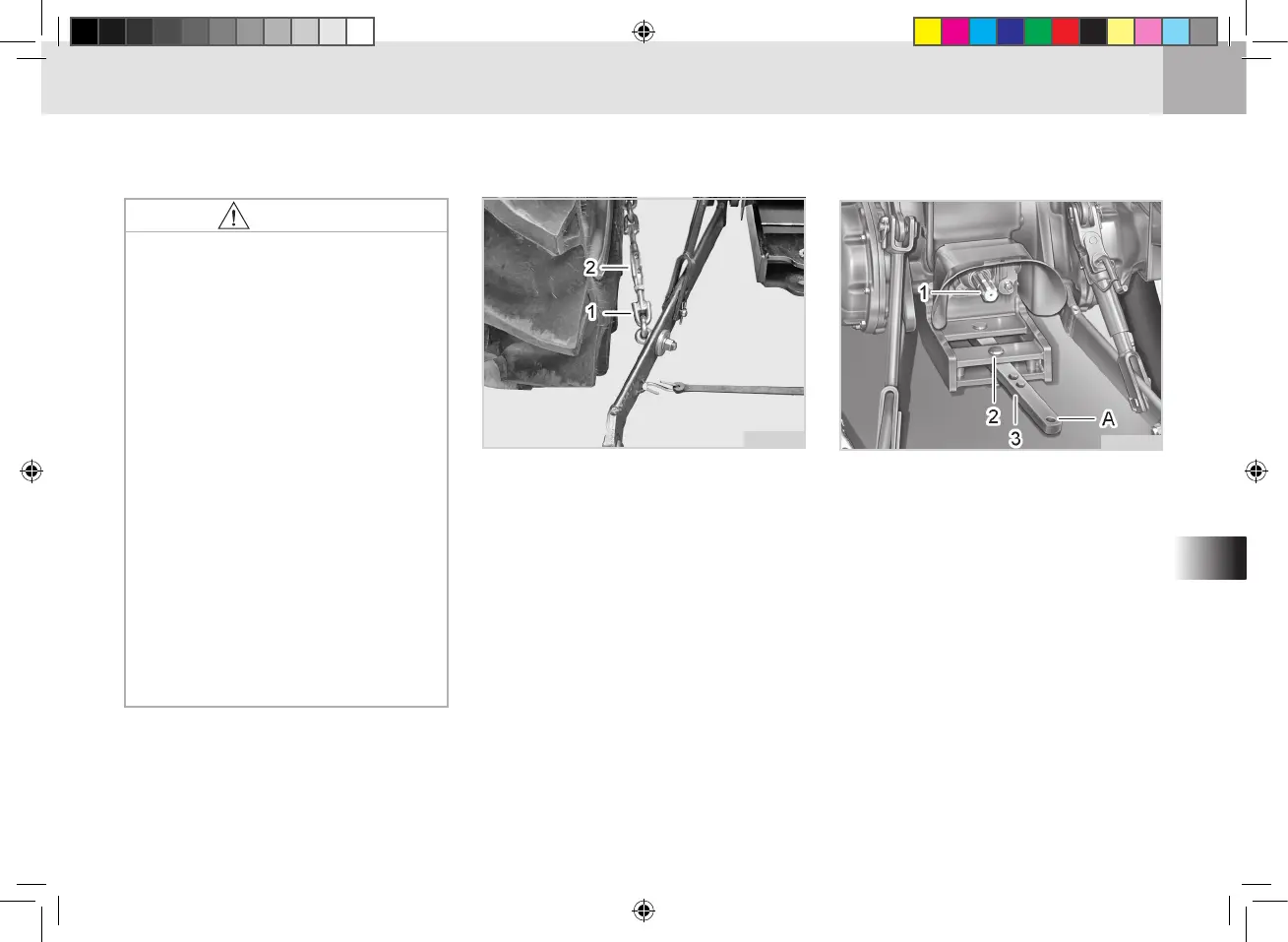

3-POINT HITCH IMPLEMENT OPERATION
ADJUSTMENT OF STABILIZER
(1) Pin (2) Telescopic Stabilizers
Adjust the telescopic stabilizers to
control horizontal sway of the imple-
ment. It is also used to set the im-
plement on the back of the tractor in
center.
•
A plate describing how to at-
tach the implement is placed
on the standard implement of
our company.
•
When you are attaching an
implement not requiring any
traction, mount the assem-
bling spot of the top link into
the hole A.
•
When you are attaching an
implement (like plow) requir-
ing some traction, mount the
assembling spot of the top
link into the hole B, C.
•
When driving with an imple-
ment attached, make sure to
install the top link to the hole
A or B or put the draft control
to the "Deep" position.
CAUTION
T46O603A
DRAFT HITCH AND TRAILER
(1) PTO Shaft (2) Drawbar Pin
(3) Drawbar (A) Holes
The draw bar is used to pull an im-
plement, such as a trailer. This trac-
tor is equipped with a ne draw bar.
Make sure to check the max. towing
weight of the trailer and max. vertical
load that can be applied to the draw
bar.
• Max. trailer weight (trailer + loaded
weight) = 3,500 kg (7,716 lbs)
• Vertical load of hitch (draw-bar) =
650 kg (1,433 lbs)
T46O604A
