Daedong EX50-SA - Lubricating Grease Locations(P)

EX50-SA / EX55-SA / EX5310-AU / EX5810-AU
7
-
20
Apply high-quality multi-purpose grease onto the positions in the gure at every 50 hours of operation or whenever nec-
essary and record the operating time when applying it.

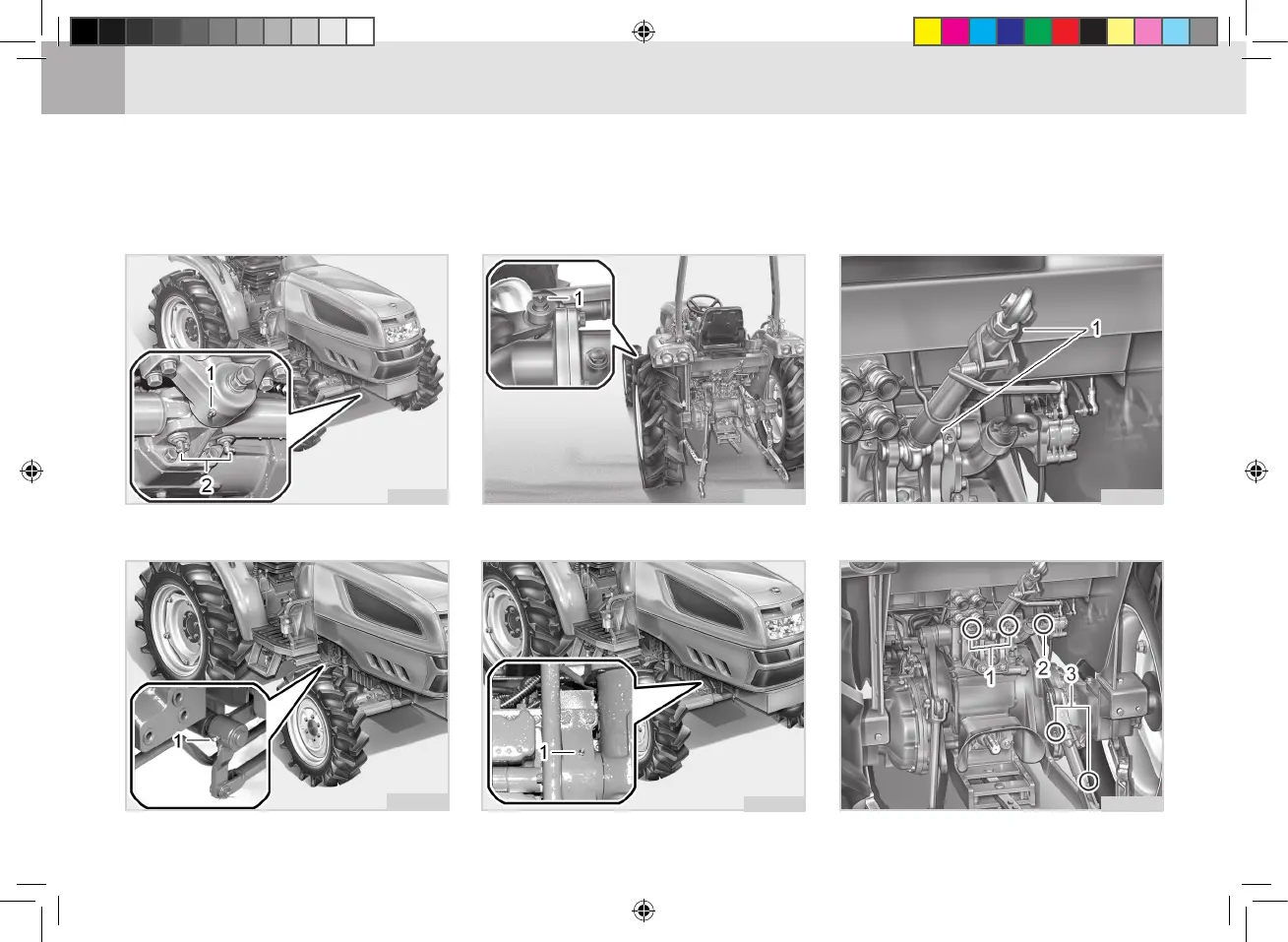

LUBRICATING GREASE LOCATIONS(P)
(1) Grease Fitting (Top Link Bracket)(1) Grease Fitting (Front bracket axle pivot)
(2) Grease Fitting (Power steering cylinder)(RH,LH)
(1) Grease Fitting (Brake Lever RH, LH)
(1) Grease Fitting (Power steering cylinder)
(RH, LH)
(1) Grease Fitting(Top Link Holder)
(2) Grease Fitting (Hydraulic Cylinder Support)
(3) Grease Fitting (Lift Rod)
(1) Grease Fitting (Rear Bracket Axle Pivot)
T46OA20A T46OA21A
T46OA24A
T46OA22A
T46OA25A
T46OA23A
