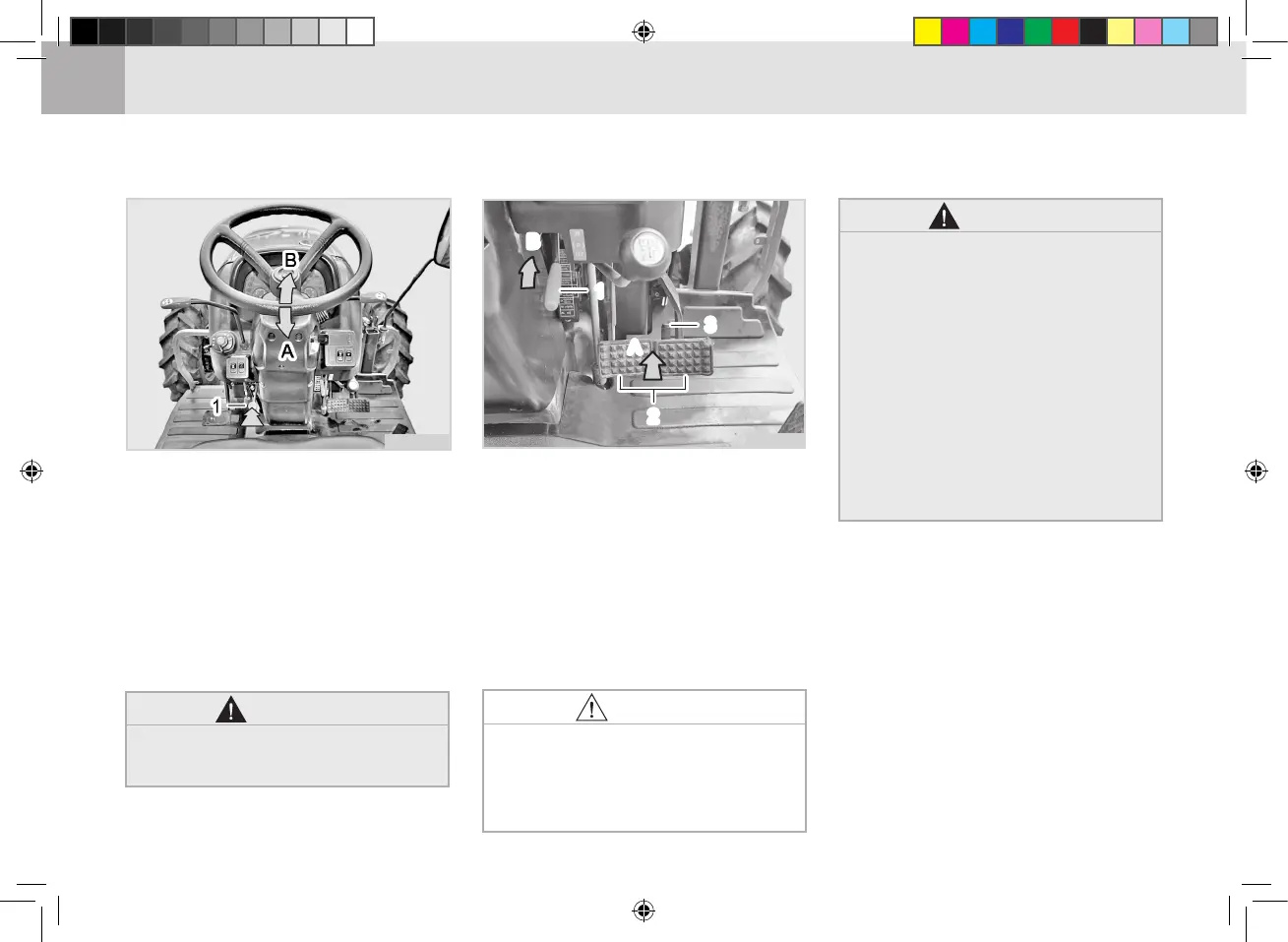

STEERING WHEEL ADJUSTMENT
(1) Steering Wheel Tilt Pedal
(A) Lowering (B) Lifting
The angle of the steering wheel can
be adjusted for the driver’s comfort.
Hold the steering wheel with both
hands, depress the tilt pedal lightly
and then adjust the position of the
steering wheel as desired.
TE5O411A
•
Do not adjust the tilt steering
while driving.
WARNING
PARKING BRAKE LEVER
To stop the tractor, depress the brake
pedal and pull the lever up to apply
the parking brake.
The parking bake is automatically
released by depressing and then re-
leasing the brake pedal.
•
If the vehicle is driven with the
parking brake partially or com-
pletely engaged, it may cause
early wear of the brake disc.
CAUTION
(1) Parking Brake Lever (2) Brake Pedals
(3) Interlock (4) Block
(A) Depressing (B) Push Down
TE5O418A
To avoid possible injury, death
or loss of property from a ma-
chine runaway
:
•
With the engine off, the tractor
may move unexpectedly re-
gardless of the gear shift posi-
tion.
•
Before leaving the tractor,
rmly apply the parking brake
to prevent machine runaway.
※
Only H-shuttle model.
WARNING
