4
DESCRIPTION OF OPERATING SYSTEM
4
-
31
Pressure Returning
Basically a remote valve, which is a
detent type, is attached.
In a normal range you could lift up
and down an implement with shifting
and holding the lever.
When you let go your hold, the lever
would return to neutral automatically.
However, in case you shift the lever
in a detent range, hydraulic pressure
is still on. So, if you want to release it
out of the detent range, you need to
shift it again to the neutral.
Port Push Pull
lever1
A In Out
B Out In
Lever2
C In Out
D Out In
Port Coupler Size
A, B, C, D PT 1/2”
•
Do not hold the lever in the
“pull” or “push” position
once the remote cylinder has
reached the end of the stroke,
as this will cause oil to flow
through the relief valve.
•
To enlarge the front loader
output, when using the hy-
draulic system of the tractor,
do not operate the boom and
the bucket cylinder simultane-
ously
IMPORTANT
TE5O423A

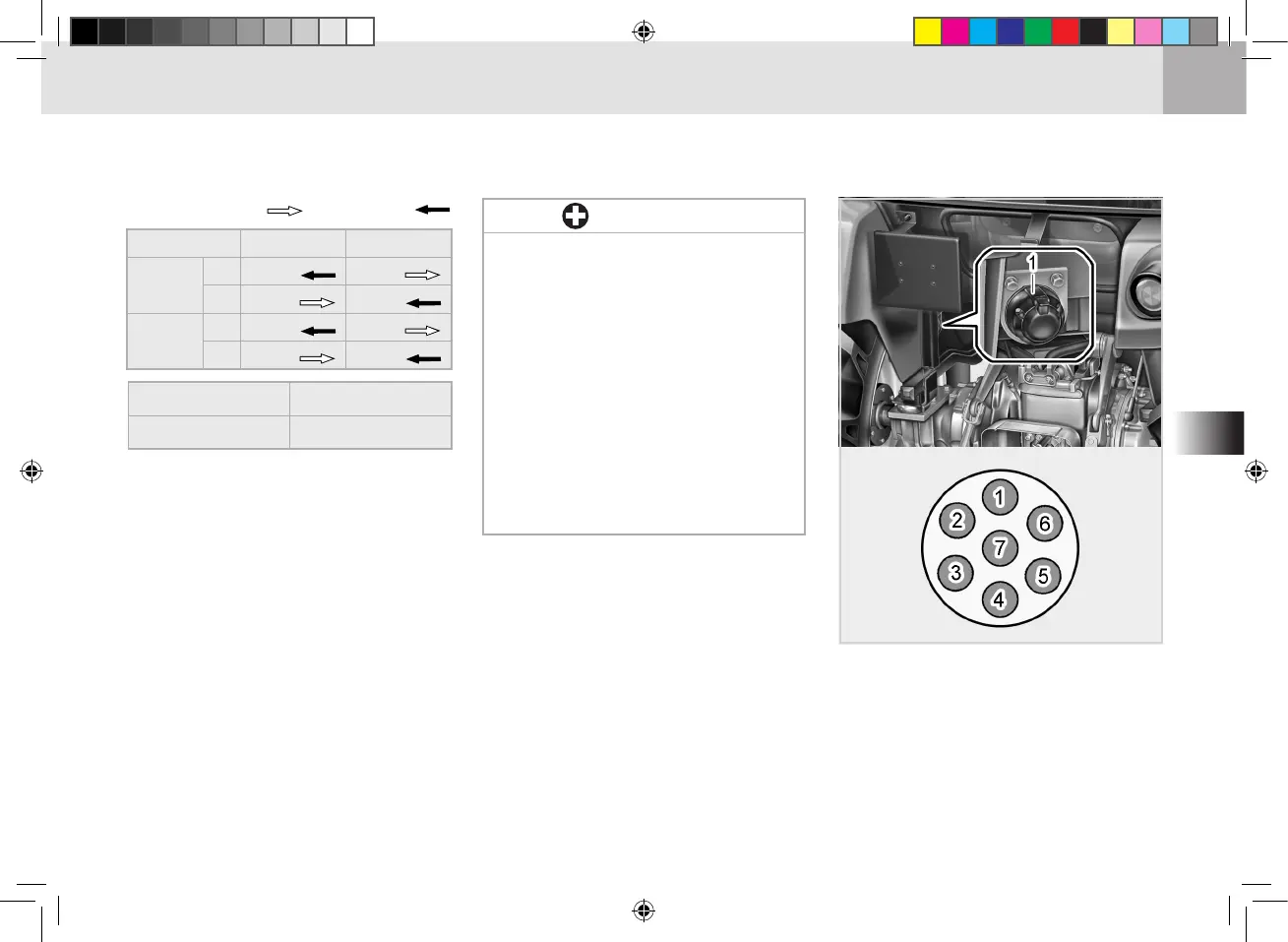

7-PIN POWER OUTPUT SOCKET
(OPTION)
The 7-pin socket is installed on the
rear left side of the tractor.
This supplies power to the brake
lamps, turn signal lamps, and posi-
tion lamps of the trailer.
(1) Power Connector
TE150 (EX50, EX55)-���-04.indd 31 2019-03-19 �� 6:58:34
