ADJUSTING TOE-IN(Y)
ADJUSTING PROCEDURE
T46OA36A

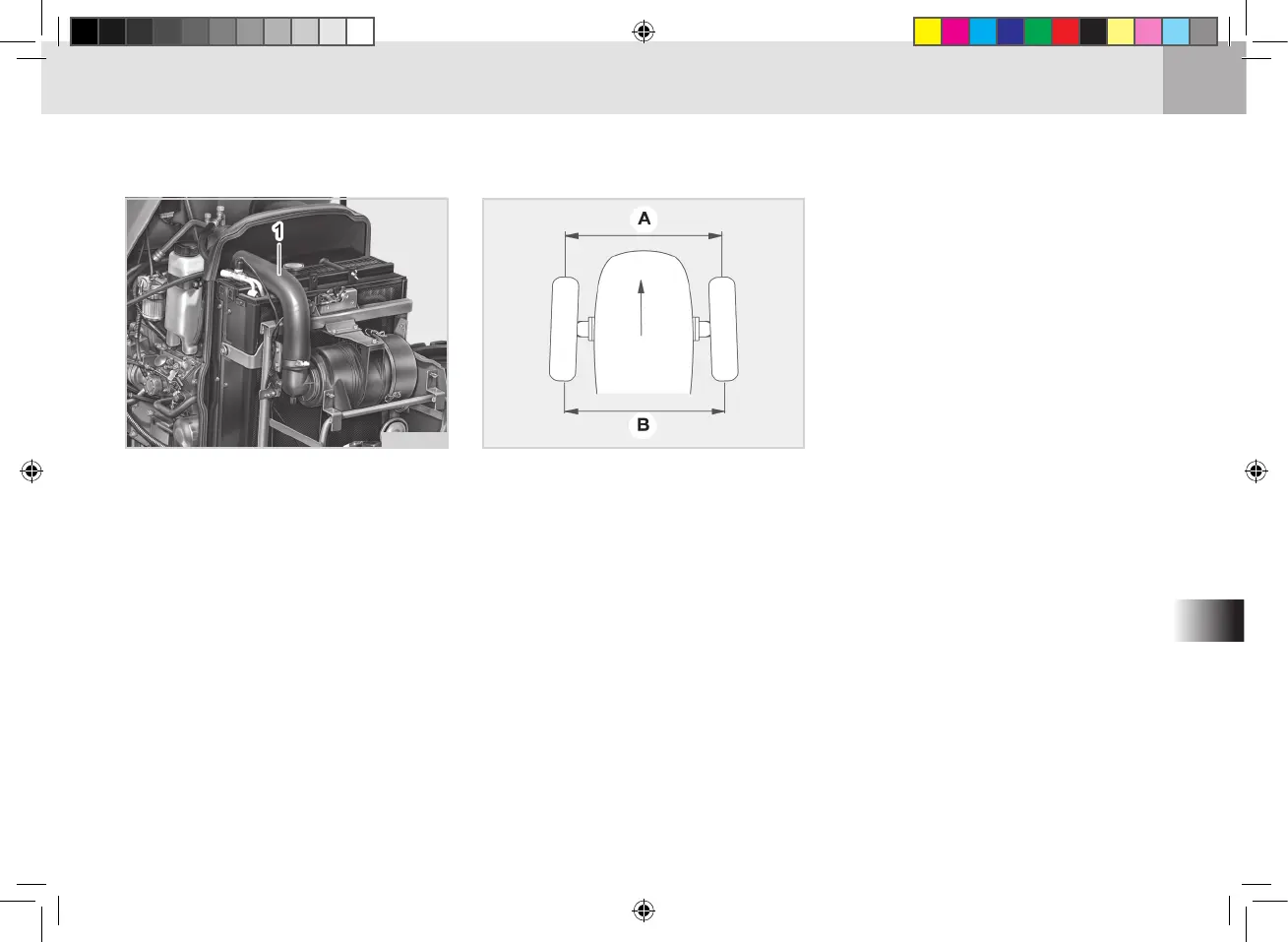

(A) Wheel - to - wheel distance at front
(B) Wheel - to - wheel distance at rear
1. Park tractor on a at place
2. Turn steering wheel so front
wheels are pointed straight ahead.
3. Lower the implement, lock the
parking brake and stop the engine.
4. Measure distance between tire
beads (center) at front of tire and
hub height.
5. Measure distance between tire
beads at the rear of tire and hub
height.
6. Front distance should be 0.08~0.31
in. (2~8mm) less than rear dis-
tance. If not, adjust ball joint length
CHECKING INTAKE AIR LINE (X)
H11O634A
(1) Air Line Hose
1. If the hose clamps are loose, tight-
en clamps securely.
2. If the hoses and clamps are dam-
aged, you must replace them at
once. Failure to do so could lead to
engine damage.
