Daedong EX50-SA - Adjusting Clutch Pedal(U1); Adjusting Fan Belt Tension(V)

EX50-SA / EX55-SA / EX5310-AU / EX5810-AU
7
-
24
ADJUSTING CLUTCH PEDAL(U1)
1. Stop the engine and remove the
key.
2. Slightly depress the clutch pedal
and measure free travel at top of
pedal stroke.
3. If adjustment is needed, loosen the
lock nut, remove the clevis pin and
adjust the rod length within accept-
able limits.
4. Retighten the lock nut and replace
the clevis pin.

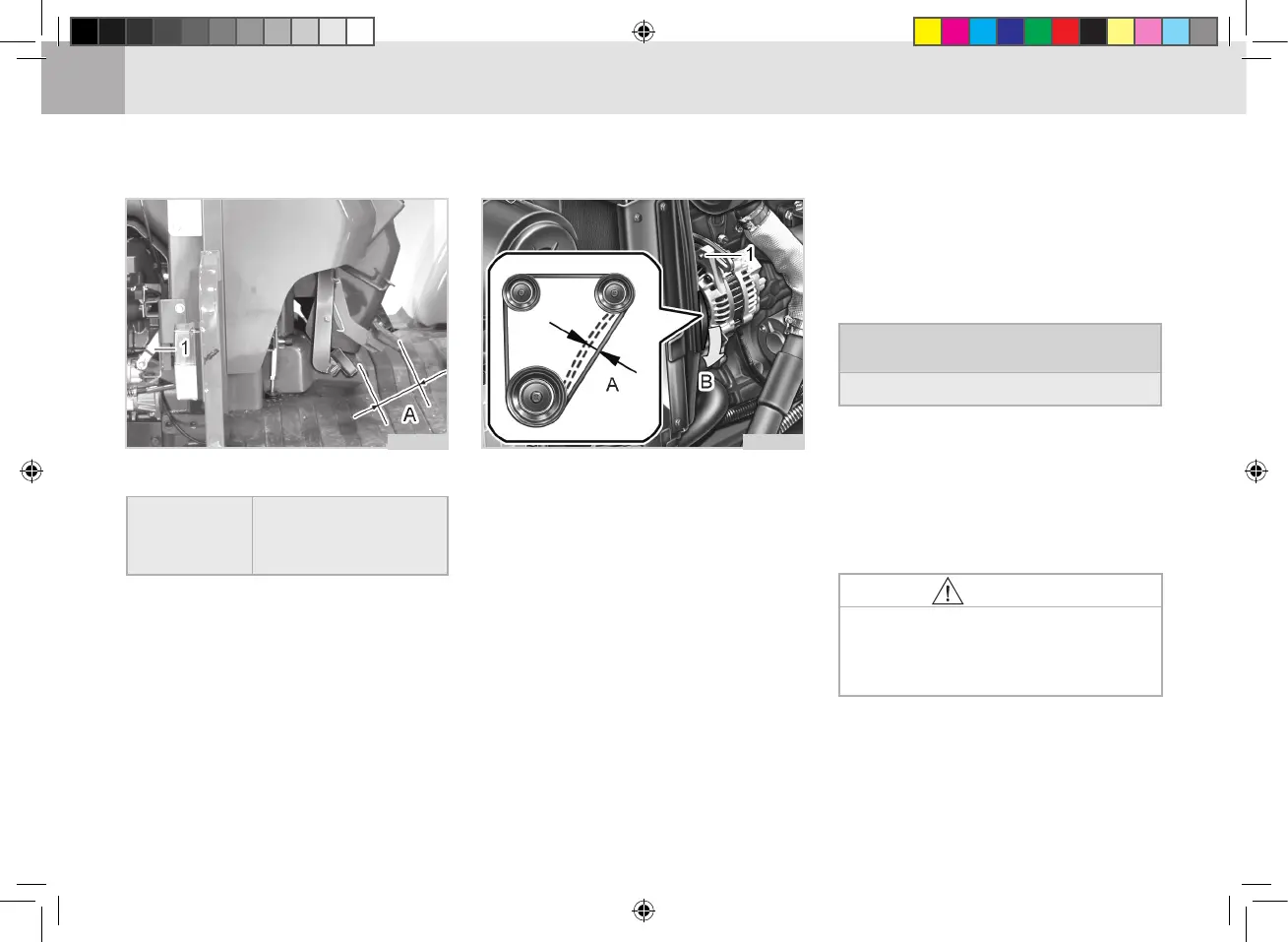

(1) Clutch Rod (A) Free Travel
T46OA30A
ADJUSTING FAN BELT TENSION(V)
In order to extend the fan belt’s life-
time, the tension of the belt should
be correctly adjusted if it slips. The
belt tension should be inspected
regularly according to the following
procedure :
1. Stop the engine and apply the
parking brake.
2. Open the hood.
3. Press the middle of the belt be-
tween the fan drive pulley and
crankshaft pulley with a force of
110 ~ 132 lbs.(50 ~ 60 Kgf) to
check the fan belt tension (A).
4. If the tension is insufficient, turn
the tension adjusting bolt clock-
wise to adjust the tension to the
standard tension range.
5. Replace the fan belt if it is dam-
aged, cracked or worn.
To avoid personal injury :
•
Be sure to stop the engine be-
fore checking belt tension.
CAUTION
Belt deection for proper fan belt
tension (A)
0.19 in. (5 mm)
(1) Bolt
(A) Check the Belt Tension
(B) To Tighten
T46OA33A
Proper clutch
pedal free
travel (A)
20 ~ 30 mm
(0.8 ~ 1.2 in.)
on the pedal
