EX50-SA / EX55-SA / EX5310-AU / EX5810-AU

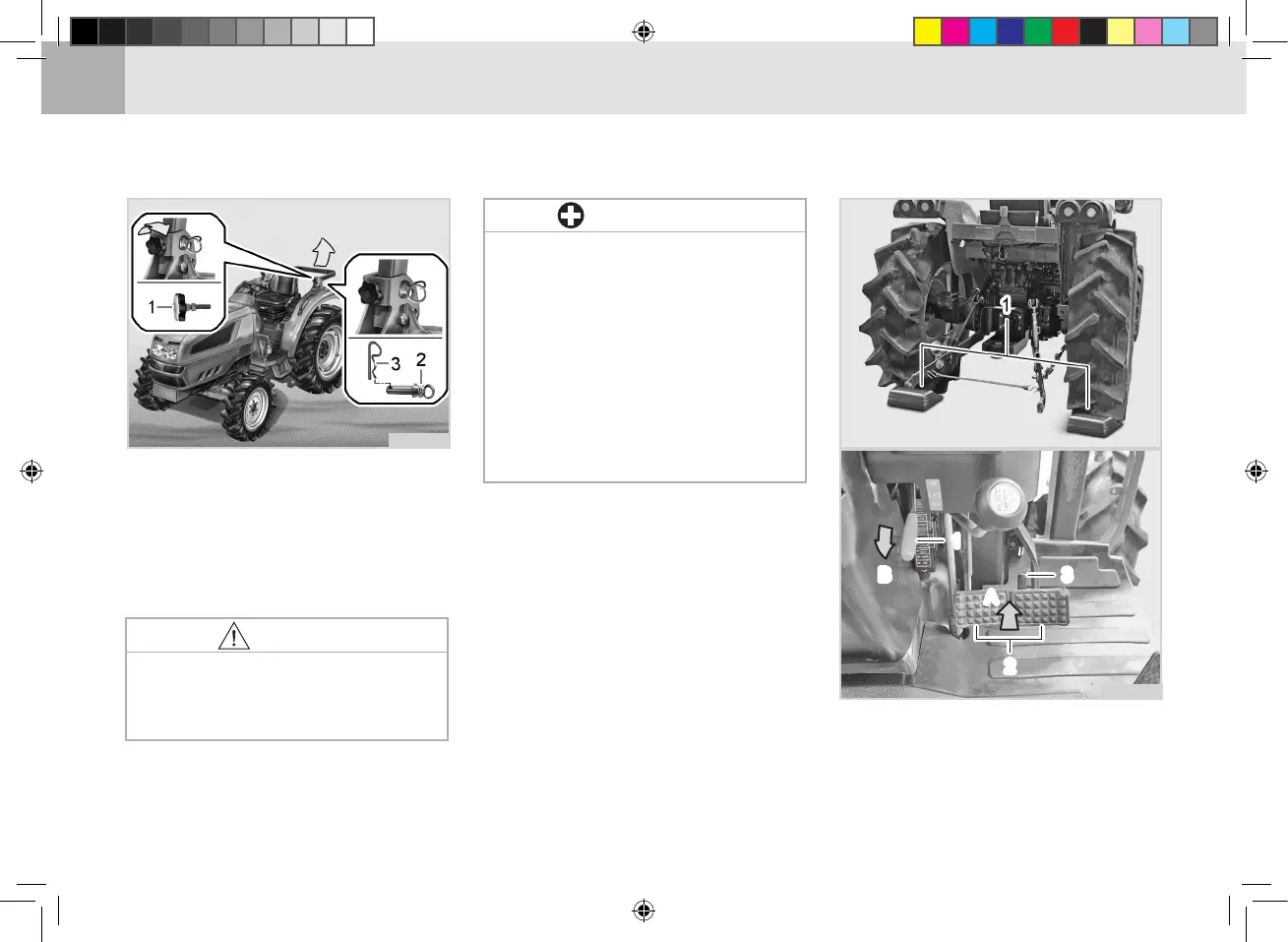

(1) Grip Bolt (2) Set Pin
(3) Clip Pin
3. Align pin holes, insert set pin and
secure them with the clip pin.
4. Fix the ROPS with the grip bolt.
T46O516A
CAUTION
To avoid accidents:
•
Make sure that pins are proper-
ly installed and secured.
PARKING
IMPORTANT
•
ROPS (Roll Over Protective
Structure), sun canopy or
cabin are not a FOPS (Falling
Object Protective Structure).
It never can protect the riders
against falling objects. Avoid
driving the vehicle into a dan-
gerous area such as falling
rocks zone. Otherwise, it may
lead to a serious injury.
(1) Parking Brake Lever (2) Brake Pedals
(3) Interlock (4) Block
(A) Depressing (B) Push Down
22
111
33
A
B
A
B
TE5O419A
