Daedong EX50-SA - Main Shift Lever; Range Gear Shift Lever

EX50-SA / EX55-SA / EX5310-AU / EX5810-AU
4
-
20
Four speeds can be selected by
moving this main shift lever in "H"
shaped path. You can shift into this
lever from the 1st to 4th gears even
when the tractor body is moving by
disengaging the clutch during driving
as these gears are synchromeshed.
In total, 12 forward driving speeds
and 12 reverse driving speeds are
provided by combination of the main
shift lever (4 speeds), range shift le-
ver (3 speeds), shuttle shift lever.

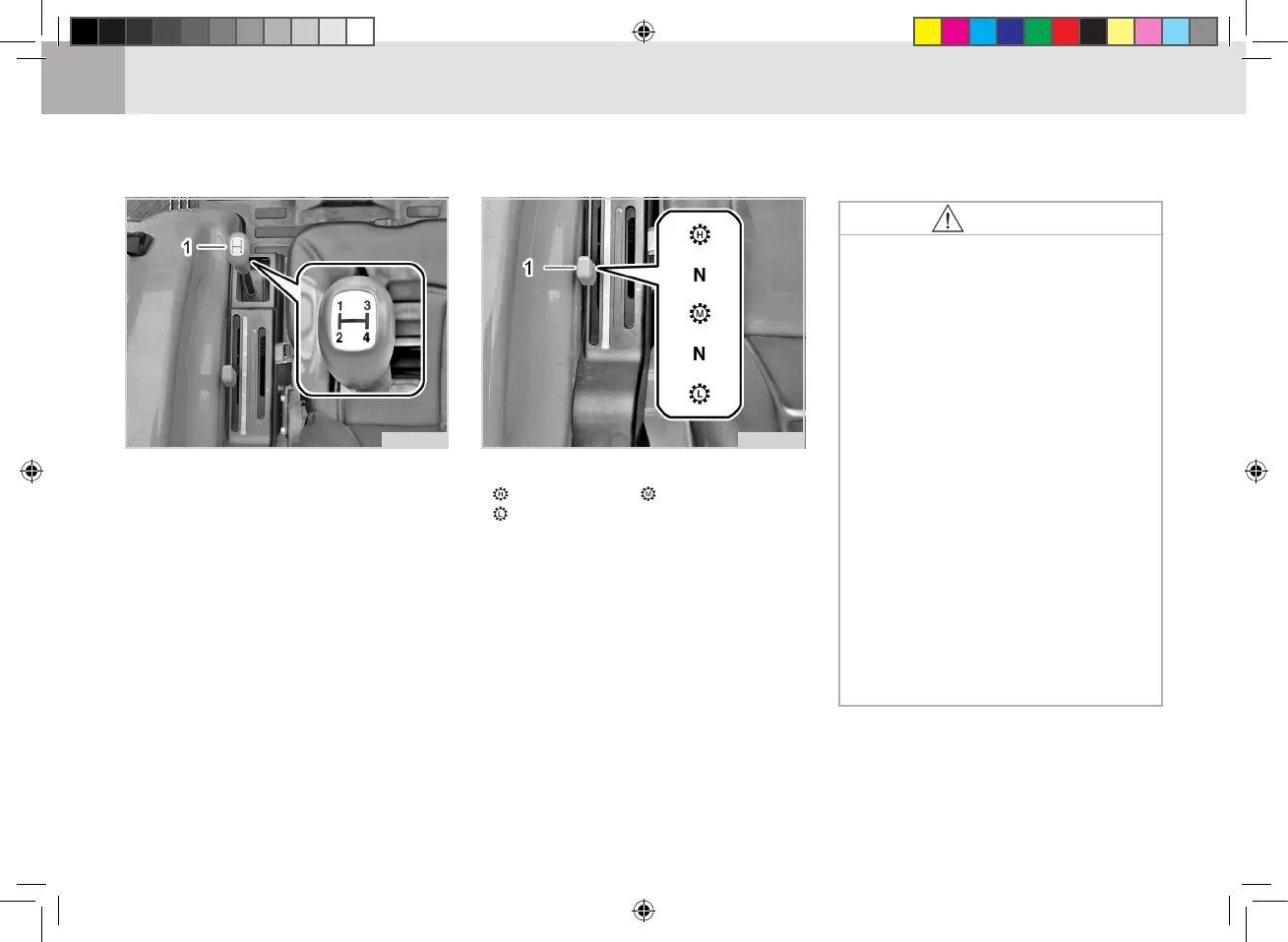

(1) Main Shift Lever
MAIN SHIFT LEVER
TE5O407A TE5O408A
High, mid and low speeds can be se-
lected by the range shift lever.
Follow the instruction below if a prob-
lem occurs during shifting this lever:
1. Put the range shift lever into the
neutral position.
2. Depress the pedal slightly to pre-
vent the gears in the transmission
from rotating.
3. Shift the range shift lever into the
desired position with the brake
pedal and front/rear driving pedals
depressed.
RANGE GEAR SHIFT LEVER
•
Make sure to shift the range
gear shift lever with the clutch
pedal depressed and the trac-
tor stationary (Manual Type).
•
Never put the range shift lever
into the high speed position
during driving backward as it
is dangerous to drive at a high
speed.
•
The tractor is not braked by
depressing the brake pedal
without depressing the clutch
pedal at a low speed as rota-
tional force of the axle has a
major effect at a low speed.
Therefore, disengage the
clutch before depressing the
brake pedal to stop the tractor.
(Manual Type)
CAUTION
(1) Range Shift Lever
( ) High Speed ( ) Mid Speed
( ) Low Speed (
N
) Neutral
